AFE48-AT 930E-2 S/N A30122-A30127 & A30130 BARRICK GOLDSTRIKE

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	GE0174	SWITCH, TOGGLE	1
?	GE0214	CAP, LENS - CLEAR	2
?	GE0177	BOARD, WIRE - PRINTED	2
?	GE0178	MODULE, 5-LED	1
?	GE0176	SWITCH, TOGGLE	2
?	GE0174	SWITCH, TOGGLE	2
?	GE0146	CAPACITOR	1
?	GE0426	INVERTER - (AUX BLOWER)	1
?	GE0505	PANEL - (PSC) (SEE INDEX)	1	64155
?	PB5249	TRANSFORMER	1
?	GE0150	CABLE ASSEMBLY	1
?	GE0222	BRACKET - 3" WIDE	1
?	GE0170	SENSOR, CURRENT	2
?	GE0160	SENSOR, POWER SUPPLY (SPS)	1
?	GE0206	TRANSFORMER/PANEL ASSEMBLY	1
?	VE6113	PANEL (SEE INDEX)	1	64045
?	PB3167	KIT, BRACKET & HARDWARE	1
?	VJ9204	TRANSFORMER, RIPPLE	1
?	VS8193	BOARD, TERMINAL	1
?	BF1442	BOARD, TERMINAL	5
?	GE0198	BOARD, WIRE - PRINTED	2
?	GE0173	MONITOR, CAPACITOR (RU)	1
?	GE0510	ASSEMBLY, DIODE	1
?	BF3903	PANEL (SEE INDEX)	1	64084
?	BF4222	CAPSCREW	2
?	VE5762	FLAT WASHER	4
?	VE4696	LOCKWASHER	4
?	VE5013	NUT	2
?	VE7202	FLAT WASHER (SPECIAL)	-1
?	DC3584	LOCKWASHER	-1
?	TD1549	NUT	-1
?	VE4655	FLAT WASHER	-1
?	VC1390	LOCKWASHER	-1
?	SF2755	NUT	-1
?	GE0240	GROMMET, RUBBER	12
?	GE0236	WASHER	4
?	VJ6586	CAPSCREW - #10	-1
?	VS6662	FLAT WASHER - #10	-1

Komatsu AFE48-AT 930E-2 S/N A30122-A30127 & A30130 BARRICK GOLDSTRIKE parts catalog PDF

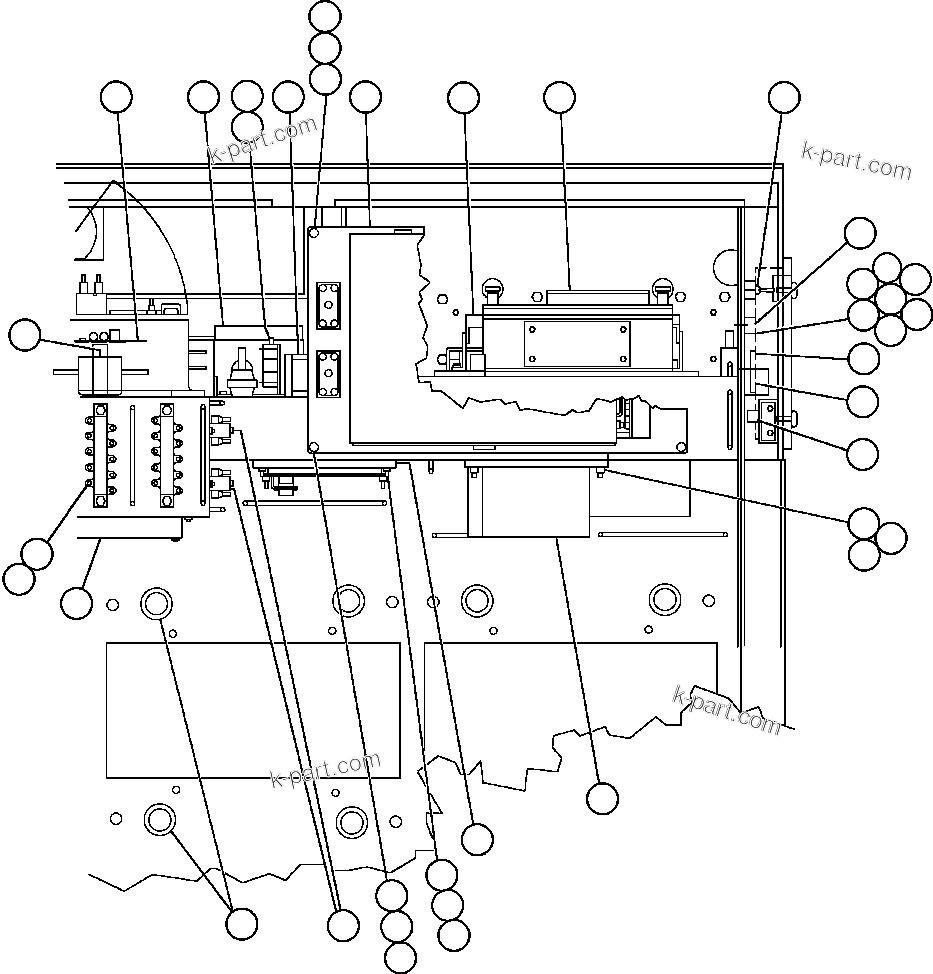

CONTROL CABINET (INSIDE TOP RIGHT FRONT) (64119) in AFE48-AT 930E-2 S/N A30122-A30127 & A30130 BARRICK GOLDSTRIKE. Diagram image and parts list.
