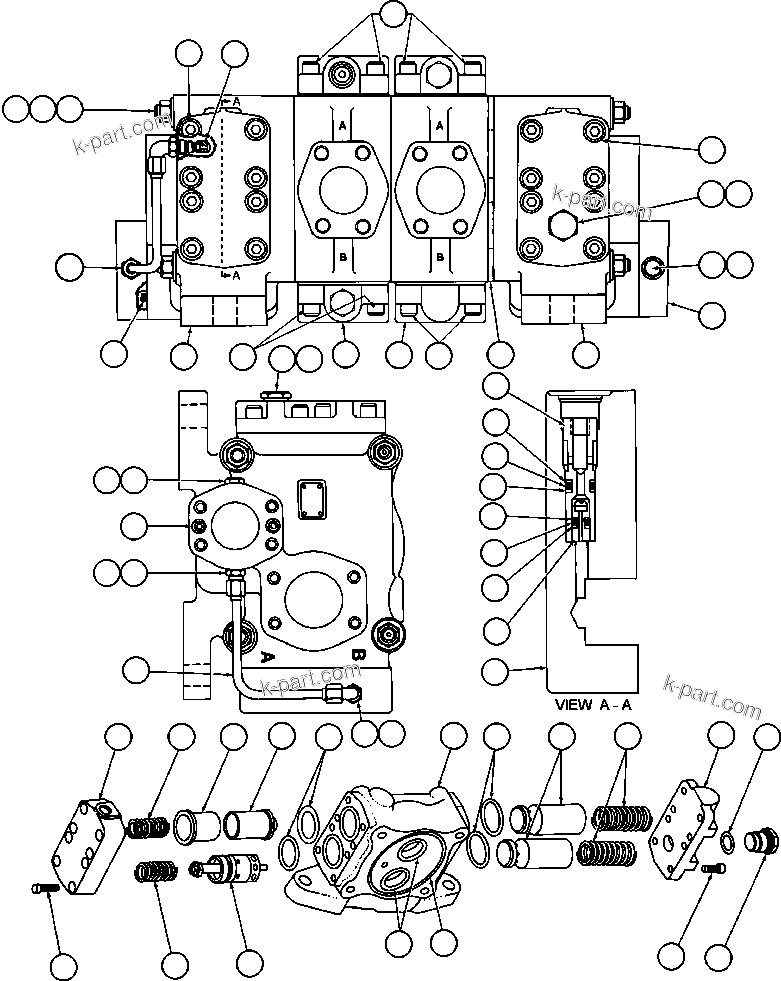

HOIST CONTROL VALVE ASSEMBLY (PB9839) | AFE48-AL 930E S/N A30111 MORENCI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE48-AL 930E S/N A30111 MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	BF3045	TIE ROD	4
?	VE3807	COMPRESSION WASHER	8
?	VE3804	LOCKNUT	8
?	BF3049	INLET SECTION ASSEMBLY	2
?	VJ2002	CAPSCREW	16
?	DF6928	CAPSCREW	48
?	VJ0011	PLUG	2
?	VJ0435	O-RING (2)/(3)	2
?	VE3551	PLUG	2
?	VE3565	O-RING (2)/(3)	6
?	VE3563	CAP, FLANGE	2
?	VE3553	O-RING (2)/(3)	2
?	VE3559	FITTING	2
?	VE3564	TUBE	2
?	VE3561	FITTING	2
?	VE3803	CAPSCREW	4
?	VE3560	SLEEVE (2)	2
?	VE3554	BACKUP RING (2)/(3)	4
?	VE3552	O-RING (2)/(3)	2
?	1133800C1	BACKUP RING (2)/(3)	4
?	VE3526	O-RING (2)/(3)	2
?	VE3558	POPPET, RESTRICTION (2)	2
?	VE3562	COVER	2
?	VE3569	SPRING	2
?	VJ1989	SLEEVE	2
?	VE3609	RELIEF VALVE ASSEMBLY (2)	2
?	VE3555	PLUG	2
?	VE3556	POPPET	2
?	VE3533	O-RING (2)/(3)	8
?	BF3046	HOUSING, INLET (1)	2
?	VJ1988	POPPET	4
?	VJ1985	SPRING	4
?	VE3568	COVER, POPPET	2
?	VE3534	O-RING (2)/(3)	4
?	VE3528	O-RING (2)/(3)	8
?	VE3567	VALVE, RELIEF (2)	2
?	VJ1990	SPRING	2
?	VE3557	RESTRICTION SCREW	2
?	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	40004
?	VE3806	PLATE - SPACER	1
?	BF3050	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	60069
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
?	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1
