AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

26 24 33 32 25 34 35 37 36 12 11 29 30 31 13 1 2 3 4 9 10 13 14 15 16 17 6 8 4 27 7 38 21 22 24 23 25 10 19 18 16 20 28 26 5 11 12

#	Part Number	Partname	Quantity
1	TH7965	BALL, STEEL - 1/4"	1
2	VE3571	FLANGE	1
3	VE3588	DOWEL	10
4	VE7795	PLATE, GEAR	2
5	WA0262	O-RING (1)/(2)	5
6	VE3572	PLATE, CONNECTOR	1
7	VE3593	O-RING (2)	24
8	VE3574	PLATE, BEARING	1
9	VE3573	PLATE, CONNECTOR	1
10	VE3592	WASHER	8
11	25632R1	NUT	8
12	BF2675	STUD	4
13	VE7797	GEAR, IDLER	2
14	BF0065	CAPSCREW	8
15	VE3575	PLATE, BEARING	1
16	VS0629	DOWEL	4
17	VE8967	PLATE, TRANSITION (3)	1
18	WA0158	O-RING (2)/(3)	1
19		(NOT USED THIS APPLICATION)	-1
20	VE8966	COUPLING, SPLINE (3)	1
21	BF2674	GEAR, DRIVE	1
22	SL8698	SNAP RING	1
23	VE3589	COUPLING	1
24	VE3738	RING, STEEL	8
25	VE3583	RING, BACKUP (2)	4
26	VE3584	O-RING (2)	4
27	VE3580	PLATE, PRESSURE	4
28	VE1783	PLUG (1)/(2)	1
29	BF2673	GEAR, DRIVE	1
30	VE3586	SEAL (1)/(2)	2
31	TG3789	SNAP RING (1)/(2)	1
32	VE3581	PLATE, ISOLATION	4
33	VE3582	RING, RETAINER (2)	4
34	BF2676	STUD	4
35	VE5201	STUD	4
36	WA0360	FLAT WASHER - 1/2"	4
37	25527R1	NUT	4
38	WA0155	O-RING (2)/(3)	1
NS\|39	VE3594	NOTE: (1) INCLUDED IN VE3594 SHAFT SEAL KIT.	-1
NS\|40	BF0033	(2) INCLUDED IN BF0033 SOFT GOODS SERVICE KIT.	-1
NS\|41	PB8769	(3) INCLUDED IN PB8769 PUMP REWORK KIT.	-1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

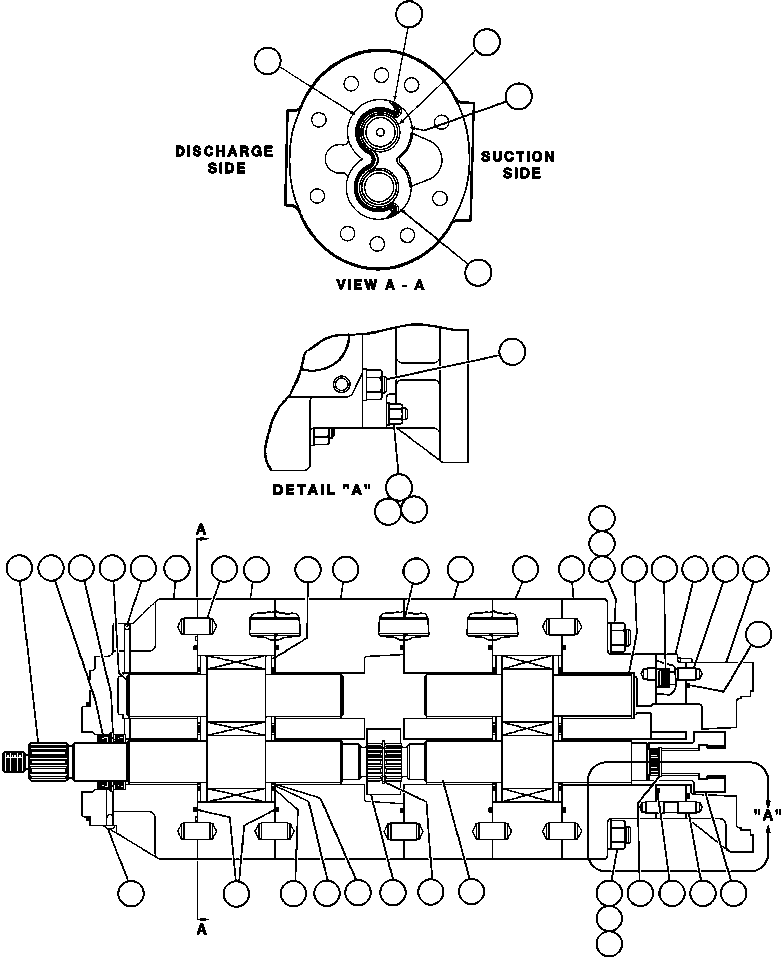

HOIST PUMP ASSEMBLY (PB9008) (40779) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
