AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VS8925	FRAME, MAGNET	1
?	VS9808	CORE	1
?	VJ9134	CAPSCREW - 3/8" - 16NC X 3/4" WITH LOCKWASHER	2
?	GE0349	FRAME, SPRING BRACKET	1
?	VE5759	SPRING, WITH PLUG	1
?	VS9034	SCREW, ADJUSTING	1
?	BF1890	ARMATURE ASSEMBLY	1
?	C5747	CAPSCREW - 5/16" - 18NC X 3/4" WITH LOCKWASHER	2
?	VE4076	SPRING, ARCING HORN	1
?	VS9172	PIN	1
?	VS9171	CLAMP	2
?	VS9209	MACHINE SCREW - #10 - 32NC X 1/2" WITH LOCKWASHER	2
?	VS8285	ARM, CONTACT	1
?	VE5761	PIN, COTTER	1
?	VS9175	SEAT, SPRING	1
?	VM0253	SPRING	1
?	VE1183	TIP, CONTACT	2
?	VE5223	HORN, ARC	1
?	VS7132	SHIELD	1
?	VE2250	CAPSCREW - 5/16" - 18NC X 2 1/4"	2
?	VE2249	CAPSCREW - 5/16" - 18NC X 2"	2
?	VS9212	CAPSCREW - 3/8" - 16NC X 1 1/4"	1
?	VJ8979	CLAMP	1
?	VJ1124	SUPPORT, COIL	1
?	VJ8710	FLANGE, INSULATION	2
?	BF1891	FLANGE, CORE	2
?	BF1892	CORE	1
?	VS7830	SPACER	1
?	BF1893	SUPPORT	1
?	VE2248	SHIM	1
?	GE0350	SHUNT	1
?	VE3288	PLATE, LOCKING	1
?	VE0252	WASHER, SPRING	1
?	BF1896	TUBE, INSULATION	1
?	BF0705	MACHINE SCREW - # 10 - 32NC X 1 1/4"	2
?	VJ7860	CAPSCREW - 5/16" - 18NC X 1/2"	4
?	VJ9150	CAPSCREW - 1/4" - 20NC X 3 1/2"	1
?	GE0351	CHUTE, ARC	1
?	GE0352	POLE, PIECE - R.H.	1
?	GE0353	POLE, PIECE - L.H.	1
?	GE0354	PIN	1
?	GE0355	CHUTE, ARC - R.H. SIDE	1
?	GE0356	CHUTE, ARC - L.H. SIDE	1
?	GE0357	SUPPORT, ARC CHUTE	2
?	VD6089	CAPSCREW - 1/4" - 20NC X 3" (ZINC PLATED)	4
?	BF1895	CAPSCREW - 1/4" - 20NC X 3 1/4"	2
?	GE0361	SCREW	1
?	VM0250	COIL ASSEMBLY	1
?		NOTE: NS = (NOT SHOWN)	-1
?	VS6881	FLAT WASHER - 5/16" (BRASS)	2
?	VE5762	FLAT WASHER - 5/16" (NARROW)	8
?	DF3445	FLAT WASHER - 1/4"	2
?	VE5771	FLAT WASHER - #10 (EXTERNAL TOOTH)	1
?	DC3584	FLAT WASHER - 1/4"	7
?	VE4696	FLAT WASHER - 5/16"	9
?	SF2755	NUT - #10	1
?	VE4347	NUT - 1/4"	3
?	GE0358	FILLER PIECE	2
?	GE0359	CEMET	-1
?	GE0360	ADHESIVE	-1
?	VE7202	FLAT WASHER - 1/4" (NARROW)	8
?	VE5762	FLAT WASHER - 5/16" (NARROW)	2
?	GE0362	NUT - 1/4" (SPECIAL)	6
?	VE5013	NUT - 5/16" (SPECIAL)	1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

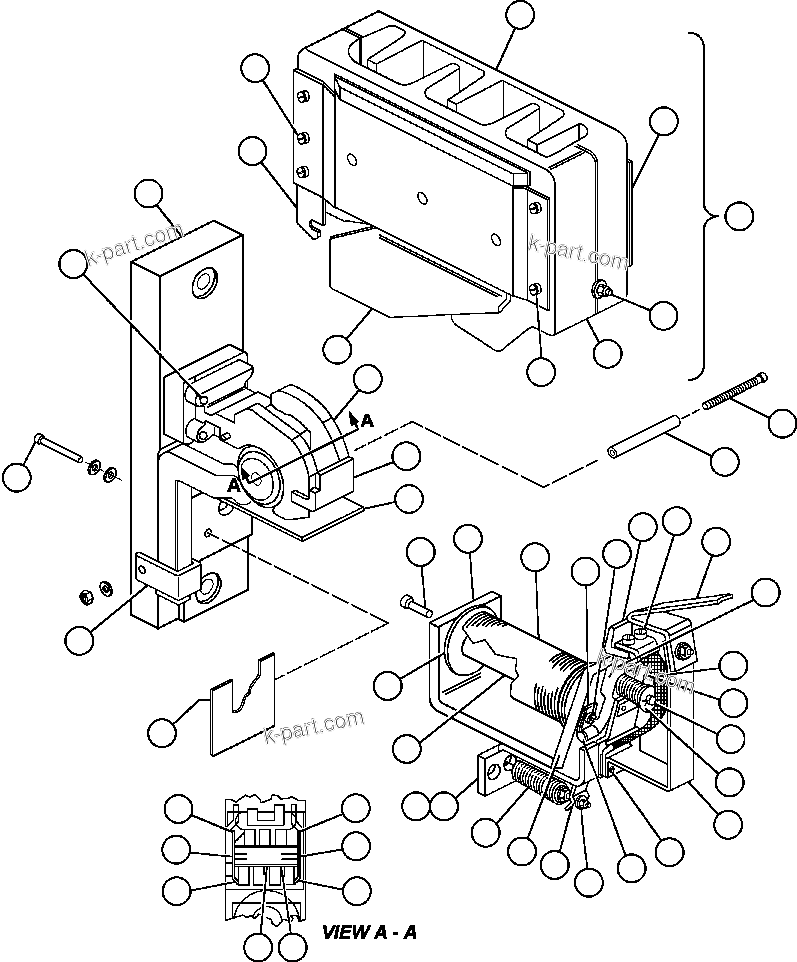

CONTACTOR (GE0168) (64039) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
