AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8861	SEAT FRAME ASSEMBLY	1
?	VE8867	KIT, BOOT SEAT FRAME	1
?		BOOT, SEAT FRAME	1
?	BF0518	KIT, HARDWARE BOOT	1
?	VE8862	SPACER, STATIC	1
?	VE8873	SPACER (STATIC ADAPTOR PLATE MT)	4
?	VE8871	CAPSCREW - M8 X 25 (STATIC SPACER MOUNTING)	4
?	VE8865	BAR, INTERMEDIATE CONNECTING POINTS	1
?	VE8866	KIT, SEAT BELT	1
?	VE0513	KIT, SEAT BELT/HARDWARE	1
?	VE0514	KIT, TETHER	1
?	VE8863	KIT, SLIDE	1
?	BF0526	HANDLE, SLIDE	1
?	BF0527	SLIDE, R.H.	1
?	BF0528	SLIDE, L.H.	1
?	VE8708	SPACER (HANDLE UP)	4
?	VE8870	CAPSCREW - M8 X 20 (ADAPTOR PLATE & SLIDE MOUNTING)	8
?	VE8868	PLATE, ADAPTOR	1
?	VE4565	KIT, BOOT	1
?		BOOT (1)	1
?	VE8747	KIT, HARDWARE BOOT	1
?	VE8864	SUSPENSION ASSEMBLY, SEAT	1
?	VE8875	CAPSCREW - M8 X 16	2
?	VE8872	LOCKWASHER - M8 (ICP BAR & SLIDE TO SUSP)	6
?	LA0323	CAPSCREW, (SEAT BACK TO SEAT FRAME)	2
?	LA0325	LOCKNUT, NYLON (SEAT PAN; SEAT FRAME)	12
?	VE8874	CLAMP, CRIMP	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

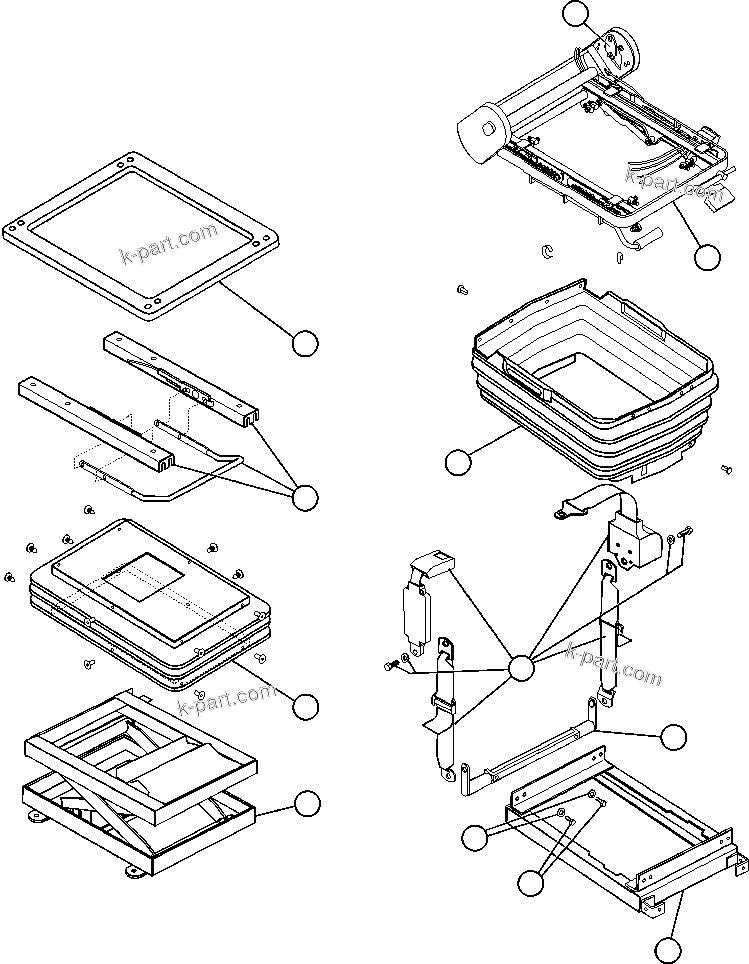

OPERATOR'S SEAT ASSEMBLY - 1 (PB8649) (50075) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
