AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	SM1082	INSTRUMENT PANEL, MOLDED	1
?	SM2776	GAUGE MODULE	1
?	SM4358	PLATE, MOUNTING	1
?	EF6948	HARNESS - GAUGE PANEL	1
?	VH5017	STRAP, TIE	5
?	VZ5080	BULB	6
?	PB8551	GAUGE, OIL PRESSURE	1
?	PB6927	VOLTMETER	1
?	PB9869	DRIVE SYSTEM TEMP	1
?	PB7903	LOUVER, BALL	1
?	SM2785	HOURMETER	1
?	PB6926	GAUGE, FUEL LEVEL	1
?	PB6401	KIT, BEZEL OVERLAY	6
?	PB6303	GAUGE, WATER TEMPERATURE	1
?	SM2722	LEXAN OVERLAY, GAUGE MODULE	1
?	PB9868	GAUGE, HYDRAULIC OIL TEMP	1
?	PB8320	ADAPTOR	8
?	PB8319	LOUVER	8
?	VM2951	SET SCREW - #6 - 32NC X 1/2"	16
?	PB6402	KIT, BEZEL OVERLAY	2
?	PB6985	SPEEDOMETER, DIGITAL - KMH	1
?	TY8743	PANEL, BLANK INSERT	1
?	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	2
?	TW3834	INDICATOR, HIGH BEAM	1
?	VZ5080	BULB	3
?	TW5472	INDICATOR, TURN	2
?	WA6639	LEXAN OVERLAY, TURN SIGNAL	1
?	PB6984	TACHOMETER - DIGITAL	1
?	PB8658	SCREW - M6 X 1	11
?	SM2841	SWITCH MODULE	1
?	SM4359	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	PB6972	SWITCH, ROCKER	2
?	EF9151	HARNESS - SWITCH MODULE	1
?	VH5017	STRAP, TIE	5
?	SM2729	LEXAN OVERLAY, SWITCH MODULE	1
?	PB7903	LOUVER, BALL	1
?	SM2842	SWITCH/LIGHTS MODULE	1
?	SM4356	PLATE, MOUNTING	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	SM2751	LEXAN OVERLAY - SWITCH/LIGHTS	1
?	PB6972	SWITCH, ROCKER	3
?	EF6950	HARNESS - SWITCH/LIGHTS PANEL	1
?	VH5017	STRAP, TIE	5
?	PB9752	SWITCH, ROCKER	1
?	VM7105	SWITCH, KEY	1
?	SM1088	PLATE, R.H. RETAINER	1
?	TX7829	SEAL, STEERING COLUMN	1
?	SM1086	PLATE, L.H. RETAINER	1
?	SM4388	WIPER SWITCH MODULE	1
?	SM4357	PLATE, MOUNTING	1
?	EF6949	HARNESS - WIPER DASH PANEL	1
?	VH5017	STRAP, TIE	5
?	TW5117	RHEOSTAT	1
?	PB0529	KNOB	1
?	TY9878	CONTROL, ELECTRIC WIPER	1
?	PB7026	SWITCH, ROCKER	1
?	PB6972	SWITCH, ROCKER	1
?	PB7019	LIGHT, INDICATOR	1
?	VL6234	BULB	1
?	SM2754	LEXAN OVERLAY, SWITCH MODULE	1
?	SM2783	HOSE	2
?	CC6103	CLAMP	4
?	EF7748	TUBE	2
?	LW02578	ADHESIVE, SILICONE RUBBER	1
?	WA4513	SCREW	4
?	SM0926	SCREW	18
?		NOTE: NS = NOT SHOWN	-1
?	VS8192	BOARD, TERMINAL (INSTL PANEL LIGHTS)	1
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	2
?	DC3101	LOCKWASHER - #10	2

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

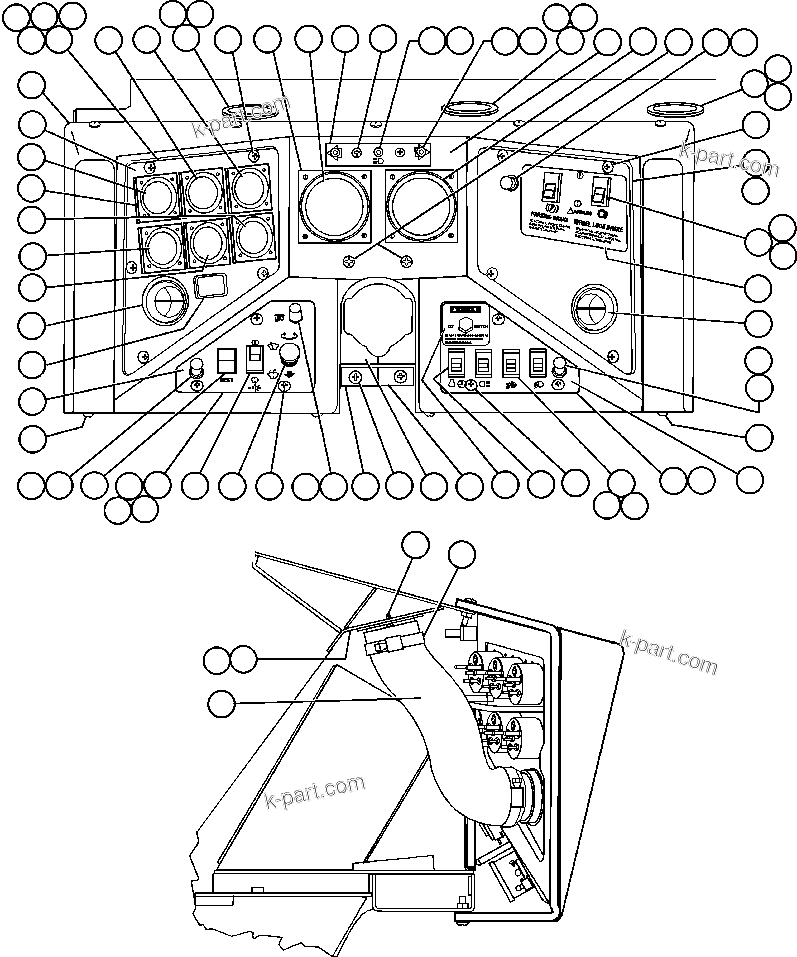

INSTRUMENT PANEL ASSEMBLY (60096) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
