AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE8864	SUSPENSION ASSEMBLY	1
?		FRAME, UPPER (1)	1
?	BF0508	KIT, SUSPENSION HARDWARE	1
?		ROLLER (1)	4
?		NUT, HEX (1)	2
?		BOLT, SHOULDER (1)	2
?		BUSHING (1)	4
?		BUSHING (1)	2
?	BF0478	KIT, BUMPER	1
?		WASHER, SPLIT (1)	2
?	VE8721	KIT, COMPRESSOR	1
?		COMPRESSOR (1)	1
?	VE8744	ELBOW	1
?	VE6664	CAP	1
?	VE8874	CLAMP, CRIMP	1
?	VE8724	KIT, AIR SPRING	1
?		SPRING, AIR (1)	1
?	VE8744	ELBOW	1
?	VE6664	CAP	1
?	VE8875	BOLT	2
?	BF0488	WASHER	2
?	BF0476	KIT, SHOCK ABSORBER	1
?	BF0477	KIT, AXLE	1
?		SHAFT, LOWER (1)	1
?		AXLE, UPPER (1)	1
?	VE4582	SNAP RING	4
?	BF0091	KIT, COMPRESSOR/RELAY	1
?		COMPRESSOR (1)	-1
?	VE8744	ELBOW	1
?	VE6664	CAP	1
?		RELAY	1
?		SCREW	1
?		CLAMP	1
?		HARNESS	1
?		TIE, CABLE	1
?		FRAME, LOWER (1)	1
?		SCISSOR, OUTER (1)	1
?		SCISSOR, INNER (1)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1

Komatsu AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI parts catalog PDF

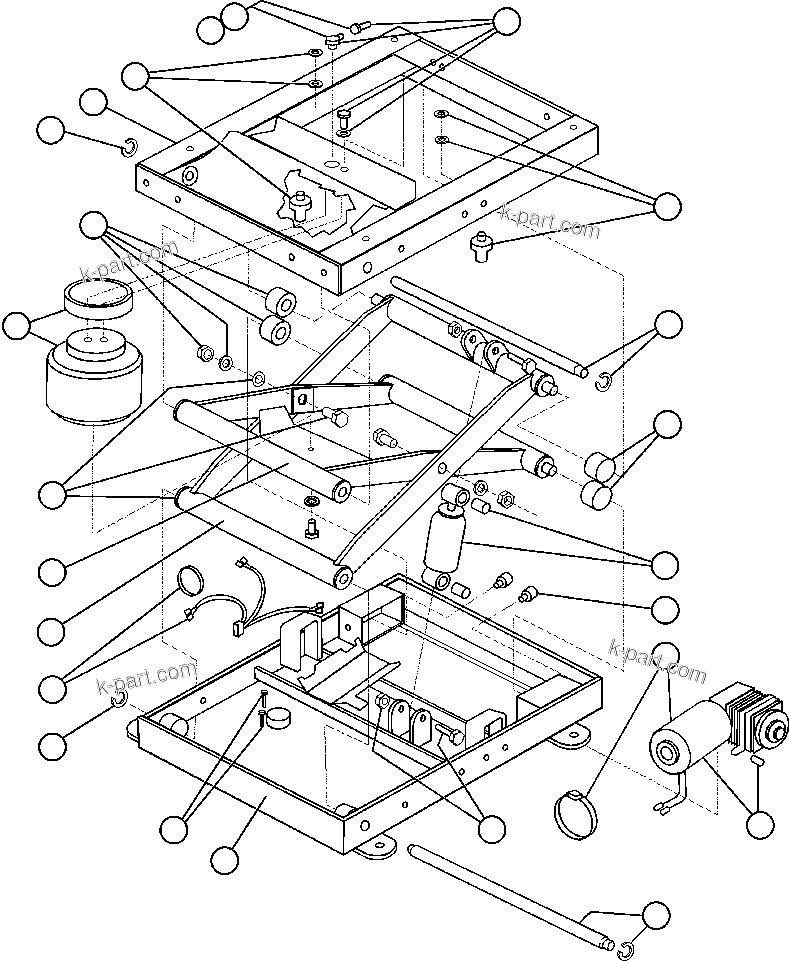

SEAT SUSPENSION ASSEMBLY (VE8864) (50077) in AFE48-V 930E S/N 32816 & 32837 PHELPS-DODGE MORENCI. Diagram image and parts list.
