AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EJ4153	BOX, BATTERY CONTROL	1
?	VZ2691	CONDULET, LOCKNUT - 1 1/4"	6
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	3
?	SP8417	FLAT WASHER - 1/4" - 20NC	12
?	DC3584	LOCKWASHER - 1/4"	12
?	TD1549	NUT - 1/4" - 20NC	12
?	EC0890	PLATE, MOUNTING	1
?	EC0891	GASKET	1
?	MM0594	CAPSCREW - M8 X 1.25 X 25	16
?	MM0460	FLAT WASHER - M8	26
?	MM0470	LOCKWASHER - M8	18
?	PB6233	SWITCH, BATTERY DISCONNECT	3
?	821197	STUD	1
?	TR9180	NUT, JAM - 5/16" - 24NF	2
?	S1357	JOINT, BALL	2
?	TV0177	FLAT WASHER - 5/16"	30
?	DD7501	NUT, LOCK	2
?	EG7737	HARNESS, EQUALIZER	1
?	MM0604	CAPSCREW - M10 X 1.50 X 20	4
?	MM0461	FLAT WASHER - M10	8
?	MM0471	LOCKWASHER - M10	6
?	PB9112	RECEPTACLE ASSEMBLY	2
?	427856R91	CLAMP	8
?	SC4174	LOCKWASHER - 5/16"	26
?	TV0177	FLAT WASHER - 5/16"	30
?	TD1684	NUT - 5/16" - 18NC	16
?	TG2568	CLAMP	7
?	CH4610	CABLE, BATTERY - RED	2
?	MM0606	CAPSCREW - M10 X 1.50 X 30	2
?	MM0178	NUT - M10 X 1.50	2
?	TR4731	CAPSCREW - 5/16" - 18NC X 3/4"	1
?	ED7260	BAR, BUS	1
?	TD0794	CAPSCREW - 5/16 - 18NC X 3/4"	10
?	ED7259	BAR, BUS - 11	1
?	ED7528	BAR, BUS - 1	1
?	ED7257	BAR, BUS - 11ST	1
?	ED7255	BAR, BUS - 24V	1
?	CH4607	CABLE, RED PVC	1
?	VH5031	HOUSING, SOCKET	1
?	VH5020	SOCKET	1
?	TS0299	RESISTOR	1
?	PC0938	DIODE SCHOTTKY, BATTERY ISOLATOR	1
?	VC5344	FLAT WASHER - #10	10
?	DC3101	LOCKWASHER - #10	12
?	DF0017	NUT - #10 - 24NC	8
?	PB6977	EQUALIZER, BATTERY	1
?	MM0349	MACHINE SCREW - M5 X .8 X 12	4
?	VN0137	CLAMP	2
?	PB7202	INSULATOR	5
?	PB8460	BREAKER, CIRCUIT	1
?	VM1464	MACHINE SCREW - #10	2
?	EB2646	GASKET, RUBBER	1
?	MM0596	CAPSCREW - M8 X 1.25 X 35	8
?	MM0177	NUT - M8 X 1.25	8
?	ED7253	BAR, BUS	1
?	ED7907	PLATE, BENT	1
?	MM0592	CAPSCREW - M8 X 1.25 X 16	2
?	PB5993	COVER	2
?	EJ3563	BRACKET, CIRCUIT BREAKER	1
?	PB6073	BREAKER, CIRCUIT - 15 AMP	1
?	EJ3202	WIRE	1
?		(BATTERY CONTROL BOX IS NOT SERVICED AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.)	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

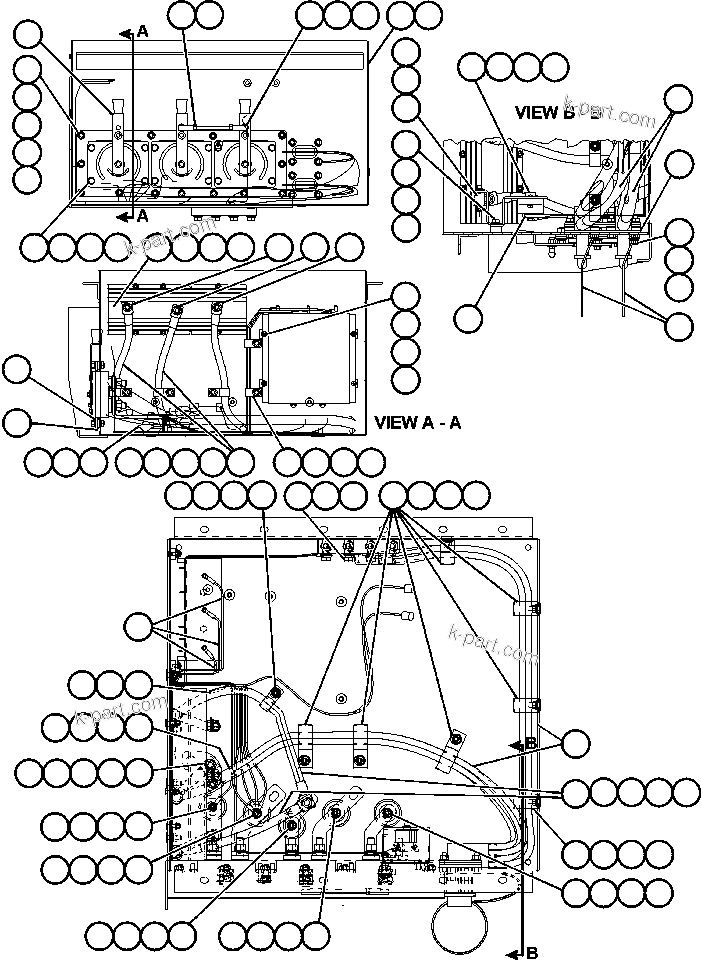

BATTERY CONTROL BOX ASSM (ED1098/EJ3822) (60510) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
