AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG1044	CHAIN ASSEMBLY	1
?	TB8588	ROD, FORMED	2
?	ED7987	HOOK, SNAP	1
?	TR5445	LOCKWASHER - 1/2"	2
?	PB9890	BUMPER, RUBBER	2
?	VG7146	CAPSCREW - 1/2" - 13NC X 3/4"	2
?	TR6008	FLAT WASHER - 1/2"	2
?	MM0462	FLAT WASHER - M12	10
?	MM0472	LOCKWASHER - M12	22
?	MM0619	CAPSCREW - M12 X 1.75 X 35	2
?	MM0617	CAPSCREW - M12 X 1.75 X 25	12
?	MM0179	NUT - M12 X 1.75	2
?	ED6111	PAD, TAPPED	6
?	EG1037	HANDRAIL	2
?	ED2811	HANDRAIL, BUMPER	2
?	EC6554	STRAP, MOUNTING	4
?	EC6553	STEP	2
?	EB2102	WASHER	4
?	EC7230	WASHER	4
?	MM0608	CAPSCREW - M10 X 1.50 X 40	20
?	MM0693	LOCKNUT - M10 X 1.50	20
?	EH0593	GUARD, BELLY	1
?	MM0470	LOCKWASHER - M8	25
?	MM0460	FLAT WASHER - M8	25
?	MM0595	CAPSCREW - M8 X 1.25 X 30	5
?	EF9808	BAR, TAPPED	1
?	EF9807	FLAP, RUBBER	1
?	MM0593	CAPSCREW - M8 X 1.25 X 20	8
?	EF9599	LID	1
?		(NOT USED THIS APPLICATION)	-1
?	MM0594	CAPSCREW - M8 X 1.25 X 25	12
?	ED1098	BATTERY CONTROL BOX ASSEMBLY (SEE FIG 60510) (1)	1	60510
?	EG1027	PLATE	1
?	EG1028	PAD, TAPPED	1
?	EG1101	LADDER, VERTICAL	1
?	EJ3564	HANDRAIL - R.H. LOWER	1
?	EJ3807	PLATFORM - R.H.	1
?	EJ6634	LADDER	1
?	TV1748	CAPSCREW - 5/8" - 11NC X 1 1/2"	2
?	WA4863	FLAT WASHER - 5/8"	4
?	VN9952	LOCKNUT - 5/8"	2
?		NOTE: (1) BATTERY CONTROL BOX IS NOT SERVICED AS AN	-1
?		ASSEMBLY. ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

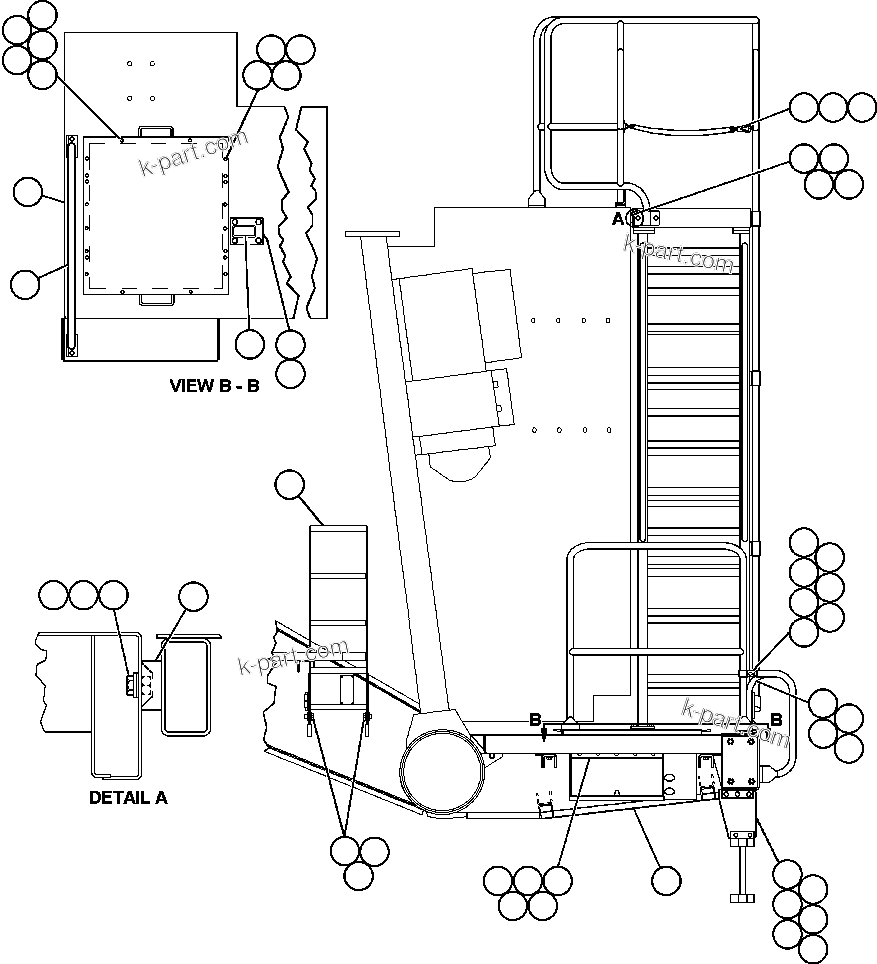

RIGHT SIDE LADDER & HANDRAIL (60498) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
