AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

18 19 4 23 24 31 29 27 15 2 1 28 14 26 20 30 21 22 9 10 36 13 12 11 35 6 7 5 25 32 40 33 8 41 1 3 16 38 37 15 34 39 17 36 35

#	Part Number	Partname	Quantity
1	31127R1	CAPSCREW - M6 X 12	12
2	SM0926	SCREW, PANEL	3
3	SM2294	COVER, INNER ACCESS (1)	1
4	SM2405	SEAL, WINDOW (INSIDE)	1
5	SM2548	SEAL, DOOR	1
6	SM6029	FRAME, DOOR - R.H.	1
7	TV6025	CAPSCREW - 1/4" - 20NC X 1 1/2"	1
8	VN2882	NUT, JAM	1
9	KD0252	MACHINE SCREW	4
10	SD4235	LOCKWASHER - 1/4" (EXTERNAL TOOTH)	4
11	SM2300	BUSHING, NYLON	2
12	SM2261	GASKET	1
13	SM2260	GASKET	1
14	PC0841	WINDOW ASSEMBLY	1
14	SM2265	GLASS	1
14	BF5190	RUN, GLASS - TOP	1
14	BF5191	RUN, GLASS - SIDE	2
15	BF5189	BOTTOM FRAME ASSEMBLY	1
16	BF5194	SEAL, OUTSIDE - RUBBER FLOCK	1
17	BF2744	COVER, SCREW	1
18	SM2406	SCREW, SELF-TAPING - #6 X 32NC	22
19	2048889R1	TRIM, BULK	-1
20	SM2255	HANDLE, PUSH BUTTON	1
21	SM2258	SPACER, DOOR HANDLE	1
22	SM2257	SPACER, DOOR HANDLE	1
23	SM2544	HINGE, DOOR	1
24	31154R1	CAPSCREW - M8 X 12	10
25	SM2274	LATCH DOOR ASSEMBLY - R.H.	1
26	SM2263	LEVER, DOOR LATCH	1
27	SM2264	KNOB, DOOR LATCH	2
28	SM2354	SCREW - #10 - 24NC	1
29	SM2355	NUT, LOCKING - #10 - 24NC	1
30	TC1234	CAPSCREW - 3/8" - 16NC X 3/4"	1
31	TG9225	NUT, LOCKING - 3/8"	1
32	SM2745	INNER PANEL ASSEMBLY - R.H.	1
32	SM2739	PANEL, INNER - R.H.	1
32	SM5391	INSULATION, PANEL - R.H.	1
33	SM2741	WINDOW REGULATOR ASSEMBLY - R.H.	1
34		MOTOR - R.H. (NOT SERVICED SEPARATELY)	1
34	XA2020	ADAPTOR, HARNESS	1
35	SM2832	BRACKET, WINDOW LIFT (INNER)	1
36	SM2833	BRACKET, WINDOW LIFT (OUTER)	1
37	SL9490	GROMMET	1
38	SM3010	HARNESS, POWER WINDOW	1
39	SM5832	GUIDE, WINDOW	1
40	MM0357	SCREW, MACHINE - M6 X 1.00 X 12	4
41	MM0207	LOCKWASHER - M6	4
NS\|48		NOTE: (1) INCLUDED IN SM2745 INNER PANEL ASSEMBLY.	-1
NS\|49		SEE ITEM 32.	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

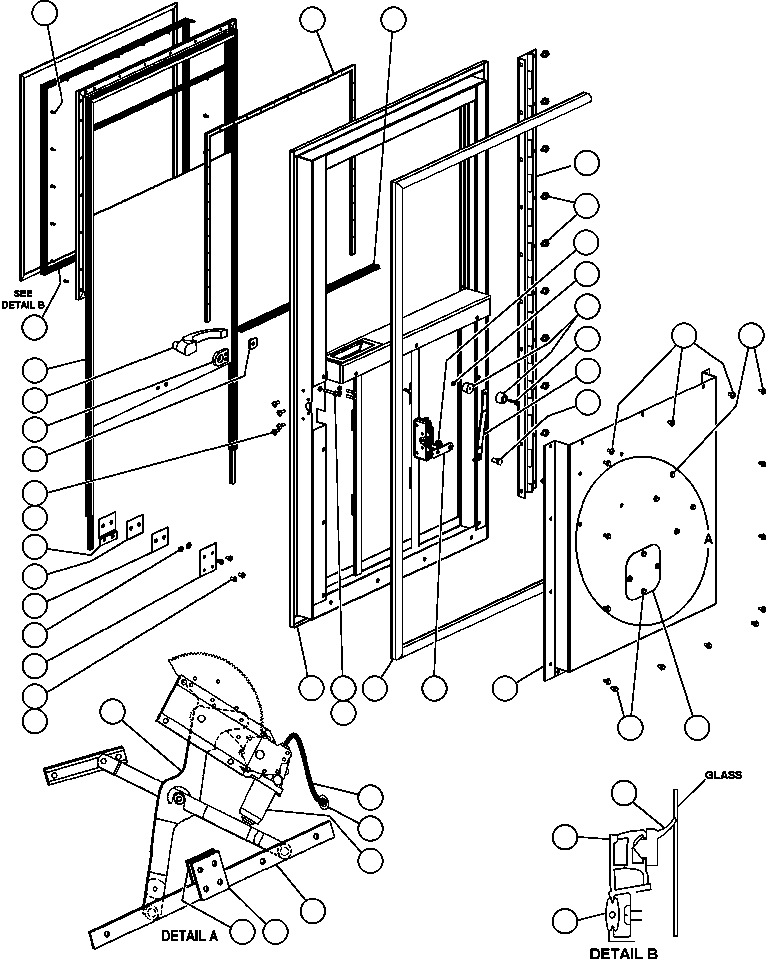

DOOR - R.H. (SM5949) (60554) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
