AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

52 51 57 58 61 60 59 56 54 53 51 52 55 51 52 62 50 63 50 49 49 52 51 64 64 44 52 51 64 16 17 2 3 11 10 9 1 12 13 45 46 44 47 48 14 5 4 8 7 6 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 21 21 21 21 42 22 43 26 25 32 31 30 41 18 35 39 38 40 38 37 36 34 33 29 28 27 24 23 20 19

#	Part Number	Partname	Quantity
1	SM0926	SCREW, PANEL	5
2	EJ8292	RADIO MODULE (1)	1
3	SM5332	PLATE, MOUNTING	1
4	SM2701	OVERLAY, LEXAN	1
5	PC1164	RADIO	1
5	PB9985	ANTENNA, RADIO (LEFT DECK, FRONT OUTSIDE CORNER)	1
5	PB9957	CABLE, ANTENNA EXTENSION	1
6	SM4491	SUPPORT	1
7	EJ1556	HARNESS, RADIO INTERFACE	1
8	PC0441	SONALARM, SIGNAL	1
9	PB8658	SCREW, MACHINE	1
10	EJ2857	WARNING LIGHTS MODULE (1)	1
11	SM2712	PLATE, WARNING LIGHT	1
12	SM2819	LEXAN OVERLAY, WARNING LIGHTS	1
13	PB6972	SWITCH, ROCKER	1
14	PB9723	SWITCH, ROCKER	1
15	SM4443	FLASHER ASSEMBLY - CLEAR LENS	30
15	VL6234	LAMP	30
16	EJ2141	HARNESS, LAMP SOCKET	1
17	EH7298	SOCKET, IND LIGHTS	1
18	SM4473	DECAL, CYLINDER OIL TEMPERATURE	1
19	SM5083	DECAL, CYLINDER OIL LEVEL	1
20	SM5052	DECAL, PARKING BRAKE	1
21	SM4315	DECAL, (NOT USED THIS APPLICATION)	3
21	EG3303	DECAL, LOW LUBE PRESSURE	1
22	SM5103	DECAL, NO POWER	1
23	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
24	SM5056	DECAL, BRAKE	1
25	SM4470	DECAL, BACKUP LIGHTS	1
26	SM5099	DECAL, PROPULSION SYSTEM WARNING	1
27	SM5053	DECAL, ACCUM PRE-CHARGE PRESSURE	1
28	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
29	SM5075	DECAL, BODY-UP	1
30	SM5072	DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER	1
31	SM5098	DECAL, PROPULSION SYSTEM TEMP	1
32	SM5105	DECAL, PROPULSION SYSTEM NOT READY	1
33	SM5084	DECAL, CYLINDER OIL FILTER	1
34	SM5070	DECAL, RETARDER	1
35	SM5071	DECAL, RETARD SPEED CONTROL	1
36	SM5057	DECAL, BRAKE OIL PRESSURE	1
37	SM5078	DECAL, FUEL	1
38	SM5063	DECAL, ENGINE SHUTDOWN	2
39	SM5076	DECAL, CHECK ENGINE	1
40	SM5101	DECAL, RETARD AT CONTINUOUS LEVEL	1
41	SM5097	DECAL, REDUCED PROPULSION SYSTEM	1
42	SM5102	DECAL, NO PROPEL	1
43	SM5106	DECAL, PROPEL SYSTEM REST	1
44	SM2055	PLATE, FORMED	1
45	SM5478	AIR FILTER RESTRICTOR GAUGE MODULE (1)	1
46	SM5854	PLATE, MOUNTING	1
47	PC0389	GAUGE, AIR RESTRICTOR	2
48	SM5853	DECAL, LEXAN	1
49	WA3367	NUT	10
50	SM5201	SPEAKER	2
51	MM0207	LOCKWASHER - M6	17
52	MM0176	NUT - M6 X 1.00	17
53	MM0206	LOCKWASHER - M5 (INTERNAL TOOTH)	1
54	MM0373	NUT - M5 X .80	1
55	31127R1	CAPSCREW - M6 X 12	6
56	PC0251	SONALARM, SIGNAL	1
57	SM5122	BRACKET	1
58	PB4767	RELAY	1
59	PB9050	HOSE, VACUUM	2
60	PB9051	FITTING, SINGLE BARB W/FILTER	2
61	PB9056	FITTING, COMPRESSION - FEMALE	2
62	PC0257	MODULE, DIMMER CONTROL	1
63	SM6205	DASH, OVERHEAD	1
64	WB0687	CAPSCREW - M6 X 30 (COUNTER SUNK)	3
NS\|69		NOTE: NS = NOT SHOWN	-1
NS\|70	TA0602	FITTING, NYLON	2
NS\|71	TA0603	FITTING, NYLON	2
NS\|72	TM4777	TUBE, NYLON	2
NS\|73		NOTE: (1) MODULE IS NOT SERVICED AS AN ASSEMBLY.	-1
NS\|74		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

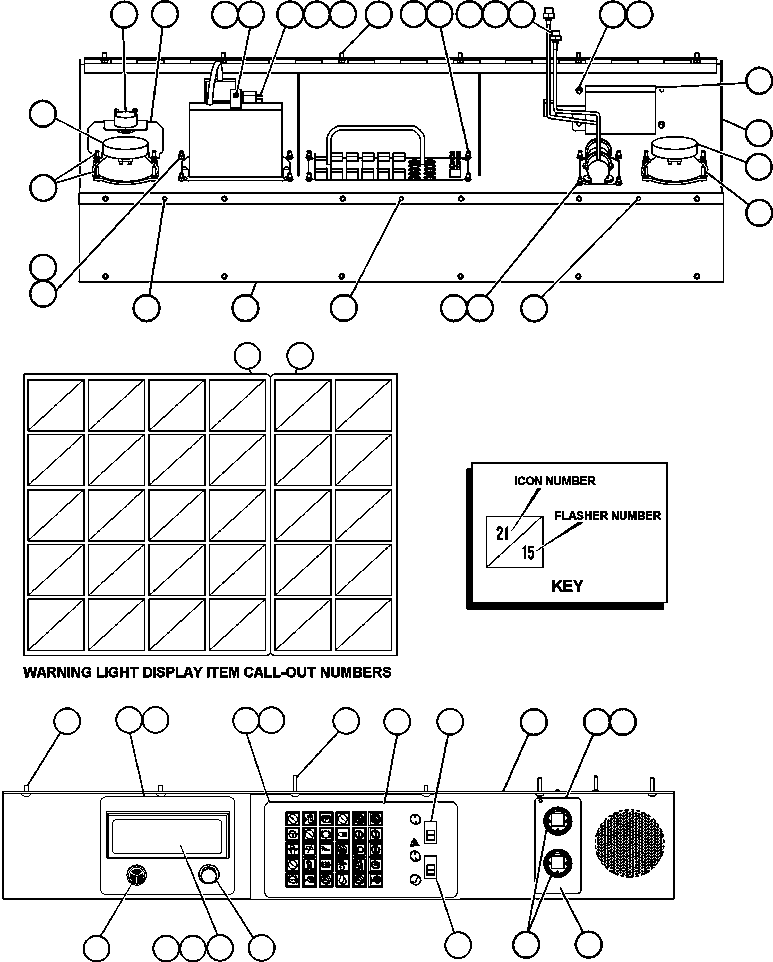

OVERHEAD DASH MODULE (60505) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
