AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA2238	SEAT SUSPENSION ASSEMBLY	1
?		FRAME, UPPER (1)	1
?	XA2247	KIT, HARDWARE	1
?		ROLLER (1)	4
?		BOLT, SHOULDER (1)	2
?		WASHER, SPLITLOCK (1)	2
?		NUT, HEX (1)	2
?		BUSHING (1)	4
?		BUSHING (1)	2
?	BF0478	KIT, BUMPER	1
?		BUMPER, UP (1)/(5)	2
?		BUMPER, DOWN (1)	2
?		WASHER, SPLITLOCK (1)	2
?		NUT, HEX (1)	2
?	VE8721	KIT, AIR COMPRESSOR	1
?		COMPRESSOR, AIR (1)/(2)	1
?	VE8744	ELBOW (2)	1
?	VE6664	CAP (2)	1
?	VE8874	CLAMP	4
?	VE8724	KIT, AIR SPRING	1
?		SPRING, AIR (1)	1
?	VE8744	ELBOW	1
?	VE6664	CAP	1
?	VE8875	BOLT (5)	2
?		WASHER (1)	2
?	BF0694	KIT, SHOCK ABSORBER	1
?	BF0697	ABSORBER, SHOCK	1
?		BOLT (1)	2
?		NUT (1)	2
?		BUSHING (1)	2
?	BF0477	KIT, AXLE	1
?		SHAFT, LOWER (1)	1
?		AXLE, UPPER (1)	1
?	VE4582	RING, SNAP	4
?	BF0091	KIT, COMPRESSOR / RELAY	1
?		COMPRESSOR, AIR (1)/(3)	1
?	VE8744	ELBOW (3)	1
?	VE6664	CAP (3)	1
?		RELAY (1)	1
?	BF0503	HARNESS	1
?		CLAMP (1)	1
?		SCREW (1)	1
?		FRAME, LOWER (1)	1
?		SCISSOR, OUTER (1)	1
?		SCISSOR, INNER (1)	1
?	BF0695	KIT, BUMPER	1
?		BRACKET (1)	2
?		BUMPER, UP (1)/(6)	2
?	VE8875	BOLT (4)	2
?		NUT, LOCK (1)	2
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	BF0091	(2) ALSO INCLUDED IN BF0091 COMPRESSOR/RELAY KIT.	-1
?	VE8721	(3) ALSO INCLUDED IN VE8721 AIR COMPRESSOR KIT.	-1
?	VE8724	(4) ALSO INCLUDED IN VE8724 AIR SPRING KIT.	-1
?	BF0695	(5) ALSO INCLUDED IN BF0695 BUMPER KIT.	-1
?	BF0478	(6) ALSO INCLUDED IN BF0478 BUMPER KIT.	-1

Komatsu AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA parts catalog PDF

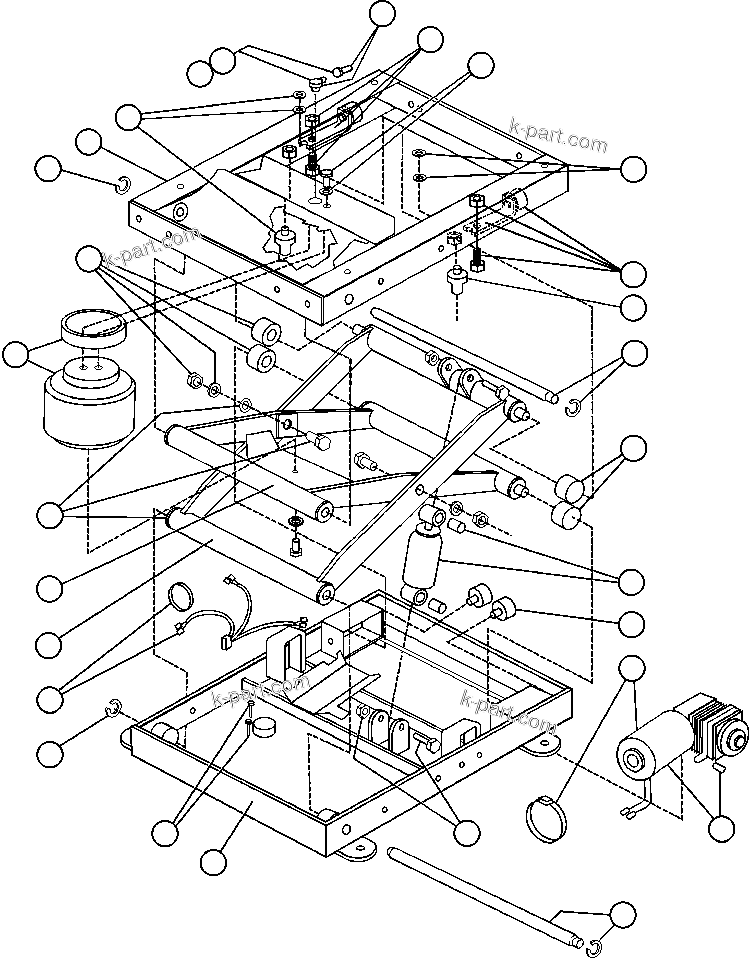

OPERATOR'S SEAT ASSEMBLY - 5 (EJ8295) (60545) in AFE48-DP 930E-2 S/N A30298 & A30299 TRANSALTA. Diagram image and parts list.
