1 |
WA3123
|

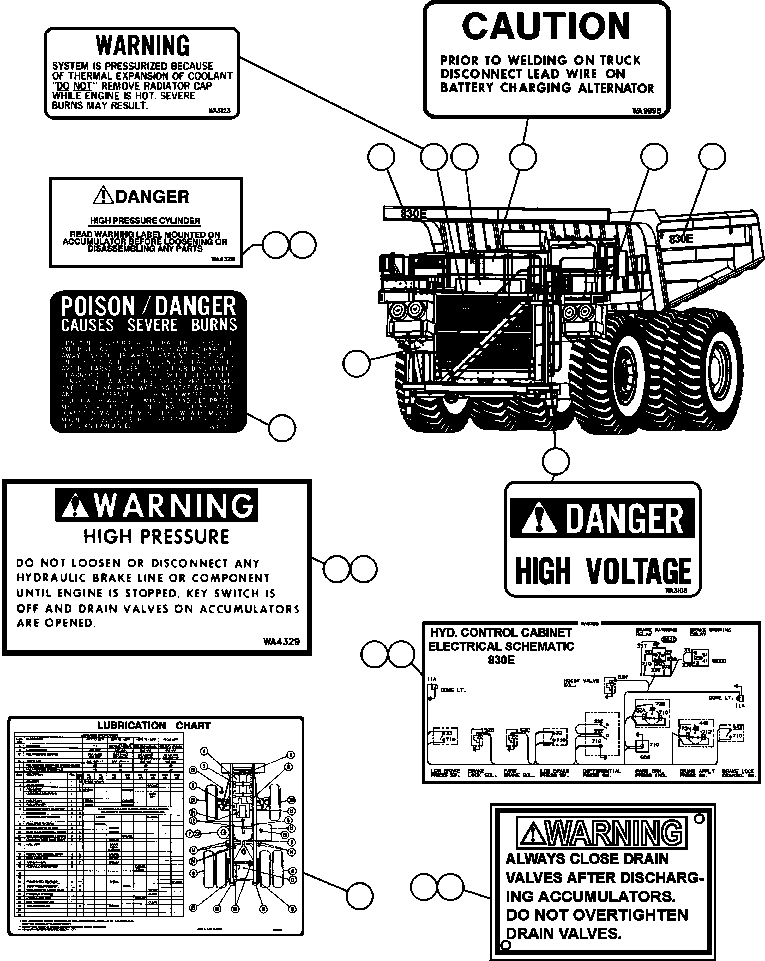

PLATE, RADIATOR PRESSURE WARNING (TOP OF GRILLE) (1) |
1 |
|
|
|
|
2 |
09690-C1120
|
DECAL, KOMATSU (WHITE LETTERING) (TOP FRONT OF GRILLE) |
1 |
|
|
|
|
2 |
09690-B1120
|
DECAL, KOMATSU (BLACK LETTERING) (TOP FRONT OF GRILLE) |
1 |
|
|
|
|
3 |
09690-C0560
|
DECAL, KOMATSU (WHITE LETTERING) (CENTER OF L.H. DOOR) |
1 |
|
|
|
|
3 |
09690-B0560
|
DECAL, KOMATSU (BLACK LETTERING) (CENTER OF L.H. DOOR) |
1 |
|
|
|
|
4 |
WB2404
|
DECAL, 830E (WHITE LETTERING) (BOTH SIDES OF BODY) |
2 |
|
|
|
|
4 |
WB2451
|
DECAL, 830E (BLACK LETTERING) (BOTH SIDES OF BODY) |
2 |
|
|
|
|
5 |
WB2790
|
CHART, LUBE (R.H. UPRIGHT) (3) |
1 |
|
|
|
|
6 |
WA9998
|
PLATE, WELDING CAUTION (INSIDE CONTROL CABINET DOORS)(1) |
2 |
|
|
|
|
7 |
WA3108
|
PLATE, HIGH VOLTAGE DANGER (INSIDE CONTROL CABINET |
4 |
|
|
|
|
7 |
|
& BLOWN GRID) (1) |
-1 |
|
|
|
|
8 |
|
INSIDE HYDRAULIC BRAKE CABINET |
-1 |
|
|
|
|
9 |
WB2438
|
DECAL, HIGH PRESSURE CYLINDER DANGER |
1 |
|
|
|
|
10 |
WB2691
|
PLATE, HIGH PRESSURE WARNING (2) |
1 |
|
|
|
|
11 |
WB2651
|
DECAL, ELECTRICAL SCHEMATIC |
1 |
|
|
|
|
12 |
WA6668
|
PLATE, DRAIN VALVES WARNING (2) |
1 |
|
|
|
|
13 |
WA3101
|
PLATE, DANGER (TOP OF BATTERY BOX) (1) |
1 |
|
|
|
|
14 |
WA6666
|
DECAL, 830E (R.H. FRONT OF CANOPY) |
1 |
|
|
|
|
NS|19 |
|
NOTE: NS = NOT SHOWN |
-1 |
|
|
|
|
NS|20 |
VL3817
|
PLATE, NEGATIVE GROUND (TOP OF BATTERY BOX) (1) |
1 |
|
|
|
|
NS|21 |
WA3925
|
DECAL, HYDRAIR II (FRONT & REAR SUSPENSIONS) |
4 |
|
|
|
|
NS|22 |
WA6672
|
DECAL, ON/OFF (SIDE OF BATTERY BOX) |
1 |
|
|
|
|
NS|23 |
WB2944
|
CHART, GRADE SPEED (L.H. INSIDE FRONT OF CAB) |
1 |
|
|
|
|
NS|24 |
WA6670
|
PLATE, EMERGENCY TOWING PROCEDURE (L.H. SIDE OF |
1 |
|
|
|
|
NS|25 |
|
FRAME BY ACCUMULATOR) (1) |
-1 |
|
|
|
|
NS|26 |
|
NOTE: (1) USE DC9822 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
NS|27 |
|
(2) USE WA3134 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
|
|
NS|28 |
|
(3) USE CC6049 DRIVE SCREW AS REQUIRED. |
-1 |
|
|
