AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EJ5871	LADDER, DIAGONAL (STAIRS)	1
?	EJ6571	SHIM	10
?	MM0620	CAPSCREW - M12 X 1.75 X 40	11
?	MM0714	FLAT WASHER - M12	8
?	EJ7947	SUPPORT, LADDER	1
?	EJ7292	SHIM	5
?	MM0023	CAPSCREW - M14 X 2.00 X 30	2
?	MM0028	CAPSCREW - M14 X 2.00 X 35	2
?	MM0463	FLAT WASHER - M14	4
?	EJ6523	PLATFORM - R.H.	1
?	EJ6524	PLATFORM - L.H.	1
?	ED1035	STEP	2
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	12
?	HE5611	LOCKNUT - 3/8" - 16NC	32
?	EC7230	BAR	4
?	EC6554	STRAP	4
?	VC8762	CAPSCREW - 3/8" - 11NC X 1 1/2"	20
?	EB2102	BAR	4
?	EC6553	STEP	2
?	TV1748	CAPSCREW - 5/8" - 11NC X 1 1/2"	16
?	WA4729	FLAT WASHER - 5/8" (HARDENED)	16
?	EJ7481	PLATE, MOUNTING	1
?	MM0623	CAPSCREW - M12 X 1.75 X 60	3
?	EJ7499	WASHER (SPECIAL)	9
?	DA0557	WASHER (SPECIAL)	6
?	WA2587	MOUNT, RUBBER	3
?	MM0694	LOCKNUT - M12 X 1.75	6
?	AK7503	LIGHT, FLOOD	1
?	EJ7911	HARNESS, FLOOD LIGHT/ENGINE SHUTDOWN	1
?	TD0794	CAPSCREW - 5/16" - 18NC X 3/4"	1
?	SC4174	LOCKWASHER - 5/16"	1

Komatsu AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT parts catalog PDF

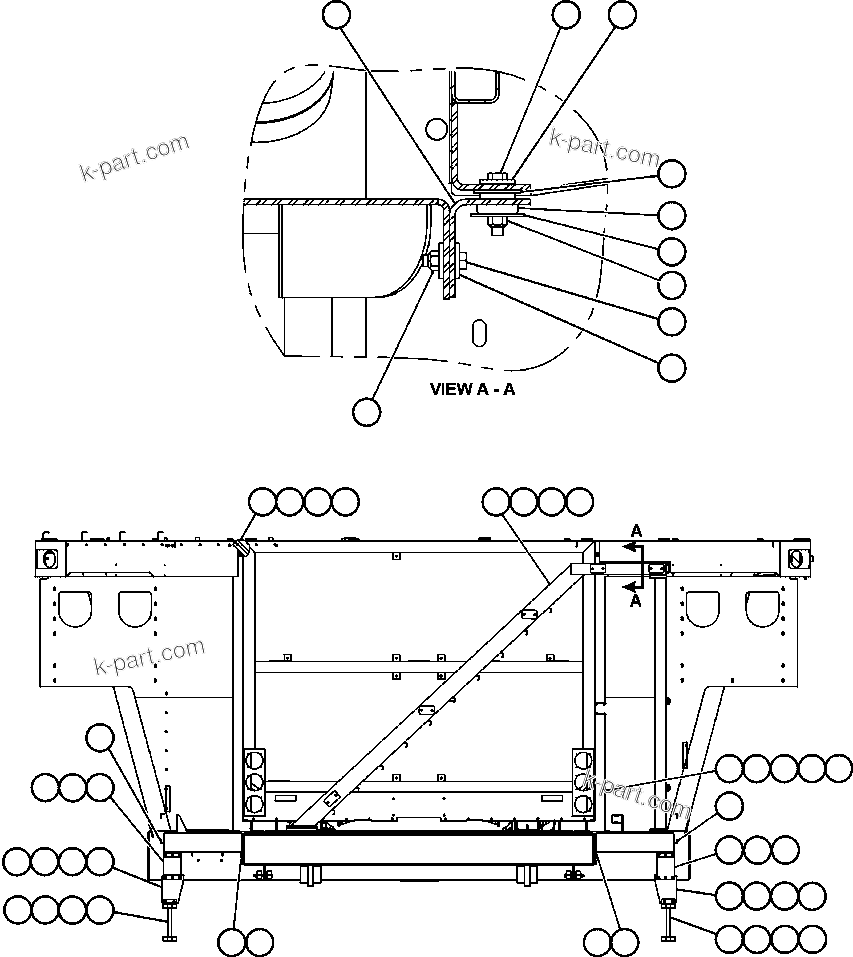

LADDER, STEPS & PLATFORMS (41710) in AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT. Diagram image and parts list.
