AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		FRAME, MAIN (ORDER FROM FACTORY)	1
?	EJ5719	UPRIGHT - R.H.	1
?	EJ5718	UPRIGHT - L.H.	1
?	VN9188	CAPSCREW - 5/8" - 11NC X 6 1/2"	8
?	C1525	NUT - 5/8" - 11NC	8
?	ED6340	SUPPORT, DECK - R.H.	1
?	TY6172	TUBE, ROPS	1
?	TY6171	MOUNT, ROPS	1
?	C1667	CAPSCREW - 1" - 8NC X 2 1/2"	16
?	WA0364	FLAT WASHER - 1"	16
?	MM0109	CAPSCREW - M20 X 2.50 X 90	8
?	MM0707	FLAT WASHER - M20	8
?	ED6335	SUPPORT, DECK - L.H.	1
?	ED6857	PLATE - R.H.	1
?	ED6856	PLATE - L.H.	1
?	ED6858	BACKER	4
?	EB2093	MOUNT, ROPS	1
?	EJ7500	SUPPORT	1
?	ED6872	BACKER - L.H.	2
?	ED6873	BACKER - R.H.	2
?	ED6859	PLATE, MOUNT - RIGHT OUTER	1
?	ED6860	PLATE, MOUNT - RIGHT INNER	1
?	ED6863	PLATE, MOUNT - LEFT INNER	1
?	ED6862	PLATE, MOUNT - LEFT OUTER	1

Komatsu AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT parts catalog PDF

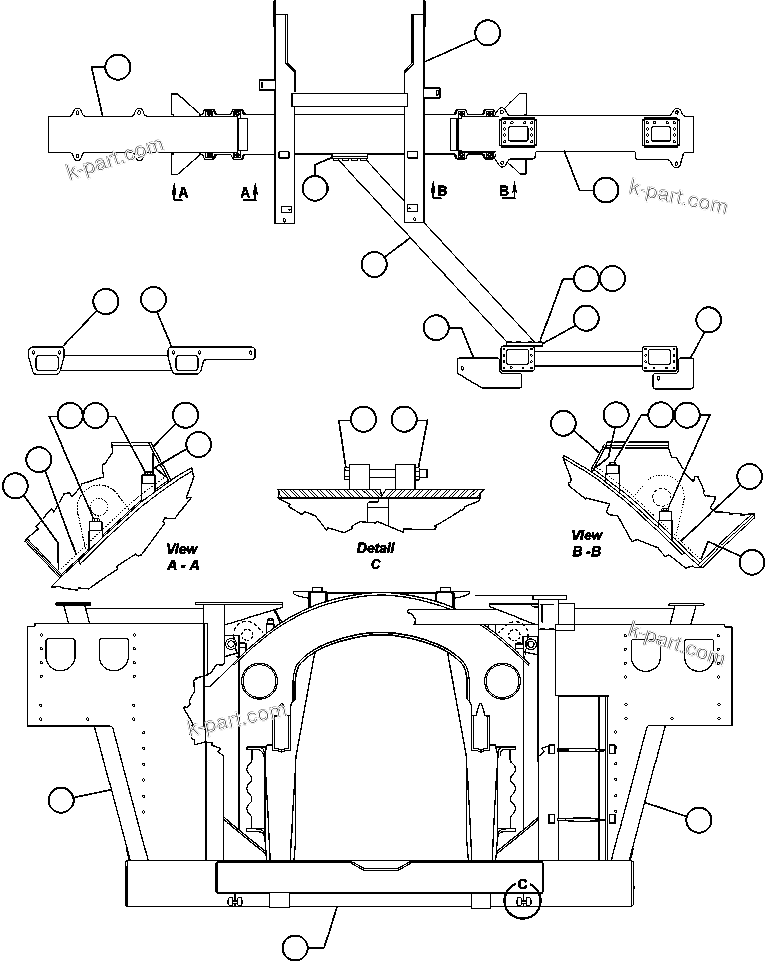

FRAME & UPRIGHTS (41046) in AFE50-GA 830E S/N GAE2144830E ARCH MINERAL RUFFNER MINE-GLIDER KIT. Diagram image and parts list.
