AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES

23 6 24 2 1 3 5 4 8 7 9 10 22 25 21 11 12 13 14 15 16 13 14 15 20 19 18 17

#	Part Number	Partname	Quantity	Reference
1	SM2844	RADIO MODULE (SEE FIG 60290) (1)/(2)	1	60290
1	EH2609	RADIO MODULE (SEE FIG 60290) (1)/(3)	1	60290
1	PB9916	CABLE, RADIO ANTENNA	1
2	EG4127	HARNESS - CAB OVERHEAD (2)	1
2	EG7491	HARNESS - CAB OVERHEAD (3)	1
3	SM5157	WARNING LIGHTS MODULE (SEE FIG 60290) (1)/(2)	1	60290
3	EH6407	WARNING LIGHTS MODULE (SEE FIG 60290) (1)/(3)	1	60290
4	SM5131	PLM/FILTER MINDER MODULE (SEE FIG 60290) (1)/(2)	1	60290
4	EH3428	PLM/FILTER MINDER MODULE (SEE FIG 60290) (1)/(3)	1	60290
5	EF9756	HARNESS - PAYLOAD METER CAB	1
6	SM5243	CLOSURE, FRONT	1
7	PB8658	PANEL SCREW	1
8	PB9829	PANEL SCREW (METRIC)	4
9	MM0207	LOCKWASHER - M6 (INTERNAL TOOTH)	6
10	31127R1	BOLT - M6 X 12	6
11	WB2669	CHART, GRADE SPEED	1
12	MM0347	MACHINE SCREW - M5 X .8 X 8	4
13	PB8319	LOUVER	8
14	PB8320	ADAPTOR	8
15	VM2951	SET SCREW - #6 - 32NC X 5/16"	16
16	SM2323	TRIM, EDGE	1
17	SM5273	HEATER/AIR CONDITIONER ASSM (SEE FIG 60293)	1	60293
18	PB9506	ELECTRONIC TREADLE - THROTTLE (SEE FIG 41060)	1	41060
19	PB9506	ELECTRONIC TREADLE - RETARDER (SEE FIG 41060)	1	41060
20	PC0418	BRAKE VALVE PEDAL ASSEMBLY (SEE INDEX)	1	55082
21	ED2863	RHEOSTAT, SWITCH CONTROL (3)	1
22	SM2339	SHEET, FORMED	2
23	SM0926	SCREW, METRIC	10
24	SM5244	VISOR, LENS	2
25	PB5957	KNOB (3)	1
NS\|31		NOTE: NS = NOT SHOWN	-1
NS\|32	SM4403	FLOOR MAT - FRONT	1
NS\|33	SM2187	FLOOR MAT - SEAT	1
NS\|34	SM2188	FLOOR MAT - REAR	1
NS\|35	SM5434	MAT, FOOT REST	1
NS\|36	SM5435	MATT, THRESHOLD	2
NS\|37	VW5312	COUNTER, LOAD	1
NS\|38	1126558C1	HOLDER, DOCUMENT	1
NS\|39	31127R1	CAPSCREW - M6 X 12	4
NS\|40	SM5245	CHAIN, BEADED	1
NS\|41		NOTE: (1) NOT SOLD AS AN ASSEMBLY. ORDER	-1
NS\|42		INDIVIDUAL COMPONENT PARTS.	-1
NS\|43		(2) EFFECTIVE WITH SERIAL SUFFIX AFE50-G ONLY.	-1
NS\|44		(3) EFFECTIVE WITH SERIAL SUFFIX AFE50-H ONLY.	-1

Komatsu AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES parts catalog PDF

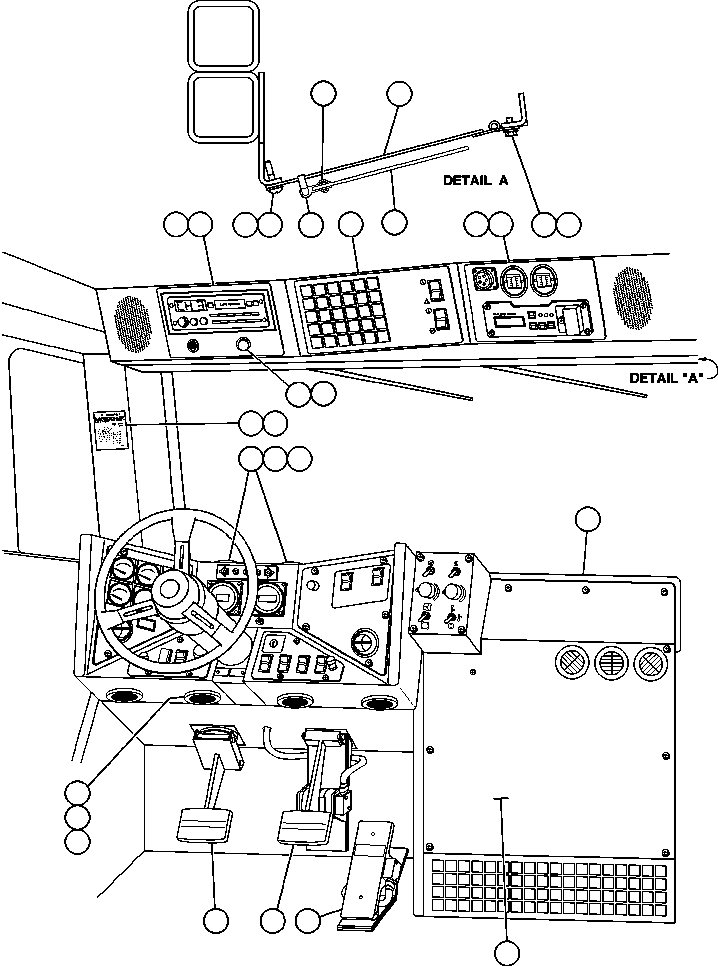

OPERATOR CONTROLS & OVERHEAD PANEL (41508) in AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES. Diagram image and parts list.
