AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES

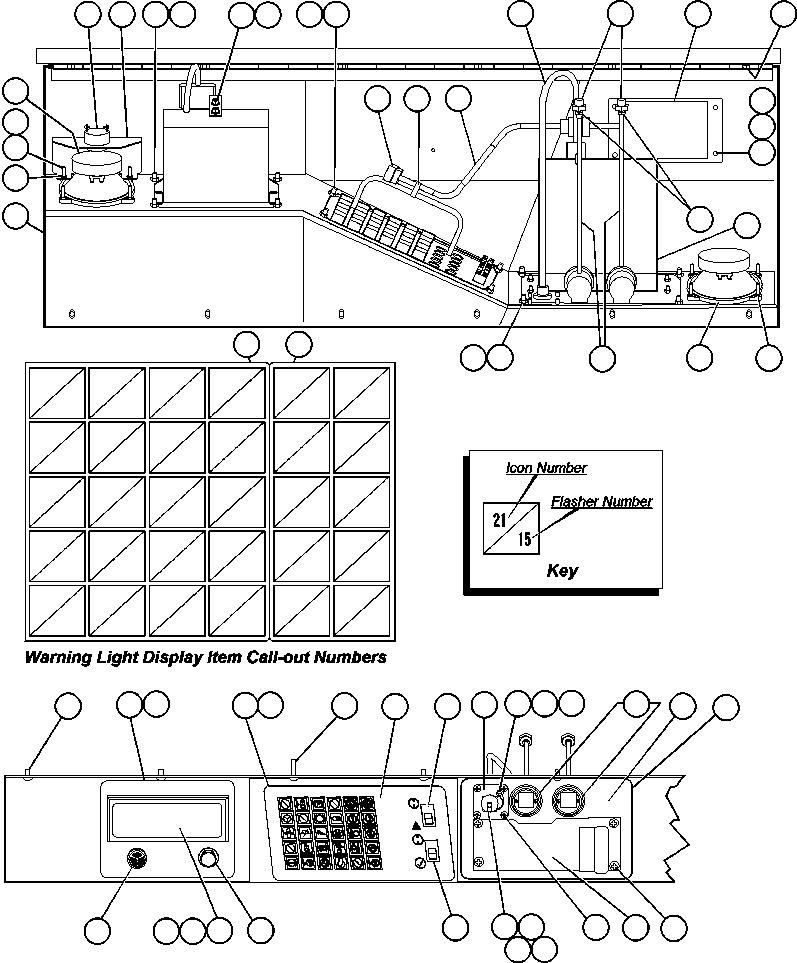

59 62 71 69 78 77 65 66 66 65 68 67 64 75 77 76 74 66 73 65 72 63 70 61 44 16 17 65 66 64 63 60 49 47 48 3 50 2 46 11 10 9 1 51 12 13 45 54 55 58 14 53 52 5 4 8 7 6 57 56 21 15 19 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 15 22 23 21 24 29 28 27 21 31 34 21 35 42 43 26 25 32 33 30 41 18 36 20 37 38 39 21 40

#	Part Number	Partname	Quantity
1	SM0926	SCREW, PANEL	5
2	SM2844	RADIO MODULE (1)/(2)	1
2	EH2609	RADIO MODULE (1)/(3)	1
3	SM4492	PLATE, MOUNTING (2)	1
3	SM5332	PLATE, MOUNTING (3)	1
4	SM2701	OVERLAY, LEXAN	1
5	PB9704	RADIO	1
5	PB9985	ANTENNA, RADIO (L DECK FRONT OUTSIDE CORNER)	1
5	PB9957	CABLE, EXT ANTENNA	1
6	SM4491	SUPPORT	1
7	PB9766	HARNESS, ADAPTOR	1
8	PB1951	SONALARM, SIGNAL (2)	1
8	PC0441	SONALARM, SIGNAL (3)	1
9	PB8658	MACHINE SCREW	1
10	SM5157	WARNING LIGHTS MODULE (1)/(2)	1
10	EH6407	WARNING LIGHTS MODULE (1)/(3)	1
11	SM2712	PLATE, WARNING LIGHT	1
12	SM2819	LEXAN OVERLAY, WARNING LIGHTS	1
13	PB6972	SWITCH, ROCKER	1
14	PB9723	SWITCH, ROCKER	1
15	SM4443	FLASHER ASSEMBLY - RED LENS	30
15	PB4847	LAMP	30
16	EG4131	SOCKET STRUCTURE (2)	1
16	EG7486	SOCKET STRUCTURE (3)	1
17	EG4132	SOCKET STR, INDICATOR LIGHTS (2)	1
17	EH1801	SOCKET STR, INDICATOR LIGHT (3)	1
18	SM4473	DECAL, CYLINDER OIL TEMPERATURE	1
19	SM5083	DECAL, CYLINDER OIL LEVEL	1
20	SM5052	DECAL, PARKING BRAKE	1
21	SM4315	DECAL, (NOT USED THIS APPLICATION)	5
22	SM4315	DECAL, (NOT USED THIS APPLICATION)	1
23	SM5065	DECAL, STEERING SYSTEM PRESSURE	1
24	SM5056	DECAL, BRAKE	1
25	SM4470	DECAL, BACKUP LIGHTS	1
26	SM5086	DECAL, MOTOR TEMPERATURE HIGH	1
27	SM5053	DECAL, ACCUM PRE-CHARGE PRESSURE	1
28	SM5089	DECAL, CIRCUIT BREAKER TRIPPED	1
29	SM5075	DECAL, BODY-UP	1
30	SM5072	DECAL, 5 MINUTE ENGINE SHUTDOWN TIMER	1
31	SM5093	DECAL, BLOWER FAULT	1
32	SM4472	DECAL, NO POWER	1
33	SM5084	DECAL, CYLINDER OIL FILTER	1
34	SM5070	DECAL, RETARDER	1
35	SM5071	DECAL, RETARD SPEED CONTROL	1
36	SM5057	DECAL, BRAKE OIL PRESSURE	1
37	SM5078	DECAL, FUEL	1
38	SM5063	DECAL, ENGINE SHUTDOWN	1
39	SM5076	DECAL, CHECK ENGINE	1
40	SM4315	DECAL, (NOT USED THIS APPLICATION)	1
41	SM4315	DECAL, (NOT USED THIS APPLICATION)	1
42	SM4315	DECAL, (NOT USED THIS APPLICATION)	1
43	SM4315	DECAL, (NOT USED THIS APPLICATION)	1
44	SM5131	PLM/FILTER MINDER MODULE (1)/(2)	1
44	EH3428	PLM/FILTER MINDER MODULE (1)/(3)	1
45	SM2707	PLATE, PLM MOUNTING	1
46	SM2784	PLATE, CONNECTOR MOUNTING	1
47	SF0542	MACHINE SCREW - #4NC - 40NC X 5/16"	1
48	VD7129	LOCKWASHER - #4	1
49	VN9717	NUT - #4 - 40NC	1
50	PB8987	GAUGE, RESTRICTION AIR CLEANER (2)	2
50	PC0462	GAUGE, RESTRICTION AIR CLEANER (3)	2
51	SM2708	LEXAN OVERLAY	1
52	SM0926	SCREW, PANEL	4
53	EH3485	PLM CONTROL BOX ASSEMBLY	1
53	562-86-37403	BOX, CONTROL	1
53	581-86-55710	BATTERY	1
53	EF9160	CABLE - CONTROLLER TO P.C. (4)	1
54	PB9862	COVER, PROTECTIVE	1
55	WA5641	MACHINE SCREW - #4 - 40NC X 3/8"	4
56	SM2117	PLATE, NUT	1
57	SM0721	GASKET	1
58	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	4
59	EF9159	HARNESS, PAYLOAD METER	1
60	PB9050	HOSE, VACUUM	2
61	PB9051	FITTING, SINGLE BARB W/FILTER	2
62	PB9056	FITTING, COMPRESSION - FEMALE	2
63	WA3367	NUT	10
64	SM5201	SPEAKER	2
65	MM0207	LOCKWASHER - M6	17
66	MM0176	NUT - M6 X 1.00	17
67	MM0206	LOCKWASHER - M5 (INTERNAL TOOTH)	1
68	MM0373	NUT - M5 X .80	1
69	31127R1	CAPSCREW - M6 X 12	6
70	SM5335	PANEL, OVERHEAD	1
71	PC0257	MODULE, DIMMER CONTROL (3)	1
72	31127R1	CAPSCREW - M6 X 12 (3)	4
73	MM0207	LOCKWASHER - M6 (3)	4
74	MM0176	NUT - M6 (3)	4
75	EG7488	HARNESS, DIMMER INTERFACE (3)	1
76	VZ4843	TYRAP (3)	10
77	SM5122	BRACKET (3)	1
78	PC0251	ALARM, SIGNAL (3)	1
NS\|93		NOTE: NS = NOT SHOWN	-1
NS\|94	TA0602	FITTING, NYLON	2
NS\|95	TA0603	FITTING, NYLON	2
NS\|96	TM4777	TUBE, NYLON	2
NS\|97		NOTE: (1) NOT SOLD AS AN ASSEMBLY. ORDER	-1
NS\|98		INDIVIDUAL COMPONENT PARTS.	-1
NS\|99		(2) EFFECTIVE WITH SERIAL SUFFIX AFE50-G ONLY.	-1
NS\|100		(3) EFFECTIVE WITH SERIAL SUFFIX AFE50-H ONLY.	-1
NS\|101		(4) INCLUDED WITH TOOL GROUP.	-1
