AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES

18 19 4 5 6 18 19 17 23 21 22 20 2 8 16 3 7 24 25 17 26 25 28 27 29 32 33 18 17 1 19 15 16 31 14 30 13 35 34 12 36 9 37 38 10 42 11 41 63 29 29 43 40 39 16 44 47 48 52 61 60 16 62 59 53 58 16 51 56 50 49 57 45 46 54 55 68 65 66 67 64

#	Part Number	Partname	Quantity
1	SM1082	INSTRUMENT PANEL, MOLDED	1
2	SM5164	DASH MODULE, UPPER - L.H. (1)	1
3	SM4358	PLATE, MOUNTING	1
4	EG4130	HARNESS	1
5	VH5017	STRAP, TIE	5
6	VZ5080	BULB	6
7	PB8551	GAUGE, OIL PRESSURE	1
8	PB6927	VOLTMETER	1
9	PB6982	INSERT, BLANK	2
10	PB7903	LOUVER, BALL	1
11	SM2785	HOURMETER	1
12	PB6926	GAUGE, FUEL LEVEL	1
13	PB6401	KIT, BEZEL OVERLAY	6
14	PB6303	GAUGE, WATER TEMPERATURE	1
15	SM2722	LEXAN OVERLAY	1
16	SM0926	SCREW - M6	18
17	PB8320	ADAPTOR	8
18	PB8319	LOUVER	8
19	SM5367	SCREW - M6	9
20	PB6402	KIT, BEZEL OVERLAY	2
21	PB8425	SPEEDOMETER, DIGITAL - KPH	1
22	TY8743	PANEL, BLANK INSERT	1
23	WA4605	SCREW, PHILLIPS - #10 - 24NC X 1/2"	2
24	TW3834	INDICATOR, HIGH BEAM	1
25	VZ5080	BULB	3
26	TW5472	INDICATOR, TURN	2
27	WA6639	LEXAN OVERLAY, TURN SIGNAL	1
28	PB6984	TACHOMETER - DIGITAL	1
29	PB8658	SCREW - M6 X 1	11
30	SM5165	DASH MODULE, UPPER - R.H. (1)/(2)	1
30	SM5458	DASH MODULE, UPPER - R.H. (1)/(3)	1
31	SM4359	PLATE, MOUNTING (2)	1
31	SM5328	PLATE, MOUNTING (3)	1
32	PB7019	LIGHT, INDICATOR	1
33	VL6234	BULB	1
34	PB6972	SWITCH, ROCKER	2
35	EG4134	HARNESS (2)	1
35	EG8345	HARNESS (3)	1
36	VH5017	STRAP, TIE	5
37	WA2687	LEXAN OVERLAY	1
38	PB7903	LOUVER, BALL	1
39	SM5168	DASH MODULE, LOWER - R.H. (1)/(2)	1
39	SM5296	DASH MODULE, LOWER - R.H. (1)/(3)	1
40	SM4356	PLATE, MOUNTING	1
41	PB7019	LIGHT, INDICATOR	1
42	VL6234	BULB	1
43	WA2686	LEXAN OVERLAY	1
44	PB6972	SWITCH, ROCKER	3
45	EG8346	HARNESS (2)	1
45	EG8948	HARNESS (3)	1
46	VH5017	STRAP, TIE	5
47	PB9752	SWITCH, ROCKER	1
48	VM7105	SWITCH, KEY	1
49	SM1088	PLATE, R.H. RETAINER	1
50	TX7829	SEAL, STEERING COLUMN	1
51	SM1086	PLATE, L.H. RETAINER	1
52	SM5166	DASH MODULE, LOWER - L.H. (1)/(2)	1
52	SM5317	DASH MODULE, LOWER - L.H. (1)/(3)	1
53	SM4357	PLATE, MOUNTING	1
54	EG4129	HARNESS	1
55	VH5017	STRAP, TIE	5
56	TW5117	RHEOSTAT	1
57	PB0529	KNOB	1
58	TY9878	CONTROL, ELECTRIC WIPER	1
59	PB7026	SWITCH, ROCKER	1
60	PB6343	PLUG, BUTTON	1
61	PB7019	LIGHT, INDICATOR	1
62	VL6234	BULB	1
63	SM2754	LEXAN OVERLAY, SWITCH MODULE (2)	1
63	SM5326	LEXAN OVERLAY, SWITCH MODULE (3)	1
64	SM2783	HOSE	2
65	CC6103	CLAMP	4
66		(NOT USED THIS APPLICATION)	-1
67		(NOT USED THIS APPLICATION)	-1
68		(NOT USED THIS APPLICATION)	-1
NS\|76		NOTE: NS = NOT SHOWN	-1
NS\|77	VS8192	BOARD, TERMINAL (INSTR PANEL LIGHTS)	1
NS\|78	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	2
NS\|79	DC3101	LOCKWASHER - #10	2
NS\|80		NOTE: (1) NOT SOLD AS AN ASSEMBLY.	-1
NS\|81		ORDER INDIVIDUAL COMPONENT	-1
NS\|82		PARTS.	-1
NS\|83		(2) EFFECTIVE WITH SERIAL SUFFIX AFE50-G ONLY.	-1
NS\|84		(3) EFFECTIVE WITH SERIAL SUFFIX AFE50-H ONLY.	-1

Komatsu AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES parts catalog PDF

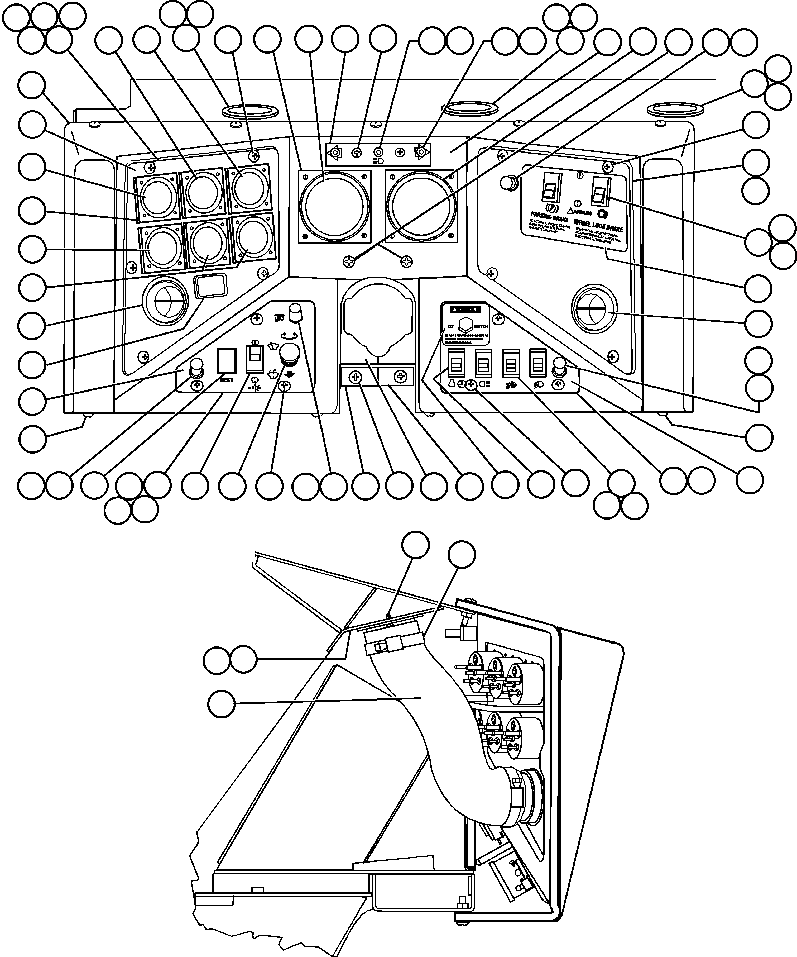

INSTRUMENT PANEL ASSEMBLY (55074) in AFE50-G/H 830E S/N A30570-A30573, A30575-A30583 & A30586-A30588 LOS PELAMBRES. Diagram image and parts list.
