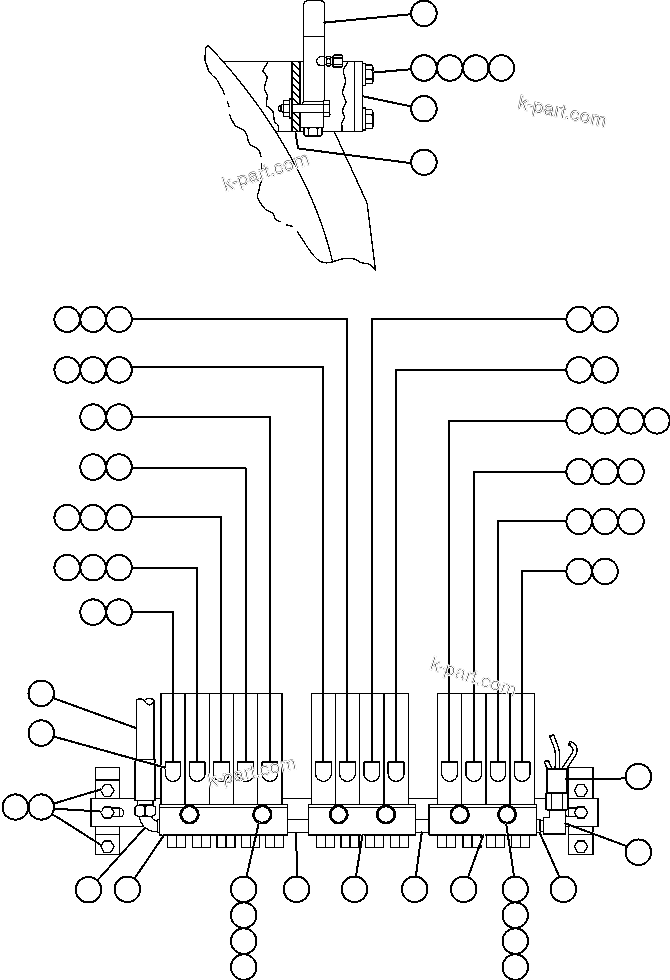

AUTOMATIC LUBRICATION SYSTEM - 1 | AFE50-CZ 830E S/N A30886 I.O.C.C.

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CZ 830E S/N A30886 I.O.C.C.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VW7989	INJECTOR (4 PIECE) (1)	2
?	XA2520	NIPPLE AND CAP ASSEMBLY	8
?	TA4411	INJECTOR (5 PIECE) (1)	1
?	XA2520	NIPPLE AND CAP ASSEMBLY	5
?	VW7990	CAP, PROTECTIVE	13
?	MM0611	CAPSCREW - M10 X 1.50 X 60	6
?	MM0461	FLAT WASHER - M10	6
?	MM0178	NUT, HEX - M10 X 1.50	6
?	EJ4053	MOUNT, INJECTORS	1
?	EG0583	PLATE, COVER	1
?	TA1232	SPACER	2
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
?	C1624	CAPSCREW - 1/2" - 13NC X 4"	2
?	C1540	LOCKWASHER - 1/2"	6
?	R2508	TEE	1
?	C5769	PLUG	1
?	R2510	NIPPLE	1
?	TB8803	NIPPLE	2
?	PC1654	SWITCH, PRESSURE	1
?	WB0252	FITTING, ELBOW - 90 DEG	13
?	HA0478	HOSE (SEE REF. NO. 1 ON PRECEDING PAGE)	1
?	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
?	C1231	COUPLING (AT BOTTOM OF REAR SUSPENSIONS)	2
?	DC5608	NIPPLE (AT BOTTOM OF REAR SUSPENSIONS)	2
?	HA1517	HOSE (TO TOP OF HOIST CYLINDERS)	2
?	WB0454	FITTING, STRAIGHT ADAPTER (AT TOP OF HOIST CYLINDERS)	2
?	DC5608	NIPPLE (TO TOP OF HOIST CYLINDERS)	2
?	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
?	C1231	COUPLING (AT BOTTOM OF HOIST CYLINDERS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
?	HA8283	HOSE (TO DRIVE AXLE PIVOT PIN)	1
?	WB0454	FITTING, STRAIGHT ADAPTER (AT DRIVE AXLE PIVOT PIN)	1
?	C1231	COUPLING (AT DRIVE AXLE PIVOT PIN)	1
?	WB0252	FITTING, ELBOW - 90 DEG (AT DRIVE AXLE PIVOT PIN)	1
?	HA1413	HOSE (TO ANTI-SWAY BARS)	2
?	WB0281	FITTING, ELBOW - 45 DEG (AT ANTI-SWAY BARS)	2
?	VD4661	HOSE (TO BODY PIVOTS)	2
?	WB0454	FITTING, STRAIGHT ADAPTER (AT TOP OF REAR SUSPENSIONS)	2
?	DC5608	NIPPLE (AT TOP OF REAR SUSPENSIONS)	2
?	HA1416	HOSE (TO TOP OF SUSPENSIONS)	2
?	HC1580	BUSHING (AT BODY PIVOT PINS)	2
?	WB0252	FITTING, ELBOW - 90 DEG (AT BODY PIVOT PINS)	2
?	R0086	BUSHING, PIPE	1
?	WB0262	FITTING, ELBOW - 90 DEG	1
?	MM0606	CAPSCREW - M10 X 1.50 X 30	6
?	MM0471	LOCKWASHER - M10	12
?		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1
