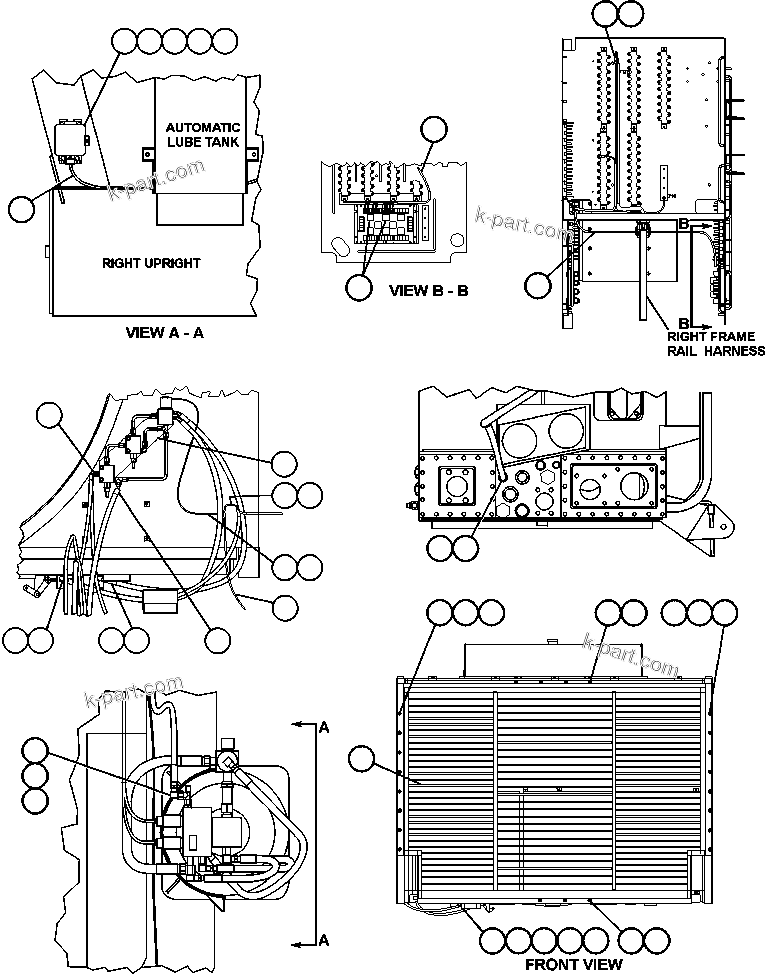

RADIATOR SHUTTER INSTALLATION | AFE50-CZ 830E S/N A30886 I.O.C.C.

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-CZ 830E S/N A30886 I.O.C.C.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	H0594	CAPSCREW - 7/16" - 14NC X 1 1/4"	23
?	WA4727	FLAT WASHER - 7/16" (HARDENED)	39
?	VC5749	NUT - 7/16" - 14NC	16
?	PC1670	SHUTTER ASSEMBLY (SEE INDEX)	1	41590
?	TF6925	CLAMP, VINYL - 3/4" I.D.	3
?	MM0647	STUD, WELD - M10 X 20	3
?	MM0461	FLAT WASHER - M10	3
?	MM0178	NUT, HEX - M10 X 1.50	3
?	VZ4843	TIE, CABLE	4
?	WB0381	FITTING, TEE	1
?	WB0372	FITTING, ELBOW - 90 DEG	1
?	HA7812	HOSE - SUPPLY	1
?	EH5421	SWITCH BOX ASSEMBLY (SEE INDEX)	1	41538
?	TM6541	PAD, TAPPED	4
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	TR1307	FLAT WASHER - 1/4"	4
?	EH5424	HARNESS, SHUTTER ENABLE SWITCH	1
?	EH3414	SHUTTER CONTROL VALVE ASSEMBLY (SEE INDEX)	1	41537
?	DL4172	SLEEVE, INSULATING	3
?	SF9896	KNIFE, DISCONNECT - 14-16 AWG	3
?	HA7811	HOSE - RETURN	1
?	WB0261	FITTING, ELBOW - 90 DEG	2
?	HA5753	HOSE	2
?	WB0383	FITTING, TEE	1
?	EH5417	HARNESS, SHUTTER CONTROL	1
?	SM3189	RELAY	2
?		NOTE: NS = NOT SHOWN	-1
?	TG2568	CLAMP, VINYL - 7/8" I.D.	16
?	VH2585	TERMINAL, RING - 16-14 AWG (1)	1
?		NOTE: (1) NOT PART OF EH3414.	-1
?		USED FOR SOLENOID GROUND WIRE.	-1
