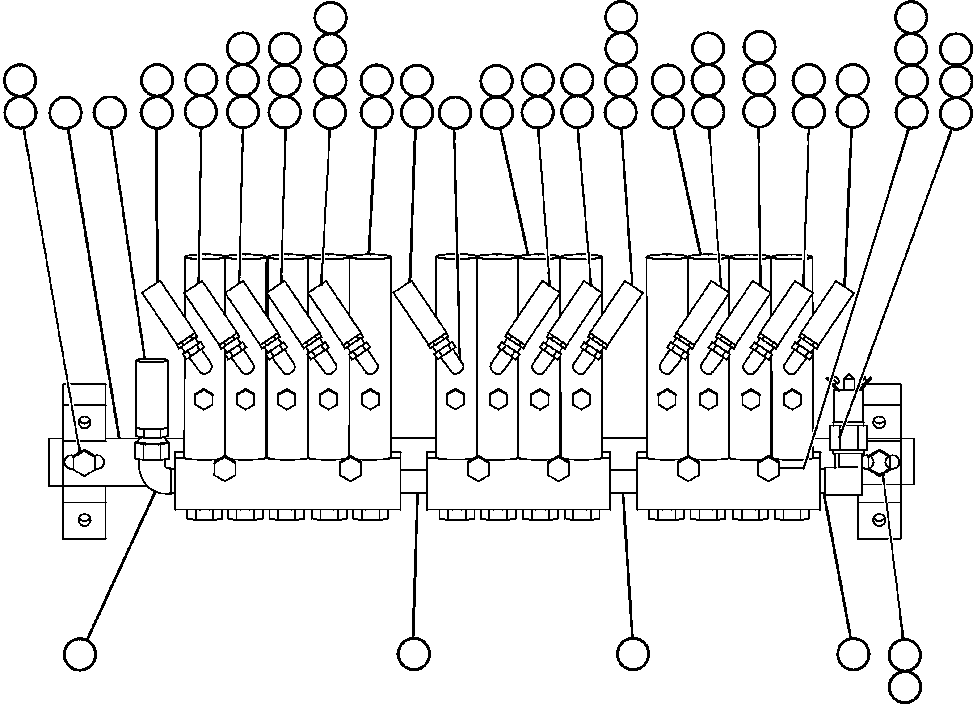

AUTOMATIC LUBRICATION SYSTEM - 2 | AFE52-J 930E-3 S/N A30336-A30340 KLEMKE

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
1	TA4411	INJECTOR, REAR (5 PIECE) (1)	1
1	XA2520	NIPPLE & CAP ASSEMBLY	5
2	VW7989	INJECTOR, REAR (4 PIECE) (1)	2
2	XA2520	NIPPLE & CAP ASSEMBLY	8
3	VW7990	CAP, PROTECTIVE	13
4	WB0252	FITTING, ELBOW - 90 DEG	13
5	EJ4053	PLATE, MOUNTING	1
6	MM0606	CAPSCREW - M10 X 1.50 X 30	2
7	MM0471	LOCKWASHER - M10	8
8	MM0611	CAPSCREW - M10 X 1.50 X 60	6
9	MM0461	FLAT WASHER - M10	6
10	MM0178	NUT - M10 X 1.50	6
11		(NOT USED THIS APPLICATION)	-1
12	TB8803	NIPPLE, PIPE - 3/8"	2
13	WB0262	FITTING, ELBOW - 90 DEG	1
14	HA6448	HOSE (TO JUNCTION AT HORSECOLLAR)	1
15	HA0197	HOSE (TO TOP OF REAR SUSPENSIONS)	2
16	WB0499	FITTING, ELBOW - 90 DEG (AT TOP OF REAR SUSPENSIONS)	2
17	HA1413	HOSE (TO BOTTOM OF REAR SUSPENSIONS)	2
18	WB0499	FITTING, ELBOW - 90 DEG (AT BOTTOM OF REAR SUSPENSIONS)	2
19	VD4661	HOSE (TO BODY PIVOT PINS)	2
20	HC1580	BUSHING, PIPE - 1/8" X 1/4" (AT BODY PIVOT PINS)	2
21	WB0284	FITTING, ELBOW - 45 DEG (AT BODY PIVOT PINS)	2
22	HA0394	HOSE (TO TOP OF HOIST CYLINDERS)	2
23	WB0454	FITTING, STRAIGHT (AT TOP OF HOIST CYLINDERS)	2
24	WB0252	FITTING, ELBOW - 90 DEG (AT TOP OF HOIST CYLINDERS)	2
25	HA0994	HOSE (TO BOTTOM OF HOIST CYLINDERS)	2
26	DC5608	NIPPLE (AT BOTTOM OF HOIST CYLINDERS)	2
27	C1231	COUPLING, PIPE (AT BOTTOM OF HOIST CYLINDERS)	2
28	WB0252	FITTING, ELBOW - 90 DEG (AT BOTTOM OF HOIST CYLINDERS)	2
29	HA0570	HOSE (TO R.H. END OF SWAY BAR)	1
30	WB0281	FITTING, ELBOW - 45 DEG (AT R.H. END OF SWAY BAR)	1
31	HA2965	HOSE (TO DRIVE CASE PIVOT)	1
32	WB0255	FITTING, ELBOW - 90 DEG (AT DRIVE CASE PIVOT)	1
33	HA1413	HOSE (TO L.H. END OF SWAY BAR)	1
34	WB0281	FITTING, ELBOW - 45 DEG (AT L.H. END OF SWAY BAR)	1
35	PC1295	SWITCH, PRESSURE	1
36	R0086	BUSHING, PIPE - 1/4" X 3/8"	1
37	VG2841	ELBOW, STREET	1
NS\|40		NOTE: NS = NOT SHOWN	-1
NS\|41	EG0583	PLATE, COVER (REAR INJECTORS)	1
NS\|42	MM0606	CAPSCREW - M10 X 1.50 X 30	4
NS\|43	MM0471	LOCKWASHER - M10	4
NS\|44	WB0499	FITTING, ELBOW - 90 DEG	1
NS\|45	WB0501	FITTING, ELBOW - 90 DEG	1
NS\|46	WB0466	FITTING, STRAIGHT	1
NS\|47	WB0581	FITTING, STRAIGHT	1
NS\|48	WB0403	FITTING, UNION	1
NS\|49		NOTE: (1) FOR SINGLE INJECTOR, ORDER VS1947.	-1
