AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY

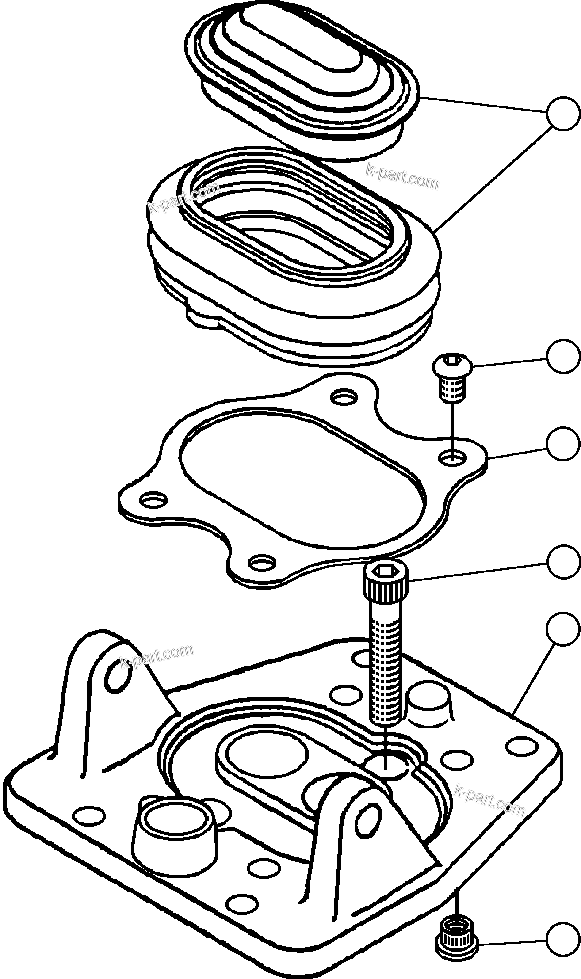

Komatsu parts book diagram for AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY: BRAKE VALVE SUB-ASSEMBLY (XA2704)

? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	VE9420	BOOT/CAP ASSEMBLY	1
	?	VE9411	BOOT (1)	1
	?		CAP (2)	1
	?	VE8544	SCREW	4
	?	VE8545	PLATE, RETAINER	1
	?	VE8546	SCREW	2
	?	VE9419	BASE, ACTUATOR	1
	?	VE8547	INSERT	4
	?	VE8530	NOTE: (1) INCLUDED IN VE8530 BOOT KIT.	-1
	?		(2) NOT SERVICED SEPARATELY.	-1

Komatsu AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY parts catalog PDF

BRAKE VALVE SUB-ASSEMBLY (XA2704) (55112) in AFE59-A 930E-4 S/N A30465 - A30466 CODELCO GABY. Diagram image and parts list.
