AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM3362	HARNESS, R.H. DECK LIGHTING	1
?	TV3461	CAPSCREW - 3/8" - 16NC X 5/8"	1
?	EK7521	WIRE, GROUND	1
?	MM0471	LOCKWASHER - M10	16
?	MM0461	FLAT WASHER - M10	10
?	MM0178	NUT - M10 X 1.50	24
?	WB1304	CLAMP, CUSHIONED - 9/16"	5
?	WB3093	CLAMP, CUSHIONED - 1"	6
?	AK7519	FLOOD LIGHT ASSEMBLY (SEE FIG 42185)	1	42185
?	TY0616	BRACKET, MOUNTING	1
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	3
?	TR4436	FLAT WASHER - 3/8"	5
?	TC1231	LOCKWASHER - 3/8"	3
?	VY2784	GROMMET, RUBBER	1
?	WB3097	CLAMP, CUSHIONED - 1/2"	10
?	TC1233	NUT - 3/8" - 16NC	2
?	EG9194	MOUNT	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	2
?	VG7811	LOCKNUT - 1/2" - 13NC	2
?	PC1867	LIGHT, TURN SIGNAL (LED)	1
?	AK4701	LENS/REFLECTOR UNIT - AMBER	1
?	AK4702	HOUSING, FLANGE	1
?	MM0343	MACHINE SCREW - M4 X .7 X 16	3
?	MM0379	LOCKWASHER - M5 (EXTERNAL TOOTH)	3
?	MM0373	NUT - M5 X .8	3
?	EG1107	PLATE, MOUNTING	1
?	MM0593	CAPSCREW - M8 X 1.25 X 20	4
?	MM0460	FLAT WASHER - M8	4
?	MM0470	LOCKWASHER - M8	4
?	VH8043	GROMMET, RUBBER	2
?	C1606	CAPSCREW - 3/8" - 16NC X 2"	1
?	MM0603	CAPSCREW - M10 X 1.50 X 16	4
?	EK7522	WIRE, GROUND	1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

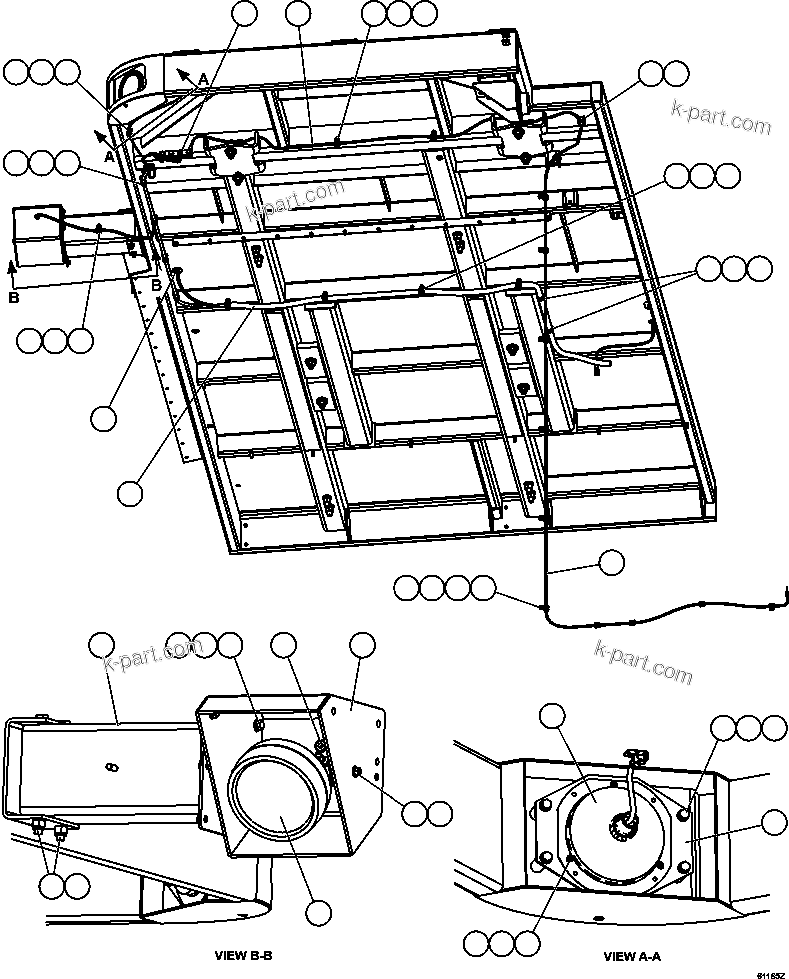

R.H. DECK ELECTRICAL GROUP (61165) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
