AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	7826-12-2302	CONTROLLER, ORBCOMM	1
?	WB2879	NAME PLATE - ORBCOMM MODEM	1
?	MM0594	CAPSCREW - M8 X 1.25 X 25	4
?	MM0470	LOCKWASHER - M8	18
?	MM0460	FLAT WASHER - M8	18
?	EK6252	NAME PLATE - 5VDC DIST	1
?	TA7409	INSULATOR, STAND-OFF	1
?	ED0913	ROD, THREADED - 1/4"	1
?	TD1549	NUT - 1/4" - 20NC	1
?	DC3584	LOCKWASHER - 1/4"	2
?	TR1307	FLAT WASHER - 1/4"	2
?	EK6251	NAME PLATE - 18VDC DIST	1
?	PB7202	INSULATOR, GLASTIC	1
?	ED7468	ROD, THREADED - 5/16"	1
?	TD1684	NUT - 5/16" - 18NC	1
?	SC4174	LOCKWASHER - 5/16"	2
?	TV0177	FLAT WASHER - 5/16"	2
?	EK0742	BRACKET	1
?	MM0177	NUT - M8 X 1.25	2
?	WB3655	NAME PLATE - DATA PORTS	1
?	PB8256	SCREWLOCK, FEMALE	3
?	PC1810	A.I.D. MODULE	1
?	VE3422	BOX (W/O CARDS)	1
?	BF1539	CHASSIS ASSEMBLY	1
?	BF1540	CARD CAGE ASSEMBLY	1
?	BF1541	MOTHERBOARD ASSEMBLY	1
?	BF1542	FRONT PANEL ASSEMBLY	1
?	VE1407	KNOB	1
?	BF1552	RING, RETAINING	1
?	VJ8805	CARD, FLASHER/COOLANT LEVEL	1
?	VJ9023	CARD, DIODE (W/ SOUND)	1
?	VJ9024	CARD, DIODE (W/O SOUND)	1
?	PB5672	CARD, SINGLE TEMPERATURE LATCH	1
?	PC0040	CARD, OIL LEVEL/TEMPERATURE	1
?	VJ9025	CARD, DUAL HOT SWITCH INVERTER	1
?	EK3933	NAME PLATE - AID	1
?	MM0019	CAPSCREW - M6 X 1.00 X 16	4
?	MM0469	LOCKWASHER - M6	4
?	MM0459	FLAT WASHER - M6	4
?	EJ3060	PAYLOAD METER III ASSEMBLY	1
?	EK3934	NAME PLATE - PLM III	1
?	MM0401	CAPSCREW - M8 X 1.25 X 90	12
?	EJ9089	INTERFACE MODULE (UNPROGRAMMED)	1
?	EK2723	NAME PLATE - INTERFACE MODULE	1
?	7826-17-4501	CONTROLLER, VHMS	1
?	WB2838	NAME PLATE - VHMS COMMON CONTROLLER	1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

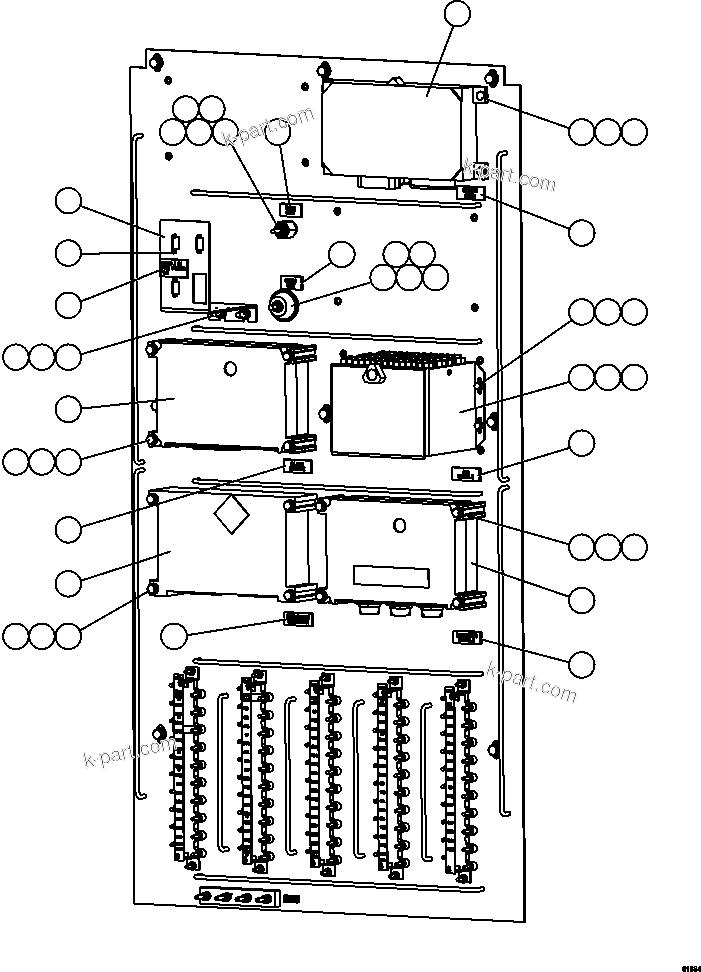

AUXILIARY CONTROL CABINET - RIGHT SIDE WALL 1/2 (61864) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
