AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	XA4405	ALTERNATOR, BATTERY CHARGING (1)	1
?	BF4993	BELT, ALTERNATOR DRIVE	1
?	CH5423	CABLE, ALTERNATOR - RED	1
?	CH5712	CABLE, ALTERNATOR - BLACK	1
?	XA4488	PUMP, PRELUBE (1)	1
?	XB2163	HARNESS, ENGINE (EXTERNAL)	1
?	XA3660	MOTOR, CRANKING	2
?	PC0607	SENDER, COOLANT TEMPERATURE	1
?	WB1185	WASHER - M22	1
?	MM0471	LOCKWASHER - M10	19
?	MM0178	NUT - M10 X 1.50	19
?	MM0461	FLAT WASHER - M10	5
?	WB1304	CLAMP, CUSHIONED - 9/16"	21
?	MM0713	FLAT WASHER - M10 (HARDENED)	14
?	WB3093	CLAMP, CUSHIONED - 1"	5
?	EL1939	ROD, THREADED	8
?	EJ3891	CLAMP ASSEMBLY	26
?	WB3098	CLAMP, CUSHIONED - 3/8"	20
?	MM0462	FLAT WASHER - M12	10
?	MM0459	FLAT WASHER - M6	14
?	MM0176	NUT - M6 X 1.00	12
?	EM3364	ROD, THREADED	6
?	CH4320	CABLE, PRELUBE PUMP - BLACK	1
?	CH4452	CABLE, PRELUBE PUMP - RED	1
?	08038-02027	CAP, TERMINAL	4
?		SOLENOID, PRELUBE PUMP (1)	1
?	08038-00519	CAP, TERMINAL	2
?	EM4684	FUSABLE LINK	1
?	PC2252	FUSE - 150 AMP	2
?	XB2143	SHEET, BENT	2
?	MM0025	CAPSCREW - M6 X 1.00 X 20	2
?	MM0469	LOCKWASHER - M6	2
?	WB0904	PLATE, NUT	1
?	WA5642	MACHINE SCREW - #4 - 40NC X 1/2"	4
?	XB4061	HARNESS, ENGINE	1
?	HA3671	HOSE	1
?	TG3393	FITTING, ELBOW - 90DEG	1
?	PC0122	ADAPTER	1
?	PC0119	SEAL, ADAPTER	1
?		FITTING, TEE (1)	1
?	EM3100	HARNESS, PRELUBE	1
?		NOTE: (1) SUPPLIED WITH ENGINE	-1

Komatsu AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT parts catalog PDF

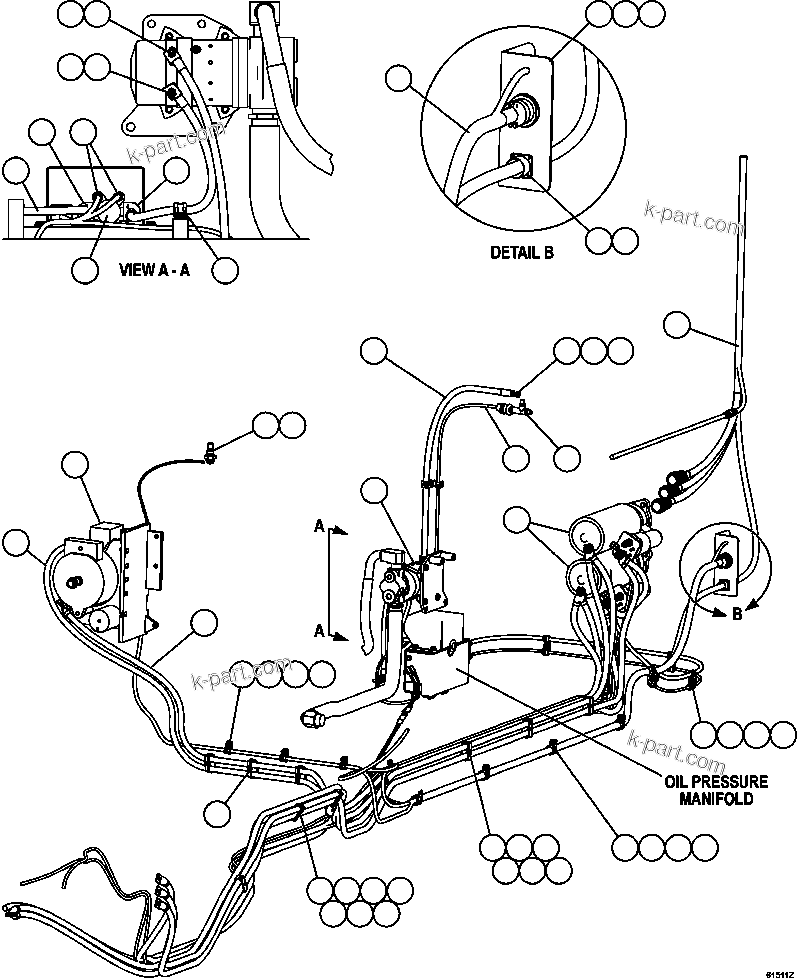

ENGINE WIRING (61511) in AFE59-CY 930E-4 S/N A30990 & A30991 HYCROFT. Diagram image and parts list.
