AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	AK7503	FLOODLIGHT ASSEMBLY (SEE FIG 42185)	2	42185
?	MM0593	CAPSCREW - M8 X 1.25 X 20 (1)	2
?	PB8735	SWITCH, ENGINE SHUTDOWN	1
?	VA2828	SWITCH, FLUSH	1
?	VA2826	COVER, SWITCH	1
?	VN7129	MACHINE SCREW - #6 - 32NC X 5/8"	8
?	DF4944	LOCKWASHER - #6	8
?	MM0358	MACHINE SCREW - M6 X 1.00 X 16	4
?	MM0469	LOCKWASHER - M6	4
?	TZ0880	COVER, SWITCH	1
?	PB4043	GASKET, RUBBER	1
?	EM2230	HARNESS, JUMPER - LADDER LIGHT SWITCH	1
?	EM2231	HARNESS, JUMPER - ENGINE SHUTDOWN SWITCH	1
?	XB5170	BRACKET, SWITCH MOUNT	1
?	MM0605	CAPSCREW - M10 X 1.50 X 25	2
?	MM0471	LOCKWASHER - M10	2
?	MM0461	FLAT WASHER - M10	5
?	PB9072	CONDULET	2
?	08193-20012	CLIP	2
?	MM0604	CAPSCREW - M10 X 1.50 X 20	2
?	EM3855	BRACKET	1
?	MM0626	CAPSCREW - M12 X 1.75 X 90	4
?	MM0714	FLAT WASHER - M12	8
?	MM0694	LOCKNUT - M12 X 1.75	4
?	WB1301	CLAMP, CUSHIONED - 1/4"	1
?	MM0178	NUT - M10 X 1.50	1
?		NOTE: (1) NOT INCLUDED WITH AK7503 FLOODLIGHT.	-1
?		ORIGINAL MOUNTING CAPSCREW IS TOO LONG.	-1

Komatsu AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS parts catalog PDF

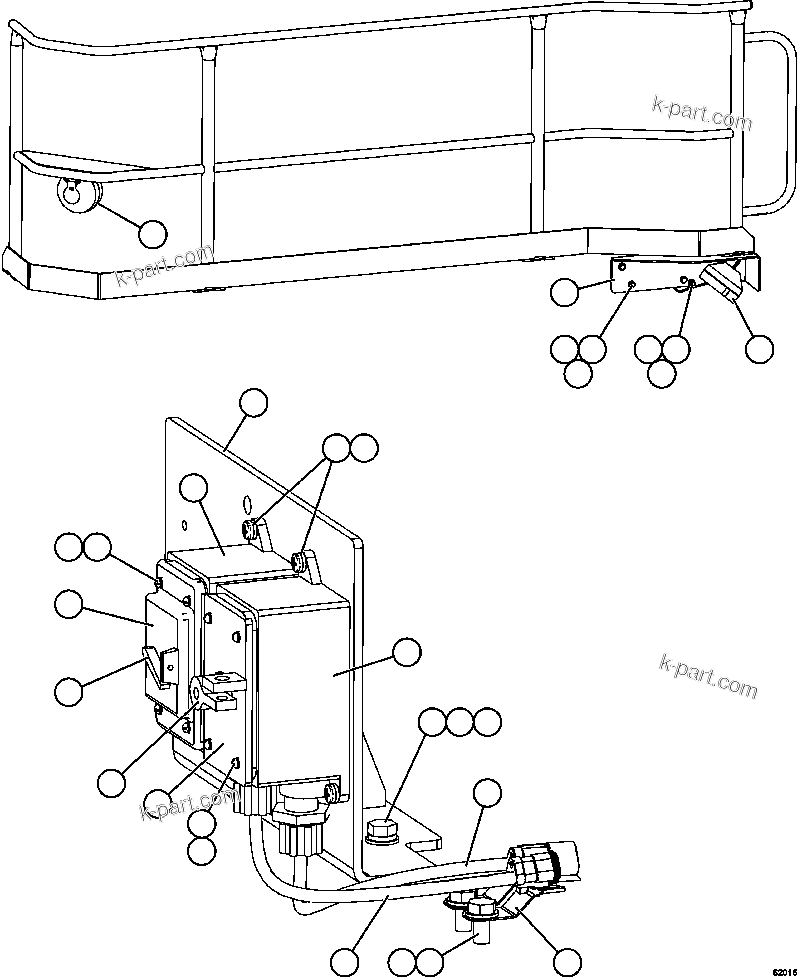

LADDER LIGHT/ENGINE SHUTDOWN SWITCHES (62016) in AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS. Diagram image and parts list.
