AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM3268	HEADLIGHT ASSEMBLY (HID) - LOW BEAM (SEE FIG 62251)	4	62251
?	PC2617	HEADLIGHT ASSEMBLY - LOW BEAM (SEE FIG 42268)	4	42268
?	58D-06-10080	HEADLIGHT ASSEMBLY (LED) - LOW BEAM	4
?	EM3267	HEADLIGHT ASSEMBLY (HID) - HIGH BEAM (SEE FIG 62251)	4	62251
?	PC2618	HEADLIGHT ASSEMBLY - HIGH BEAM (SEE FIG 42268)	4	42268
?	58D-06-10070	HEADLIGHT ASSEMBLY (LED) - HIGH BEAM	4
?	WB3524	SCREW, HEX HEAD - #12 - 14NC X 3/4"	40
?	58F-06-00560	HARNESS, GRILLE - LH	1
?	58F-06-00550	HARNESS, GRILLE - RH	1
?	WB1304	CLAMP, CUSHIONED - 9/16"	14
?	MM0178	NUT - M10 X 1.50	38
?	MM0461	FLAT WASHER - M10	38
?	EM3269	FOG LIGHT ASSEMBLY (HID) (SEE FIG 62251)	2	62251
?	PC2619	FOG LIGHT ASSEMBLY (SEE FIG 42268)	2	42268
?	58D-06-10060	FOG LIGHT ASSEMBLY (LED)	2
?	WB1300	CLAMP, CUSHIONED - 5/8"	20
?	EM1393	SPACER	2
?	WB0810	GROMMET	2
?	WB3098	CLAMP, CUSHIONED - 3/8"	4
?	MM0471	LOCKWASHER - M10	38
?	EJ8368	BRACKET, GRILLE HARNESS SOCKET	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	4
?	MM0469	LOCKWASHER - M6	4
?	MM0459	FLAT WASHER - M6	4
?	WA4513	SCREW, SELF-TAPPING - #10 - 24NC X 1/2"	32
?	EM9230	PLATE, COVER	2

Komatsu AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS parts catalog PDF

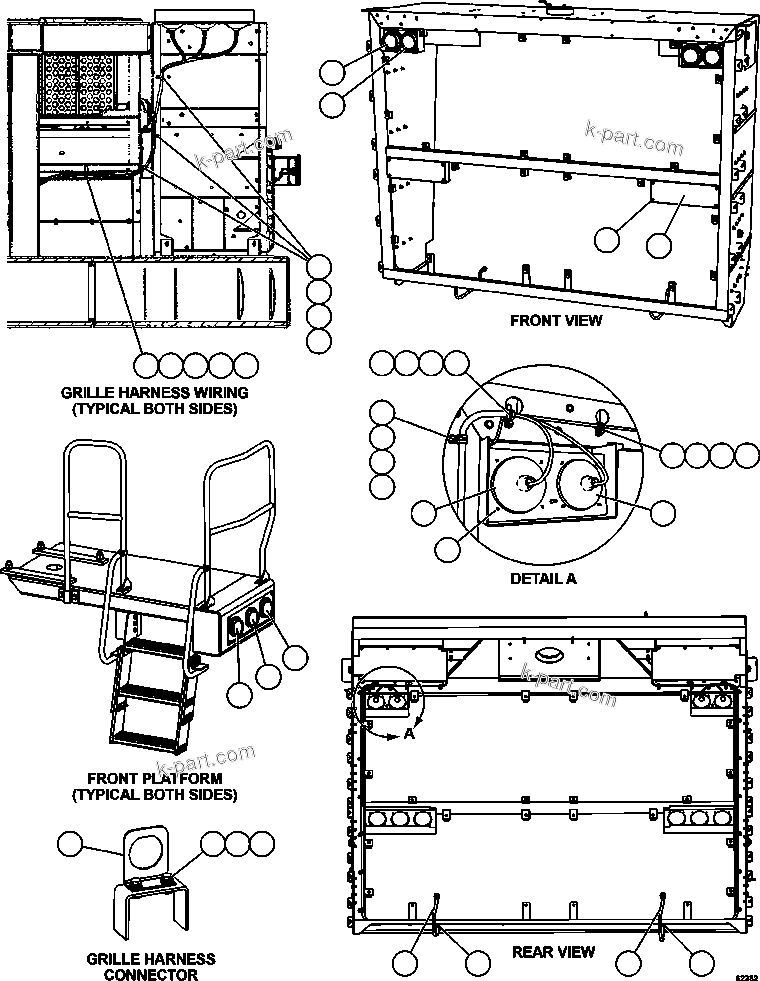

HEADLIGHT / FOG LIGHT INSTALLATION (62382) in AFE62-BB 930E-4SE S/N A31791 - A31792 & A31813 - A31814 LAS BAMBAS. Diagram image and parts list.
