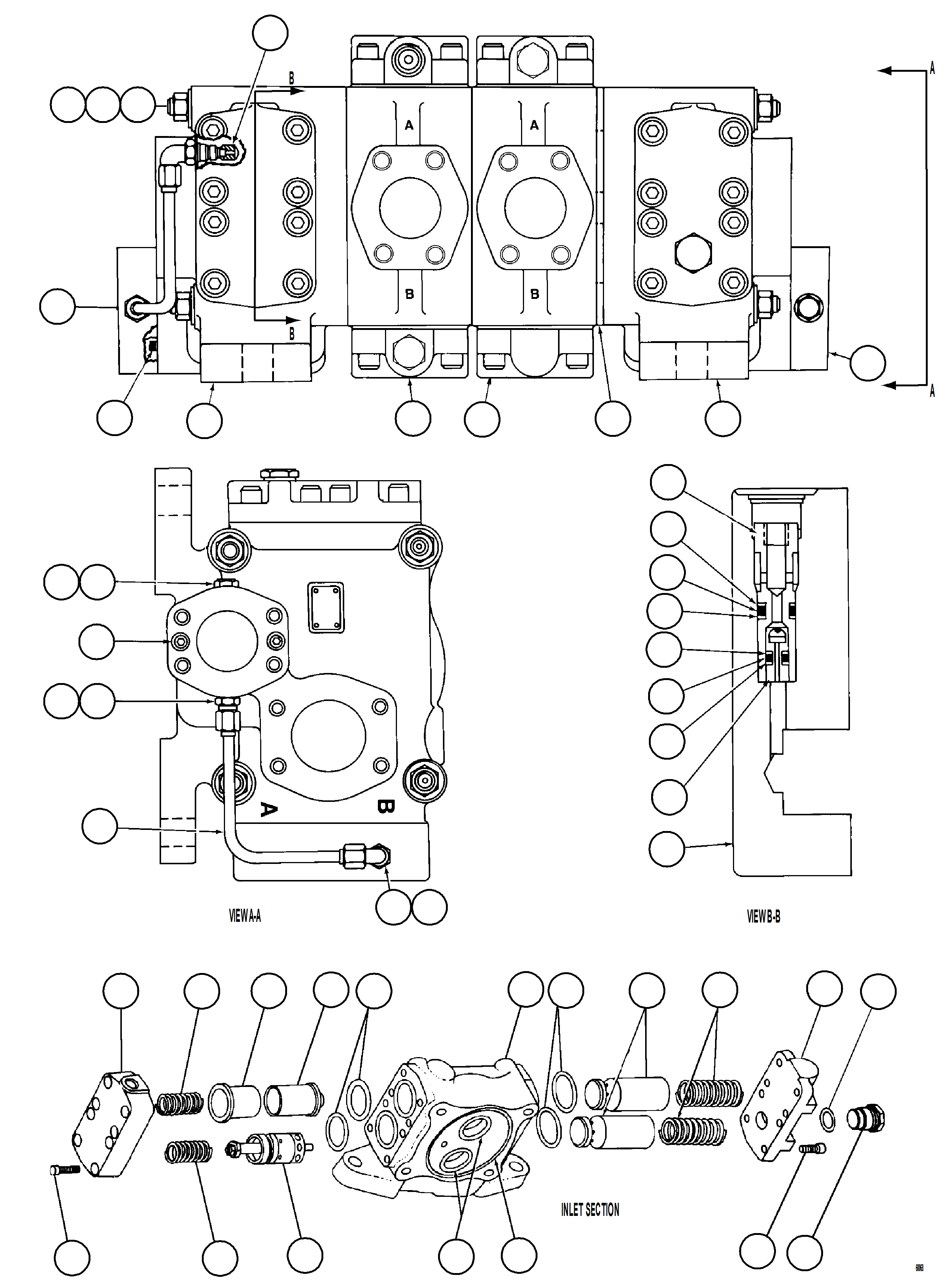

AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA

11 23 5 35 34 33 32 6 7 25 24 26 27 28 27 29 30 31 8 17 18 19 18 20 21 20 22 23 10 13 10 16 9 15 14 10 1 36 12 4 37 39 38 4 2 3 11

#	Part Number	Partname	Quantity	Reference
1	BF3045	TIE ROD	4
2	VE3807	WASHER, COMPRESSION	8
3	VE3804	LOCKNUT	8
4	BF3049	INLET SECTION ASSEMBLY	2
5	VJ2002	CAPSCREW	16
6	DF6928	CAPSCREW - 1/2" - 13NC X 1 3/4"	48
7	VJ0011	PLUG	2
8	VJ0435	O-RING (2)/(3)	2
9	VE3551	PLUG	2
10	VE3565	O-RING (2)/(3)	6
11	VE3563	CAP, FLANGE	2
12	VE3553	O-RING (2)/(3)	2
13	VE3559	FITTING	2
14	VE3564	TUBE	2
15	VE3561	FITTING	2
16	VE3803	CAPSCREW	4
17	VE3560	SLEEVE (2)	2
18	VE3554	RING, BACKUP (2)/(3)	4
19	VE3552	O-RING (2)/(3)	2
20	1133800C1	RING, BACKUP (2)/(3)	4
21	VE3526	O-RING (2)/(3)	2
22	VE3558	POPPET, RESTRICTION (2)	2
23	VE3562	COVER	2
24	58F-60-40400	SPRING	2
24	58F-60-40410	SPRING	1
25	VJ1989	SLEEVE	2
26	VE3609	RELIEF VALVE ASSEMBLY (2)	2
27	VE3533	O-RING (2)/(3)	8
28	BF3046	HOUSING, INLET (1)	2
29	VJ1988	POPPET	4
30	VJ1985	SPRING	4
31	VE3568	COVER, POPPET	2
32	VE3534	O-RING (2)/(3)	4
33	VE3528	O-RING (2)/(3)	8
34	VE3567	RELIEF VALVE ASSEMBLY (2) (SEE INDEX)	2	61152
35	VJ1990	SPRING	2
36	VE3557	SCREW, RESTRICTION	2
37	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	68130
38	VE3806	PLATE, SPACER	1
39	BF3050	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	60069
NS\|41		NOTE: (1) NOT SERVICED SEPARATELY.	-1
NS\|42	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
NS\|43	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA parts catalog PDF

HOIST VALVE ASSEMBLY PC1482 (60068) in AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA. Diagram image and parts list.
