AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VN9210	CAPSCREW - 5/8" - 11NC X 7 1/2"	4
?	WA0361	FLAT WASHER, HARDENED - 5/8"	4
?	VC1390	LOCKWASHER - 5/8"	20
?	TV1749	NUT - 5/8" - 11NC	4
?	TR4090	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	TD0795	LOCKWASHER - 7/16"	8
?	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
?	VG9096	O-RING	2
?	HA7699	HOSE	1
?	WA4713	CLAMP, HYDRA ZORB - 2 1/4"	4
?	WB0551	FITTING, ELBOW - 45 DEG	2
?	WB0549	FITTING, ELBOW - 45 DEG	1
?	58F-60-01010	FITTING, ELBOW - 90 DEG	1
?	WA4711	CLAMP, HYDRA ZORB - 1 3/4"	2
?	HA7700	HOSE	1
?	HA7698	HOSE	1
?	58F-09-00320	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
?	PB6770	COUPLING, MALE QUICK DISCONNECT	4
?	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
?	VG9095	O-RING	1
?	EJ7406	FLANGE, ADAPTER	1
?	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	16
?	TR5445	LOCKWASHER - 1/2"	24
?	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	8
?	WA0232	O-RING	4
?	PC0678	MANIFOLD, BRAKE COOLING & HOIST RETURN	1
?	VL9963	CLAMP, SPLIT FLANGE - 3"	6
?	WA0237	O-RING	3

Komatsu AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA parts catalog PDF

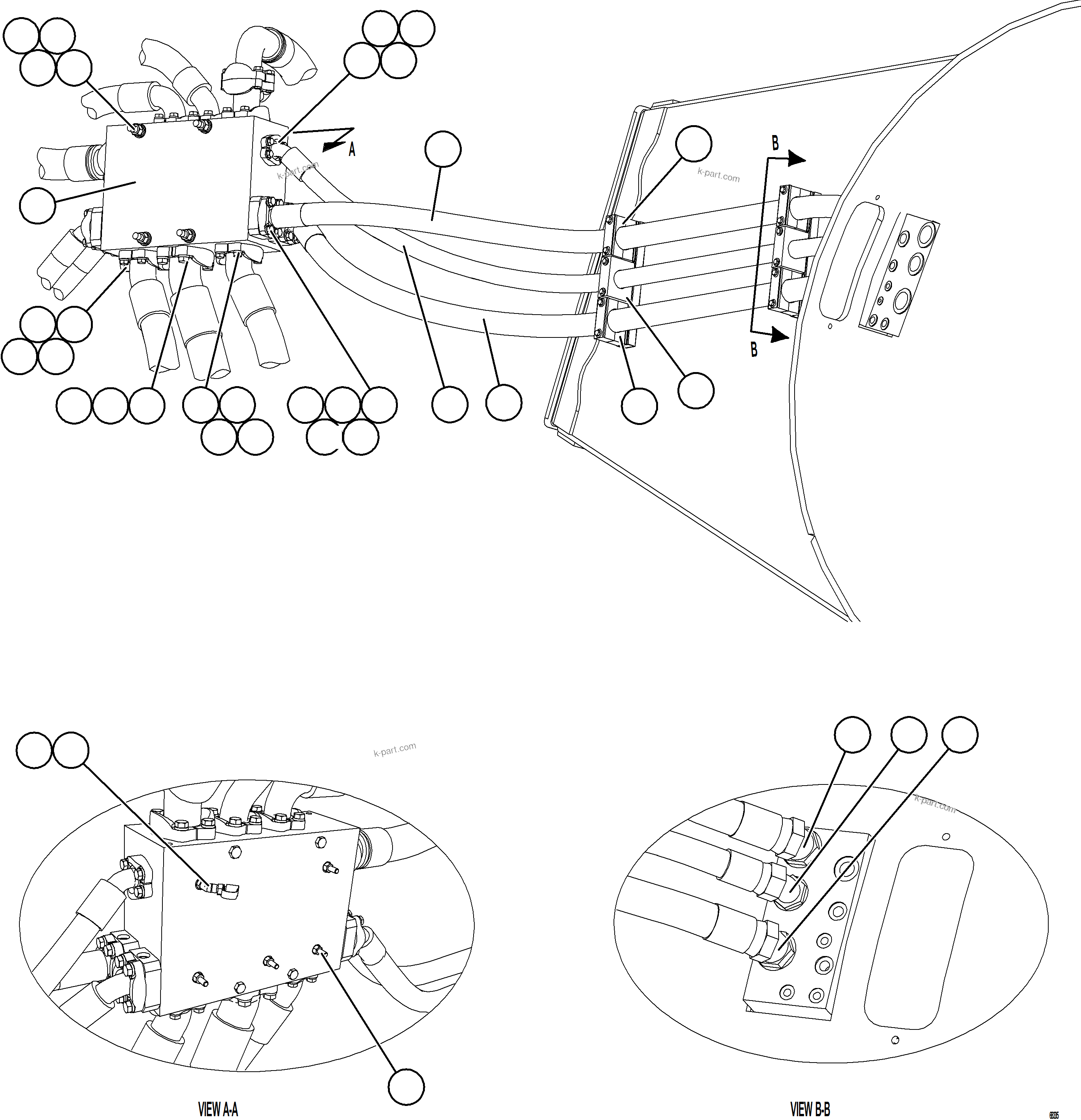

BRAKE COOLING PIPING 1/4 (68335) in AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA. Diagram image and parts list.
