AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA

1 2 3 4 5 6 7 8 8 9 10 11 12 13 13 14 15 15 16 17 18 19 20 25 26 27 28 21 22 23 24 29 30 31 32 33 34

#	Part Number	Partname	Quantity
1	EL3417	CYLINDER HEAD ASSEMBLY	1
1	EH7939	HEAD	1
1	EL3415	QUILL ASSEMBLY	1
1	EL3414	QUILL	1
1	722187	POPPET, BALL	2
1	EB8590	PLUG	2
2	VM2202	PLUG, VENT	1
3	VN9088	CAPSCREW - 7/8" - 9NC X 2 1/2"	24
4	WA0363	FLAT WASHER, HARDENED - 7/8"	24
5	WA0456	O-RING (1)	1
6	WA1456	RING, BACKUP (1)	1
7	PC1050	SNAP RING	1
8	PC1436	BEARING - 11 3/4" (1)	2
9	PB8618	SEAL - 11 3/4" (1)	1
10	TY1503	SEAL (1)	1
11	EM8378	RETAINER, BEARING	1
12	WA0879	CAPSCREW, 12 PT- 7/8" - 9NC X 2 1/2"	10
13	PC1437	BEARING - 14" (1)	2
14	PB8908	SEAL - 14" (1)	1
15	PC1435	BEARING - 9 1/2" (1)	2
16	PB8615	SEAL ASSEMBLY - 9 1/2" (1)	1
17	EL7279	HOUSING	1
18	EL7281	TUBE - 13"	1
19	XB0706	TUBE - 10 1/2"	1
20	EL5369	ROD, PIVOT	1
21	PB9810	BEARING - 13" (1)	1
22	PB9912	SEAL, BUFFER - 13" (1)	1
23	PB9808	SEAL, ROD - 13" (1)	1
24	PB9807	WIPER, ROD - 13" (1)	1
25	PB9806	BEARING - 10 1/2" (1)	1
26	PB9911	SEAL, BUFFER - 10 1/2" (1)	1
27	PB9804	SEAL, ROD - 10 1/2" (1)	1
28	PB9803	WIPER, ROD - 10 1/2" (1)	1
29	PB9802	BEARING - 7" (1)	1
30	PB9910	SEAL, BUFFER - 7" (1)	1
31	PB9800	SEAL, ROD - 7" (1)	1
32	PB9799	WIPER, ROD - 7" (1)	1
33	EG9090	PLATE	1
34	PC1996	RING, SNAP - ROUND	1
NS\|40	58F-HC-AK050	NOTE: (1) INCLUDED IN 58F-HC-AK050 HOIST CYLINDER	-1
NS\|41		OVERHAUL KIT.	-1

Komatsu AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA parts catalog PDF

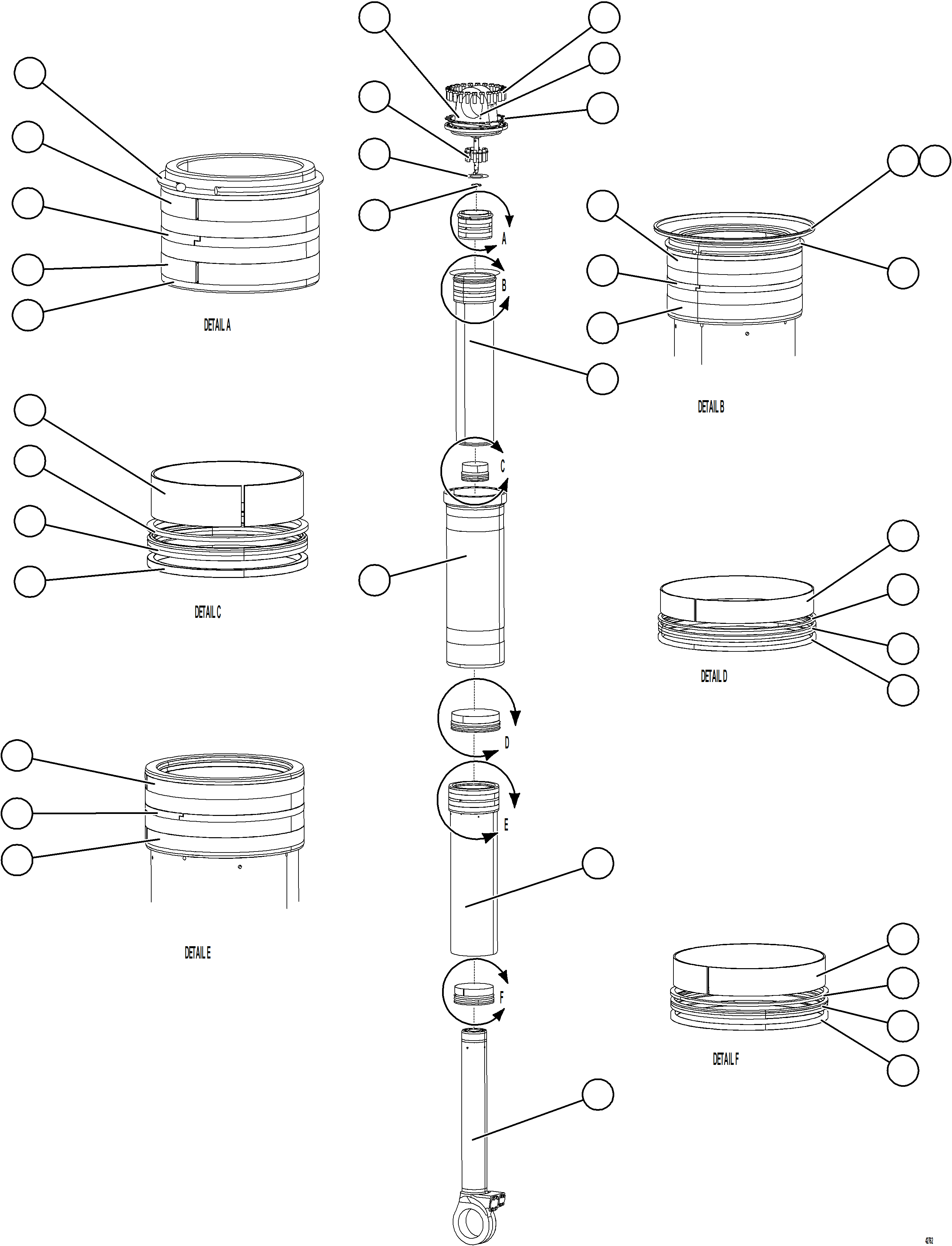

HOIST CYLINDER ASSEMBLY EM8377 (42762) in AFE78-D 930E-5 S/N A40027 - A40028 BMA GOONYELLA. Diagram image and parts list.
