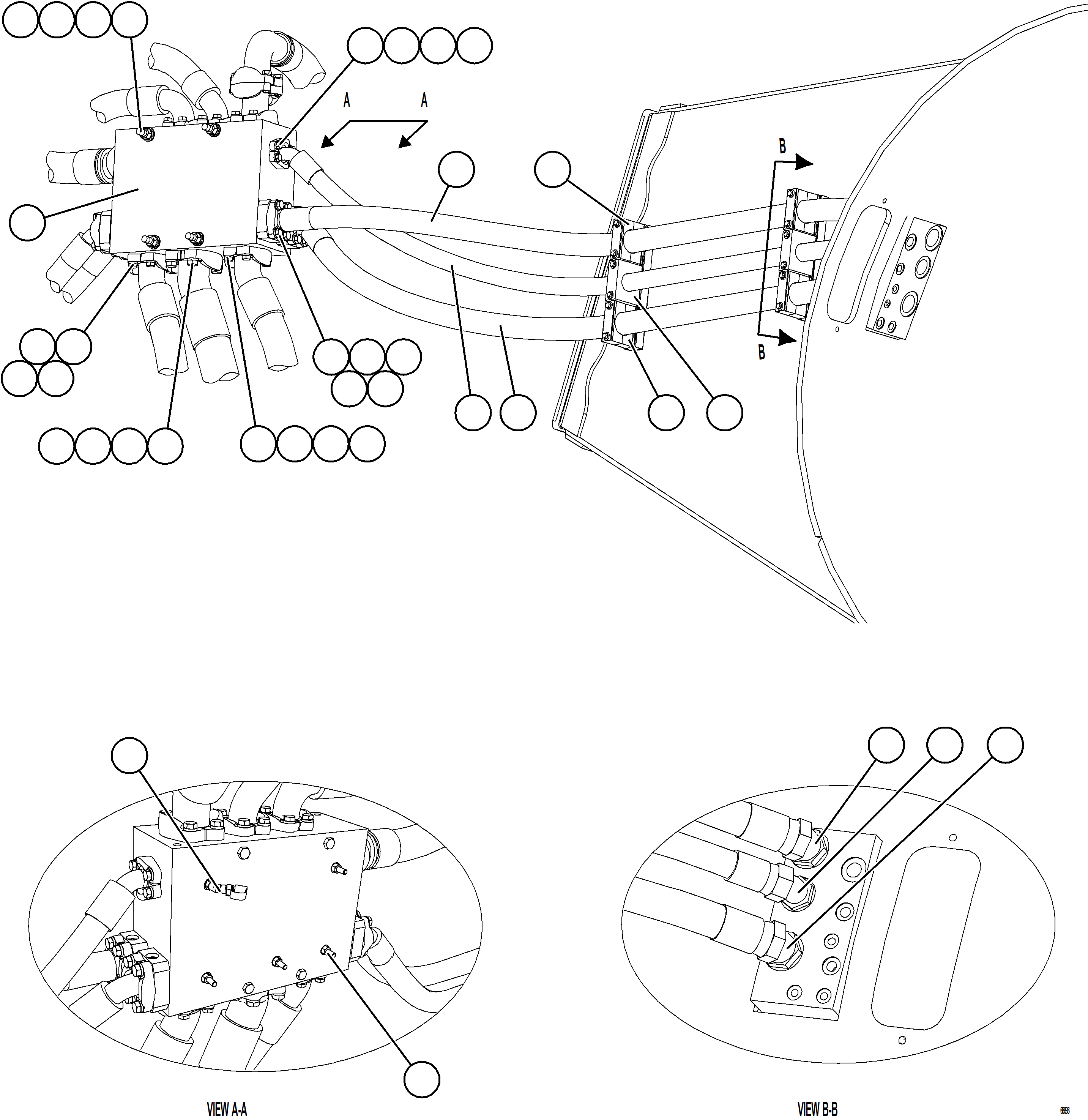

BRAKE COOLING PIPING 1/3 | AFE75-B 980E-5 S/N A50006 - A50007 TECK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE75-B 980E-5 S/N A50006 - A50007 TECK

26 11 12 11 16 15 18 10 14 9 18 10 23 21 19 20 17 28 13 27 3 1 2 3 4 5 8 7 6 22 25 24 23 24 25 23 22

#	Part Number	Partname	Quantity
1	VN9210	CAPSCREW - 5/8" - 11NC X 7 1/2"	4
2	WA0361	FLAT WASHER, HARDENED - 5/8"	4
3	C1541	LOCKWASHER - 5/8"	20
4	C1525	NUT - 5/8" - 11NC	4
5	TR4090	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
6	TD0795	LOCKWASHER - 7/16"	8
7	TF3237	CLAMP, SPLIT FLANGE - 1 1/4"	4
8	VG9096	O-RING	2
9	HA7896	HOSE	1
10	WA4713	CLAMP, HYDRA ZORB - 2 1/4"	4
11	VC4571	FITTING, ELBOW - 90 DEG	2
12	TF3238	FITTING, STRAIGHT	1
13	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
14	WA4711	CLAMP, HYDRA ZORB - 1 3/4"	2
15	HA7897	HOSE	1
16	HA7895	HOSE	1
17	58F-09-00320	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
18	PB6770	COUPLING, MALE QUICK DISCONNECT	4
19	TF8090	CLAMP, SPLIT FLANGE - 1 1/2"	2
20	VG9095	O-RING	1
21	EJ7406	FLANGE, ADAPTER	1
22	TV1918	CAPSCREW - 1/2" - 13NC X 1 3/4"	16
23	TR5445	LOCKWASHER - 1/2"	24
24	VH6718	CLAMP, SPLIT FLANGE - 2 1/2"	8
25	WA0232	O-RING	4
26	PC0678	MANIFOLD, BRAKE COOLING & HOIST RETURN	1
27	VL9963	CLAMP, SPLIT FLANGE - 3"	6
28	WA0237	O-RING	3
