AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN

5 2 9 1 1 8 8 7 3 4 6

#	Part Number	Partname	Quantity
1	58B-43-01550	PANEL ASSEMBLY	1
1	58E-43-10120	GUIDE, CARD	14
2	58B-43-01590	FIBER OPTIC ASSEMBLY	1
3	58F-43-02150	TMC PANEL CARD (190F)	2
4	58F-43-02160	DUAL ETHERNET SWITCH CARD (191F)	1
5	58B-43-01570	ANALOG INPUT CARD (173F)	1
6	58E-43-10270	DIGITAL I/O INPUT CARD (104F)	2
7	58D-43-00240	CPU CARD (187F)	1
8	58B-43-01560	BACKPLANE	1
9	58B-43-01580	FIBER OPTIC ASSEMBLY	1
NS\|11		NOTE: NS = NOT SHOWN	-1
NS\|12	GE0611	TIE, HOOK-AND-LOOP	-1
NS\|13	GE0470	KIT, FIBER OPTIC REPAIR (1)	1
NS\|14	XA5143	CONNECTOR, GRAY	5
NS\|15	XA5144	CONNECTOR, BLUE	5
NS\|16		WIRE MARKER (1)	10
NS\|17	XA5141	KIT, CABLE FINISHING	1
NS\|18		FIBER OPTIC CABLE (50') (1)	1
NS\|19		SANDPAPER (1)	8
NS\|20		POLISHING PAPER (1)	8
NS\|21		NOTE: (1) GE0654 FIBER OPTIC REPAIR KIT WITH CRIMPER	-1
NS\|22		TOOL IS ALSO AVAILABLE.	-1

Komatsu AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN parts catalog PDF

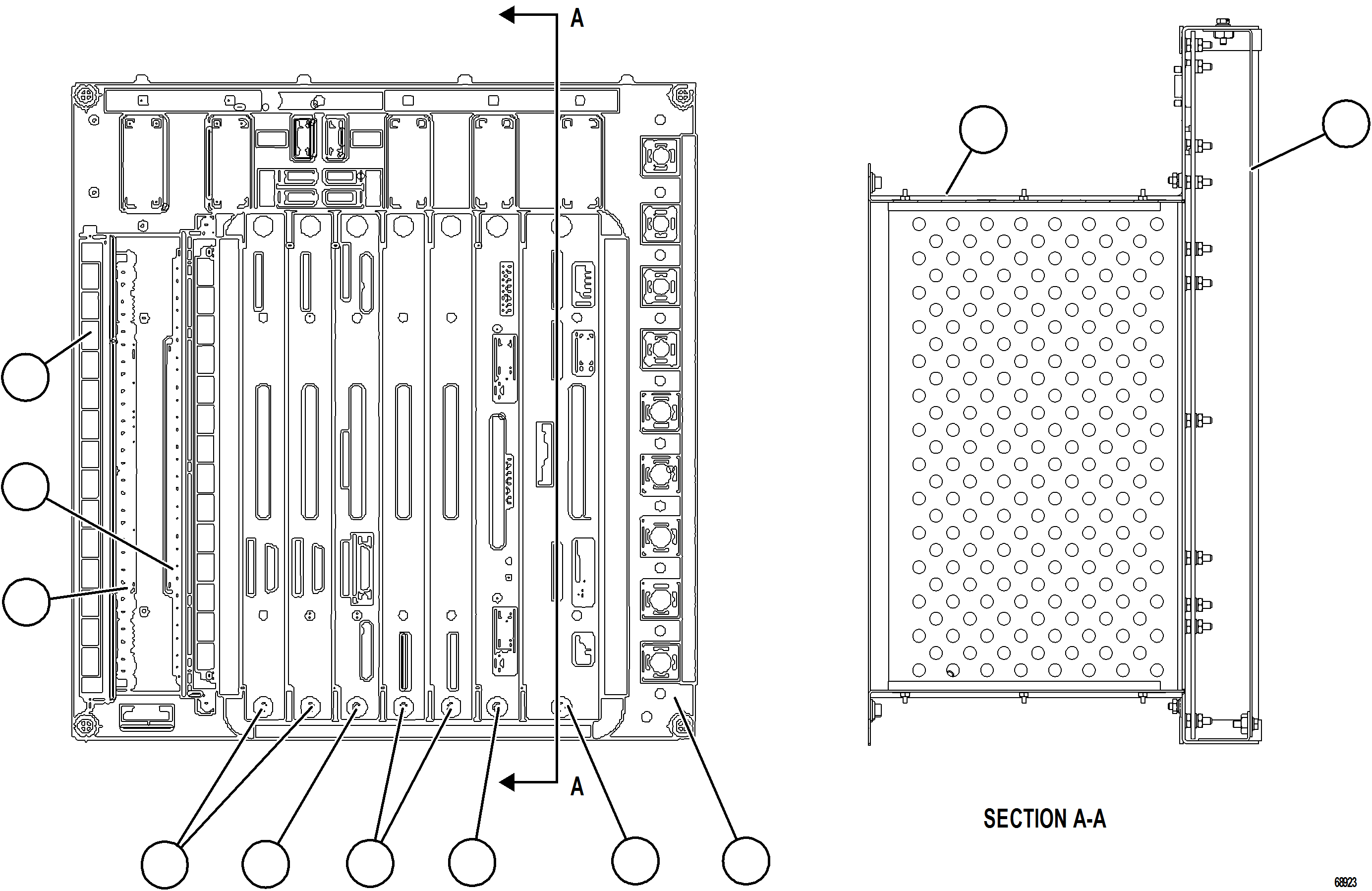

ICP PANEL 58B-98-01910 (68923) in AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN. Diagram image and parts list.
