AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	GE1132	STATOR FRAME & CORE ASSEMBLY	1
?	VE4342	BRACKET	9
?	VE5185	FLAT WASHER - 1/2"	18
?	VE4542	CAPSCREW - 1/2" - 13NC X 1"	18
?	BF2117	FELT PAD	-1
?	GE1133	TIE RING, INSULATED	1
?	58B-06-07340	FELT PAD	-1
?	XA3574	FERRULE	4
?	GE1143	STRAP, NEUTRALIZING	1
?	58B-06-07350	TAPE	-1
?	58B-06-07360	STRIP, BRAZING	4
?	58B-06-07370	SLEEVE	-1
?	58B-06-07380	ROPE	-1
?	XA4417	CONNECTOR ASSEMBLY	1
?	XA4418	CONNECTOR ASSEMLBY	1
?	XA4422	CABLE	2
?	GE1168	CABLE MARKER	1
?	GE1169	CABLE MARKER	1
?	GE1347	PAD	1
?	VE1200	GROMMET	2
?	XA4107	COVER	1
?	VE4687	LOCKWASHER - 3/8"	6
?	VE2338	CAPSCREW - 5/16" - 16NC X 3/4"	4
?	VS6813	STUD, INSULATED	2
?	VE4750	INSULATOR W/STUD	2
?	VE4515	FLAT WASHER - 3/8"	2
?	VE4747	NUT	2
?	58B-06-07390	ADAPTER, FRAME	1
?	XA4136	FLAT WASHER, HARDENED - 5/8"	18
?	VS6852	CAPSCREW - 5/8" - 11NC X 2 1/2"	18
?	VJ2743	PIN, SPRING DOWEL	2
?		NOTE: NS = NOT SHOWN	-1
?	GE1131	REWIND KIT, STATOR	1

Komatsu AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN parts catalog PDF

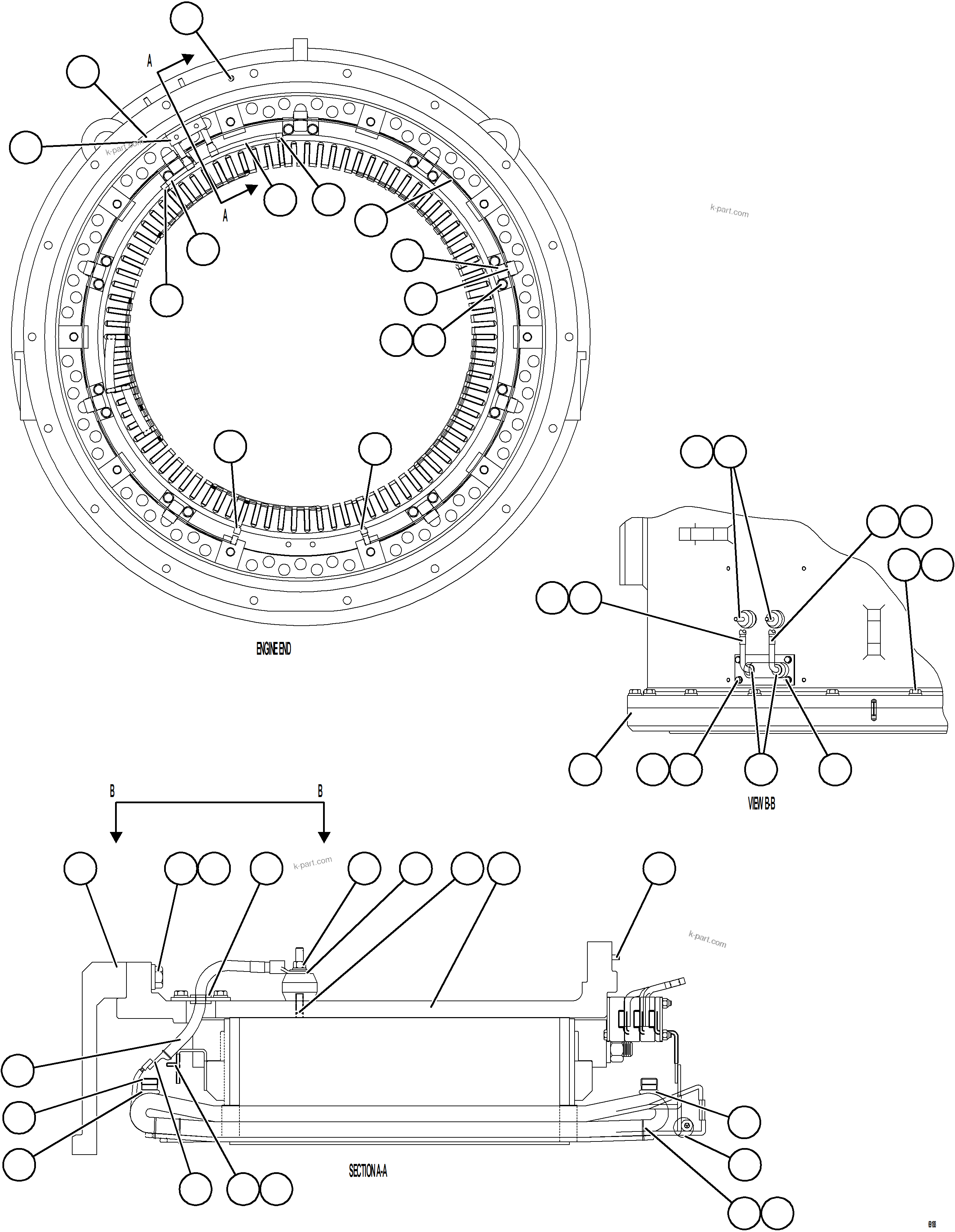

ALTERNATOR STATOR ASSEMBLY 1/2 58B-06-07030 (69188) in AFE75-M 980E-5 S/N A50044 - A50046, A50048 COPPER MOUNTAIN. Diagram image and parts list.
