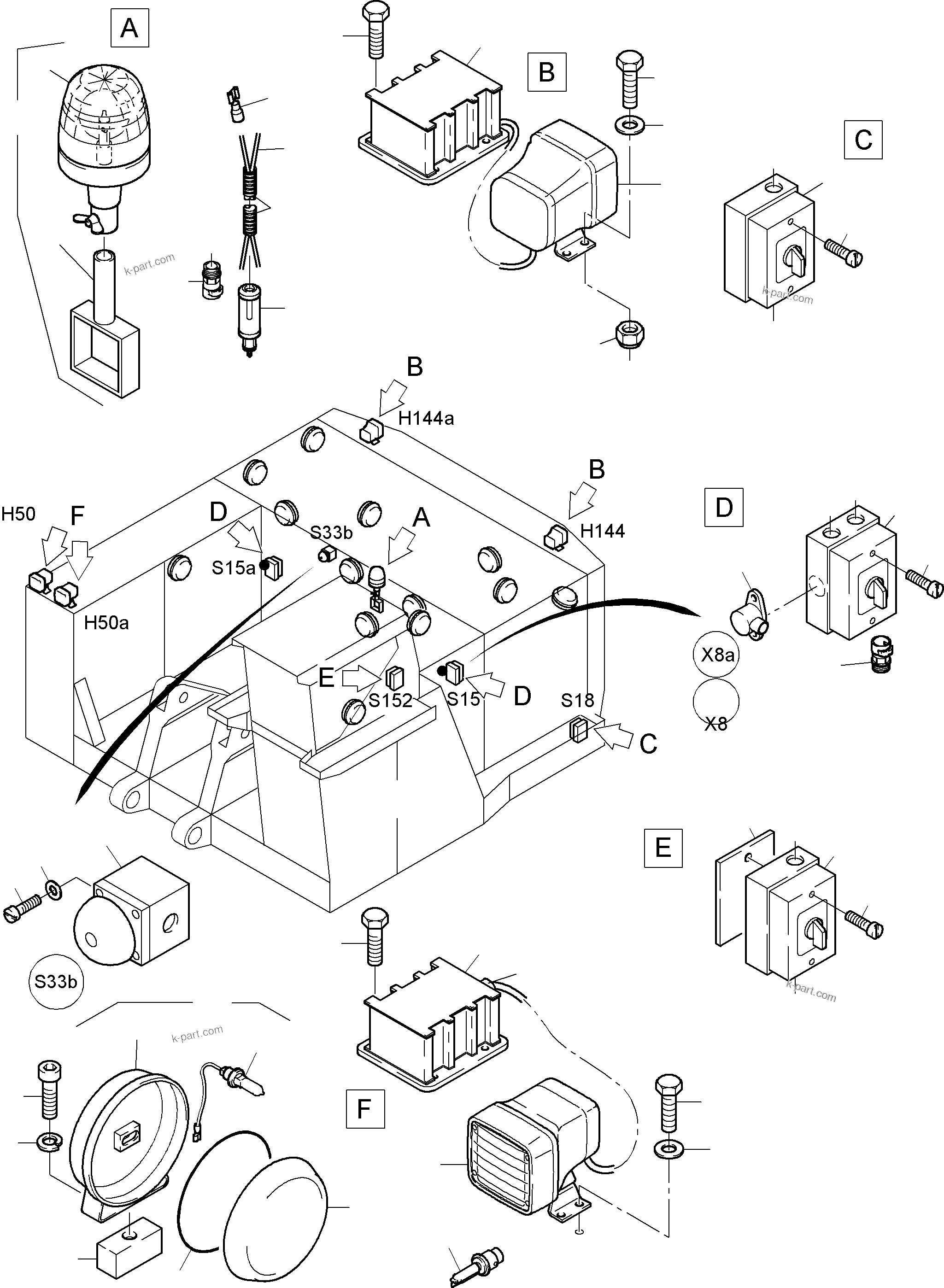

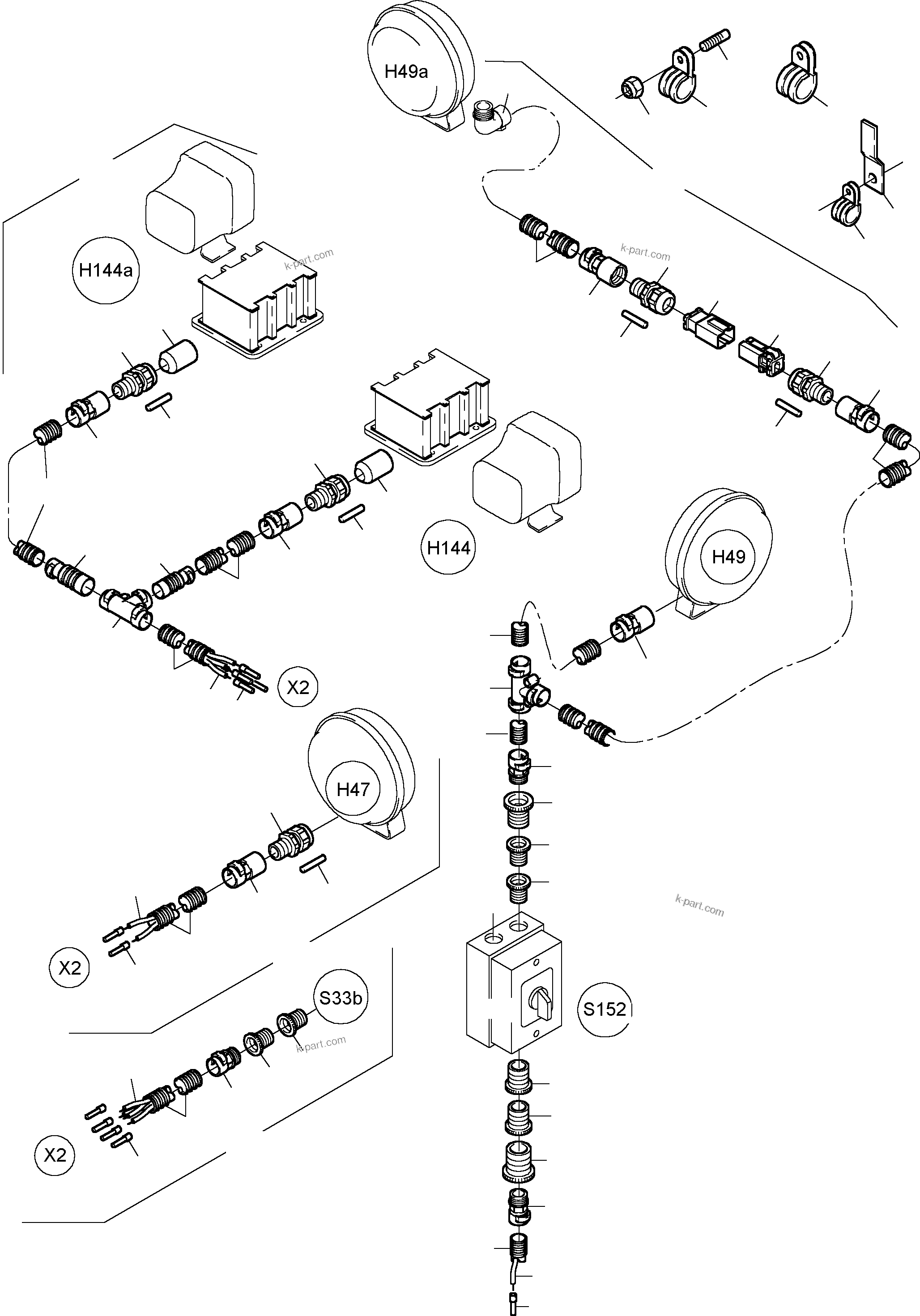

Diagram image 1 of 3

PC4000-6 S/N 08168

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08168

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08168

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Spread beam headlamp	4	991-0377
?	926 550 40	Spotlight assy.	9
?	504 010 98	Bolt	32
?	634 009 40	Spotlight without lamp	9
?	507 383 99	Halogen lamp	9
?	769 155 73	Seal	9
?	769 156 73	Pane, white	9
?	551 362 40	Camswitch	3
?	057 278 40	Socket	2
?	600 813 99	Reducing 16-13,5	5
?	600 812 99	Reducing 13,5-11	5
?	600 790 99	Reducing 11-9	5
?	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
?	898 629 40	Rotaflare light yellow assy.	1
?	898 612 40	Retainer	1
?	896 497 40	Rotaflare light 24 yellow	1
?	515 213 40	Cable 1,0 Bulk ware, state length required	-2
?	180 322 40	Plug	1
?	323 960 40	Tab	2
?	655 621 40	Fitting DN 10	6
?	903 422 40	Plug head light assy.	4
?	655 805 40	Fitting PG 9	16
?	655 799 40	Cable union PG 9	16
?	896 521 40	End pin	21
?	515 214 40	Cable 2,5 Bulk ware, state length required	-2
?	056 071 40	Cable sleeve 2,5	16
?	891 051 40	Plug with bushings assy.	2
?	891 079 40	Plug with pins assy.	2
?	915 225 40	Harness lighting equipment Atrium	1
?	915 227 40	Harness lighting equipment counterweight	1
?	915 226 40	Harness lighting equipment ladder	1
?	515 213 40	Cable 1.0 bl Bulk ware, state length required	-2
?	912 215 40	Harness emergency-off - engine housing	1
?	913 202 40	Harness engine housing	1
?	056 070 40	Cable sleeve 1,0-1,5	-2
?	906 420 40	T-Distributor DN 12	1
?	655 631 40	Pipe adapter	2
?	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
?	891 051 40	Plug with bushings assy.	1
?	655 628 40	T-Distributor DN 10	7
?	655 629 40	T-Distributor DN 17	5
?	655 632 40	Pipe adapter DN 17/10	4
?	655 623 40	Cable union DN 17	2
?	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
?	635 043 40	Name plate	-2
?	056 292 40	Cable strap	-2
?	896 435 40	Cable union DN 10-90	10
?	906 952 40	Cable union PG 16	2
?	471 825 99	Cable 2x1,5 Bulk ware, state length required	-2
?	910 023 40	Plate	1
?	320 974 40	Screw	8
?	317 319 40	Threaded block	10
?	319 143 99	Screw	10
?	343 108 99	Lock washer	10
?	841 084 40	Plug assy.	2
?	896 410 40	Cable union DN 10-45	2
?	340 461 99	Washer	32
?	507 036 98	Nut	8
?	635 143 40	Emergency switch-off	1
?	320 976 99	Screw	2
?	340 459 99	Washer	2
?	006 302 98	Clamp	16
?	003 670 79	Clip	1
?	006 304 98	Clamp	19
?	510 210 98	Thread pin	72
?	507 025 98	Nut	72
?	006 301 98	Clamp	35

Komatsu PC4000-6 S/N 08168 parts catalog PDF

LIGHTING EQUIPMENT (355-2105d) in PC4000-6 S/N 08168. Diagram image and parts list.
