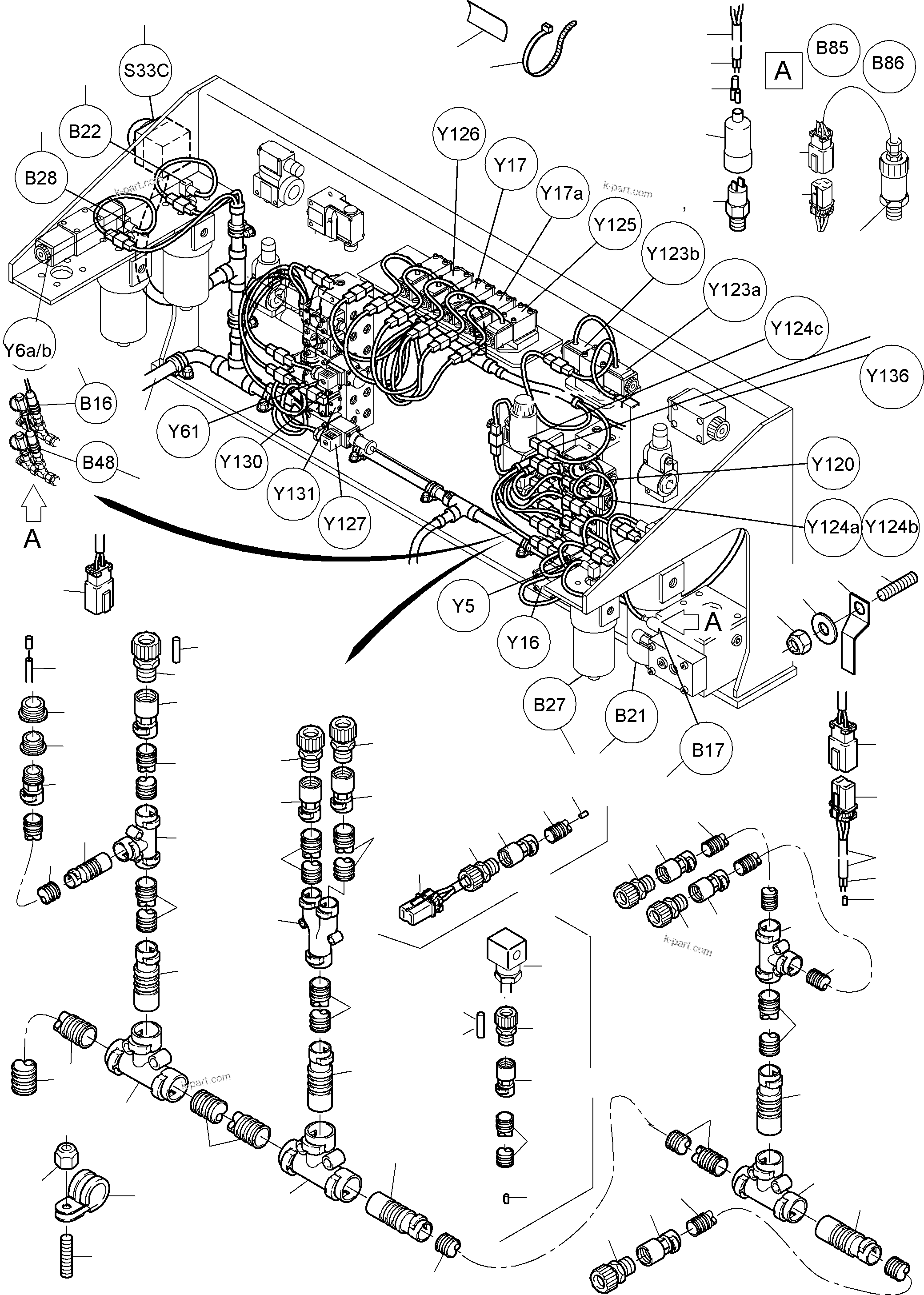

CABLES - CONTROL- AND FILTER PLATE | PC4000-6 S/N 08168

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC4000-6 S/N 08168

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	913 203 40	Harness - control- and filter plate	1
?	891 031 40	Plug with pins assy. 2-poles	24
?	906 079 40	T-Distributor DN 29	2
?	655 627 40	Distributor DN 23/17	1
?	655 630 40	T-Distributor DN 29/23	1
?	655 629 40	T-Distributor DN 17	2
?	910 055 40	Protection cap assy.	3
?	635 677 40	Cable 4x1 Bulk ware, state length required	1
?	655 805 40	Fitting PG 9	1
?	655 636 40	Fitting PG 13,5	1
?	655 808 40	Fitting PG 16	5
?	655 798 40	Cable union PG 9	1
?	655 803 40	Cable union PG 13,5	1
?	655 804 40	Cable union PG 16	7
?	896 489 40	Cable union PG 16	1
?	655 634 40	Pipe adapter DN 23/17	1
?	655 632 40	Pipe adapter DN 17/10	2
?	655 635 40	Pipe adapter DN 29/17	2
?	896 558 40	Pipe adapter DN 29/23	2
?	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2
?	655 651 40	Cable protection hose DN 17 Bulk ware, state length required	-2
?	655 652 40	Cable protection hose DN 23 Bulk ware, state length required	-2
?	515 189 40	Cable 1.0 Bulk ware, state length required	-2
?	635 043 40	Name plate	36
?	056 292 40	Cable strap	36
?	896 520 40	End pin	16
?	910 017 40	Holding device	1
?	891 039 40	Plug with bushings assy. 2-poles	24
?	056 070 40	Cable sleeve 1.0-1.5	78
?	455 756 99	Insulating tube B 6 x 0.6 Bulk ware, state length required	-2
?	490 554 40	Protection cap	3
?	323 961 40	Sleeve 6,3x0,8	10
?	635 143 40	Emergency switch-off	1
?	894 540 40	Pressure switch 24 bar	2
?	915 208 40	Cable - control- and filter plate 2	1
?	003 670 79	Clip	19
?	350 762 99	Washer	17
?	507 025 98	Nut	-2
?	510 210 98	Thread pin	-2
?	006 304 98	Clamp	-2
?	655 696 40	Cable protection hose DN 29 Bulk ware, state length required	-2
?	906 483 40	Valve plug	3
?	656 621 40	Cable union DN 10	1
?	600 790 99	Reducing HPG11-PG 9	1
?	600 812 99	Reducing HPG13,5-PG11	1
?	891 084 40	Plug assy.	2
?	308 553 99	Bolt	4
?	340 507 99	Washer	4
?	334 599 99	Nut	5
?	006 306 98	Clamp	-2
?	509 875 98	Thread pin	-2
?	932 898 40	Pressure measuring transducer 60bar	2
?	891 040 40	Plug assy.	2
?	915 231 40	Cable - control- and filter plate 3	1
?	907 692 40	Fitting M16/NW12	1
?	907 707 40	Cable union PG11	1
?	896 522 40	End pin	1
?	655 650 40	Cable protection hose DN 12 Bulk ware, state length required	-2
?	894 543 40	Pressure switch	1
