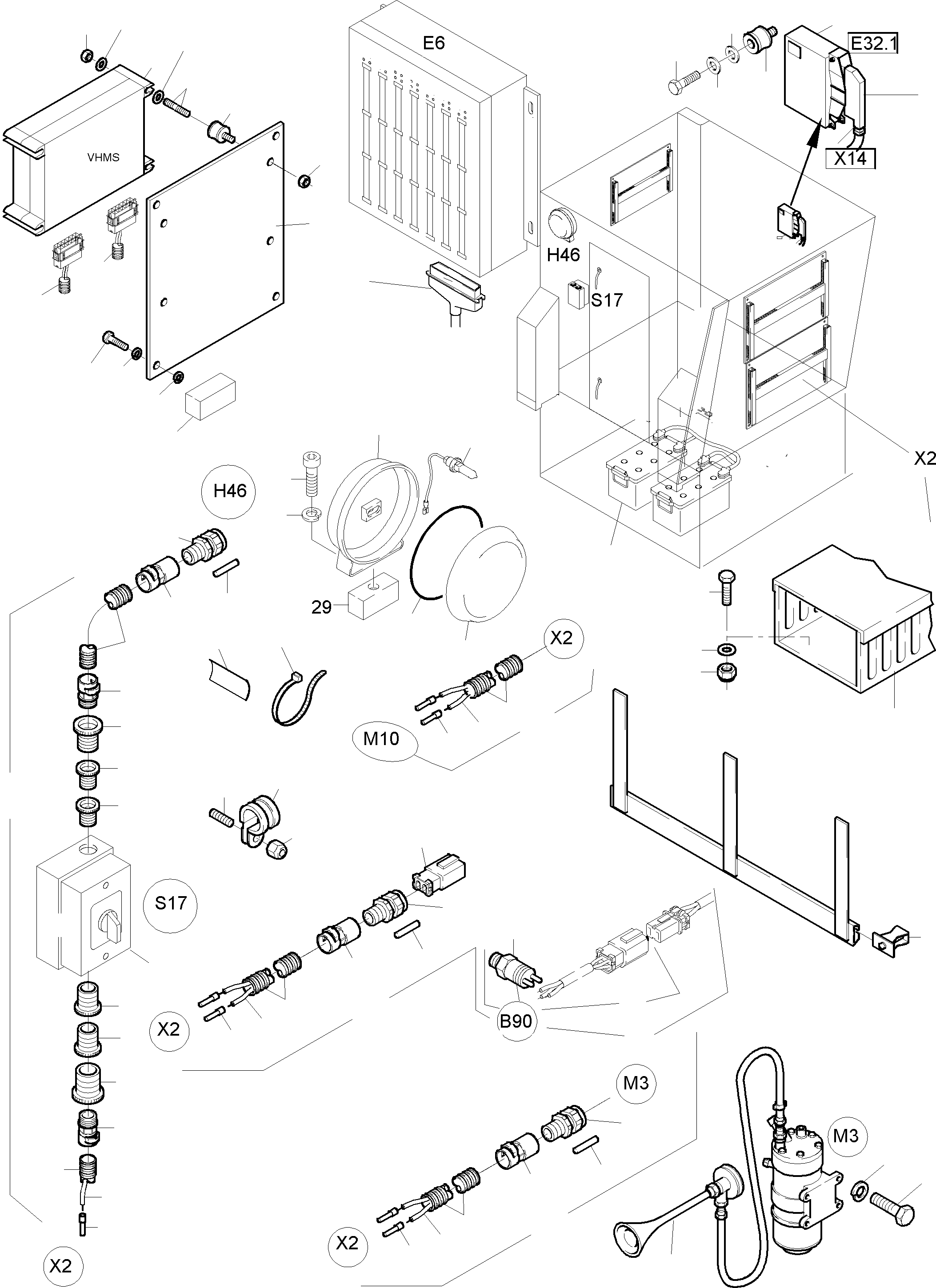

ELECTRIC - CAB SUPPORT | PC4000-6 S/N 08168 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Reference
01		Switch framing	1	355-2165i
02	634 009 40	Spotlight	1
03	551 362 40	Camswitch	1
04		Horn	1	113-2150
05	894 583 40	Temperature sensor assy	1
06	309 691 40	Battery 12 V 200 AH	2
07	894 576 40	Temperature sensor assy with plug	1
08	307 757 99	Bolt	8
09	334 599 99	Nut	4
10	350 763 99	Washer	4
11	896 742 40	Cable channel Bulk ware, state length required	-2
12	343 108 99	Lock washer	1
13	319 143 99	Screw	1
14	320 974 99	Screw	4
15	006 301 98	Clamp	12
16	507 025 98	Nut	39
17	307 732 99	Bolt	4
18	343 106 99	Lock washer	4
19	510 210 98	Thread pin	24
20	145 831 40	Clamp	27
21	907 651 40	Temperature sensor	1
22	358 273 40	Series clamping	30
23	323 232 40	Sectional plate	2
24	635 007 40	Assembly rail	2
25	323 237 40	Wiring terminal	4
26	323 233 40	Wiring profile Bulk ware, state length required	-2
27	270 288 40	Wiring channel 40x25 Bulk ware, state length required	-2
28	655 517 40	Cover Bulk ware, state length required	-2
29	317 319 40	Threaded block	8
30	340 464 99	Washer	8
31	346 510 99	Lock washer	8
32	913 210 40	Harness - lighting equipment - pedestal	1
33	913 211 40	Harness - horn	1
34	915 236 40	Harness - temperature transmitter - outer temperature	1
35	915 237 40	Harness - cabin blower	1
36	655 621 40	Cable union DN 10	16
37	600 790 99	Reducing HPG 11 - PG 9	2
38	600 812 99	Reducing HPG 13,5 - PG 11	2
39	600 813 99	Reducing HPG 16 - PG 13,5	2
40	655 649 40	Cable protection hose DN 10 Bulk ware, state length required	-2
41	655 805 40	Fitting PG 9	3
42	655 799 40	Cable union PG 9	3
43	896 521 40	End pin	2
44	515 214 40	Cable 2,5 Bulk ware, state length required	-2
45	056 070 40	Cable sleeve 1,0 - 1,5	7
46	891 051 40	Plug assy.	-2
47	635 677 40	Cable 4x1 Bulk ware, state length required	-2
48	056 071 40	Cable sleeve 2,5	4
49	896 520 40	End pin	2
50	634 173 40	E/A - Cable, binear	4
51	907 661 40	E/A - Cable, analog	3
52	915 269 40	Cable VHMS-controller CN3A	1
53	915 267 40	Cable VHMS-controller CN4A	1
54	915 268 40	Cable VHMS-controller CN4B	1
55	915 270 40	Cable VHMS-controller CN1A	1
56	056 292 40	Cable strap	10
57	635 043 40	Name plate	10
58	769 155 73	Seal	1
59	769 156 73	Glass, white	1
60	507 383 99	Halogen lamp 24V /70W	1
61	910 740 40	Load limitation valve	1
62	898 664 40	Plug	1
63	655 622 40	Cable union DN 12	14
64	655 624 40	Cable union DN 23	13
65	655 697 40	Cable union DN 29	4
66	916 799 40	Battery box	1
67	916 794 40	Cover	1
68	308 460 99	Bolt	4
69	510 744 98	Resilent sleeve	4
70	334 600 99	Nut	6
71	592 127 40	Zellkautschuk	-2
72	655 730 40	PVC-Hose	-2
73	007 666 98	Clamp	2
74	340 652 99	Washer	2
75	887 009 40	Angle	1
76	792 008 73	Harness Mc 7	1
77	915 248 40	Plate	-2
78	310 045 99	Threaded rod ca. 400 lg. Bulk ware, state length required	-2
79	906 231 40	Circular bearing	7
80	350 762 99	Washer	7
81	307 752 99	Bolt	4
82	929 602 40	VHMS-controller	1
83	346 499 99	Lock washer	3
84	307 631 99	Bolt	1
85	307 740 99	Bolt	2
86	906 761 40	Rubber clamp	12
87	906 760 40	Rubber clamp	3
88	907 223 40	Rubber clamp	3
89	907 104 40	Rubber clamp	6
90	907 105 40	Rail	2
91	906 762 40	Compensating disc	1
92	906 758 40	Seal	1
