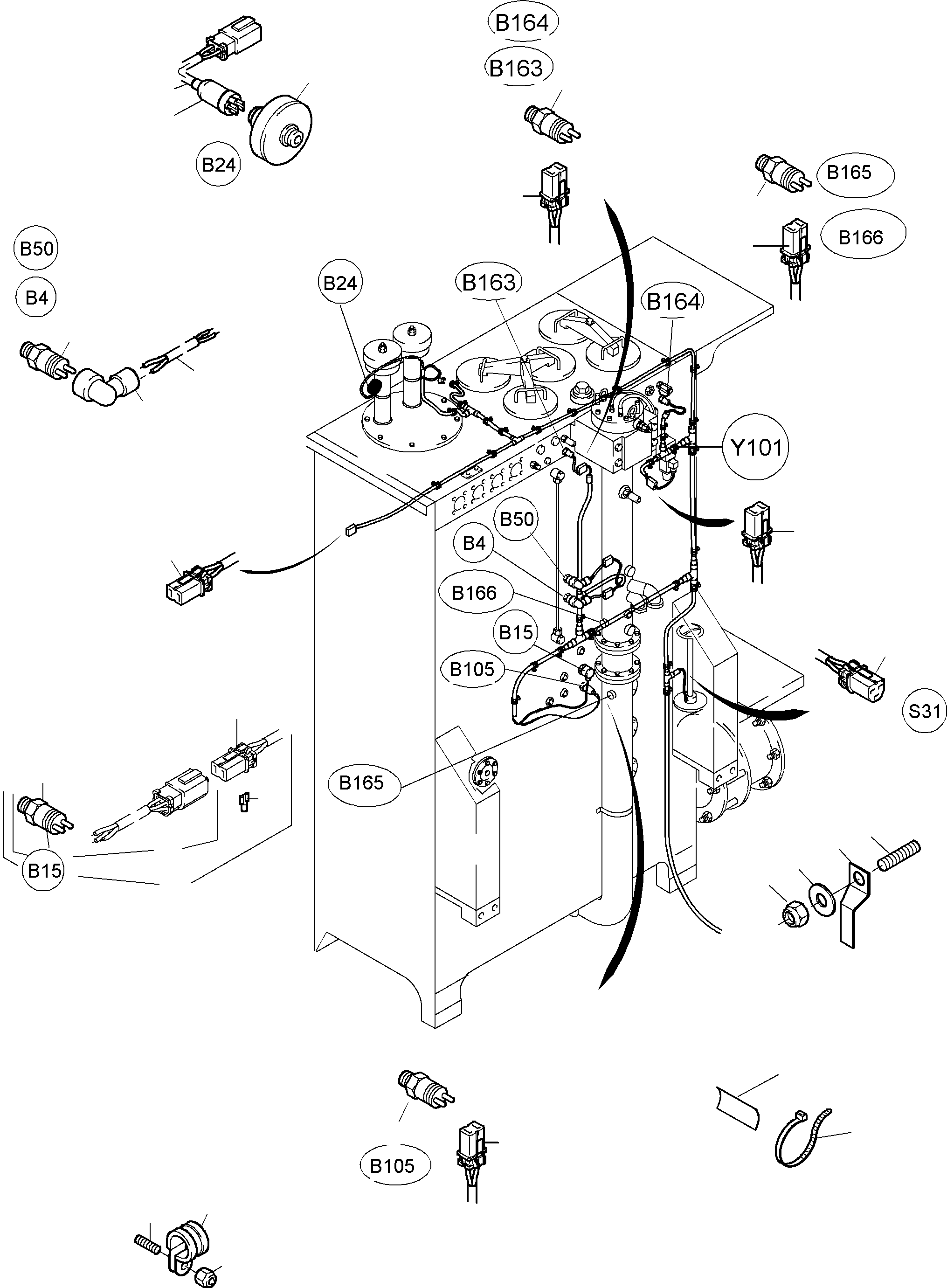

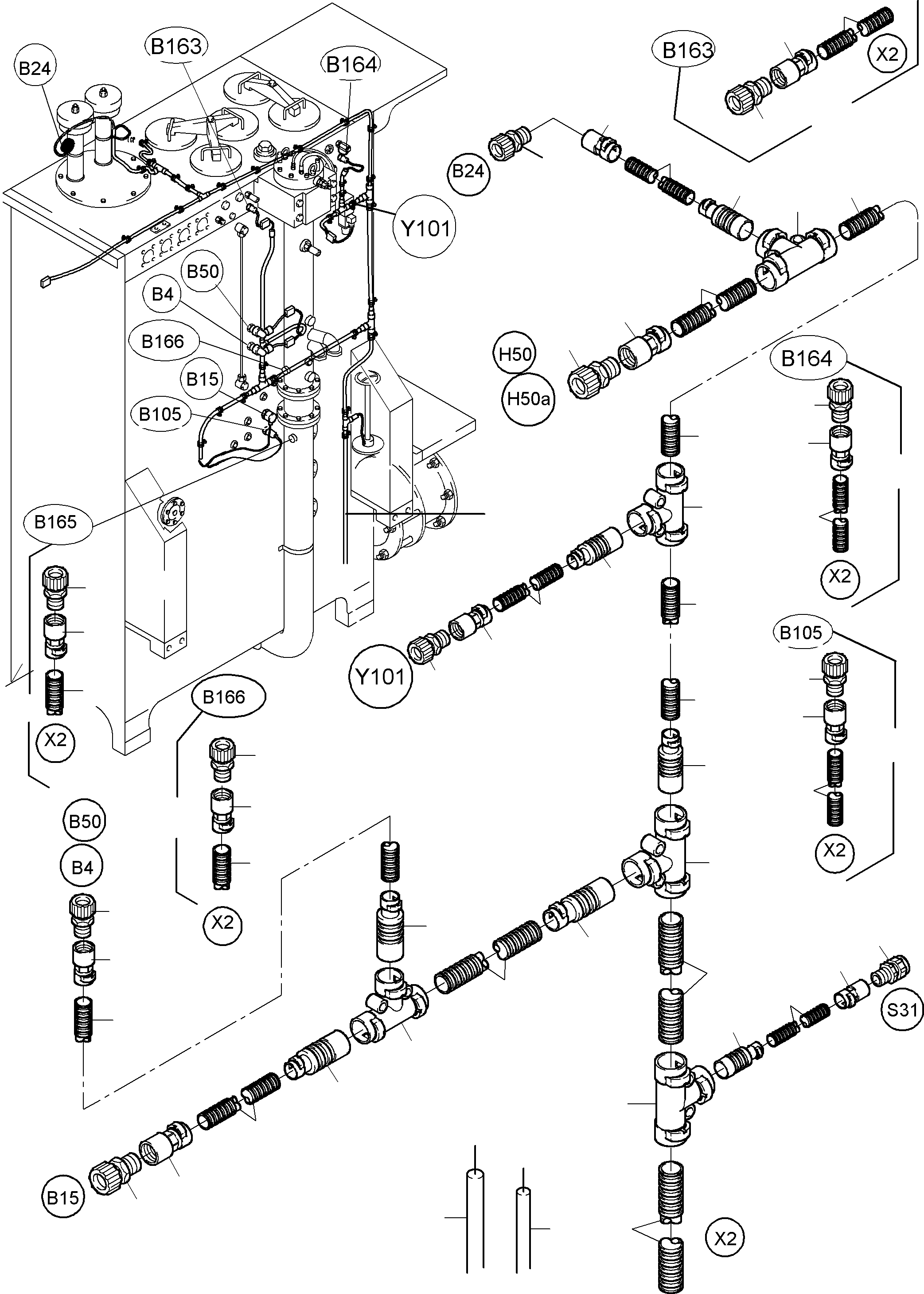

CABLES - OIL TANK AND SWITCH | PC4000-6 S/N 08168

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	901 396 40	Harness - hydraulic tank	1
02	894 583 40	Temperature sensor assy	1
03	896 669 40	Level probe	2
04	896 529 40	Pressure measuring transducer	2
05	932 897 40	Pressure switch 6 bar	2
06	654 652 40	Maintenance switch	1
07	896 582 40	Pressure transducer	1
08	006 339 98	Clamp	5
09	003 670 79	Clip	8
10	350 762 99	Washer	4
11	510 210 98	Thread pin	46
12	006 301 98	Clamp	23
13	145 831 40	Clamp	13
14	510 363 98	Clamp	5
15	006 306 98	Clamp	8
16	509 875 98	Thread pin	8
17	915 209 40	Cable - leakage oil chamber	1
18	507 025 98	Nut	36
19	334 599 99	Nut	8
20	655 649 40	Protecting hose DN 10 Bulk ware, state length required	-2
21	655 651 40	Protecting hose DN 17 Bulk ware, state length required	-2
22	655 650 40	Protecting hose DN 12 Bulk ware, state length required	-2
23	655 696 40	Protecting hose DN 29 Bulk ware, state length required	-2
24	655 632 40	Pipe adapter DN 17/10	2
25	655 809 40	Pipe adapter DN 29/10	1
26	655 629 40	T-Distributor DN 17	3
27	655 635 40	Pipe adapter DN 29/17	2
28	906 079 40	T-Distributor DN 29	2
29	515 213 40	Cable 1 qmm Bulk ware, state length required	-2
30	515 214 40	Cable 2,5 qmm Bulk ware, state length required	-2
31	635 677 40	Cable 4x1 Bulk ware, state length required	-2
32	655 808 40	Fitting PG 16	1
33	655 805 40	Fitting PG 9	3
34	655 798 40	Cable union PG 9	3
35	915 210 40	Cable - return oil chamber	1
36	655 633 40	Pipe adapter DN 17/12	2
37	891 031 40	Plug with bushings assy.	2
38	891 032 40	Plug with bushings assy.	3
39	891 040 40	Plug with bushings assy.	5
40	655 806 40	Fitting PG 11	6
41	655 800 40	Cable union PG 11	5
42	515 908 40	Coupling 90°	2
43	455 757 99	Insulating tube B 7x0,7 Bulk ware, state length required	-2
44	903 422 40	Plug assy.	2
45	455 756 99	Insulating tube B 6x0,6 Bulk ware, state length required	-2
46	915 211 40	Cable - preload valve	1
47	915 212 40	Cable - oil cooler	1
48	915 213 40	Cable - hydr. tank	1
49	056 070 40	Cable sleeve 1,0-1,5	36
50	056 071 40	Cable sleeve 2,5	4
51	891 084 40	Plug assy.	2
52	906 737 40	Cable union PG 16	1
53	635 043 40	Name plate BS 5	14
54	056 292 40	Cable strap	14
55	651 461 40	Housing assy.	1
56	655 803 40	Pipe adapter PG 13,5	2
57	896 520 40	End pin	12
58	896 521 40	End pin	2
59	655 807 40	Fitting PG 13,5	1
60	894 576 40	Temperature sensor assy with plug	1
61	907 651 40	Temperature sensor	1
