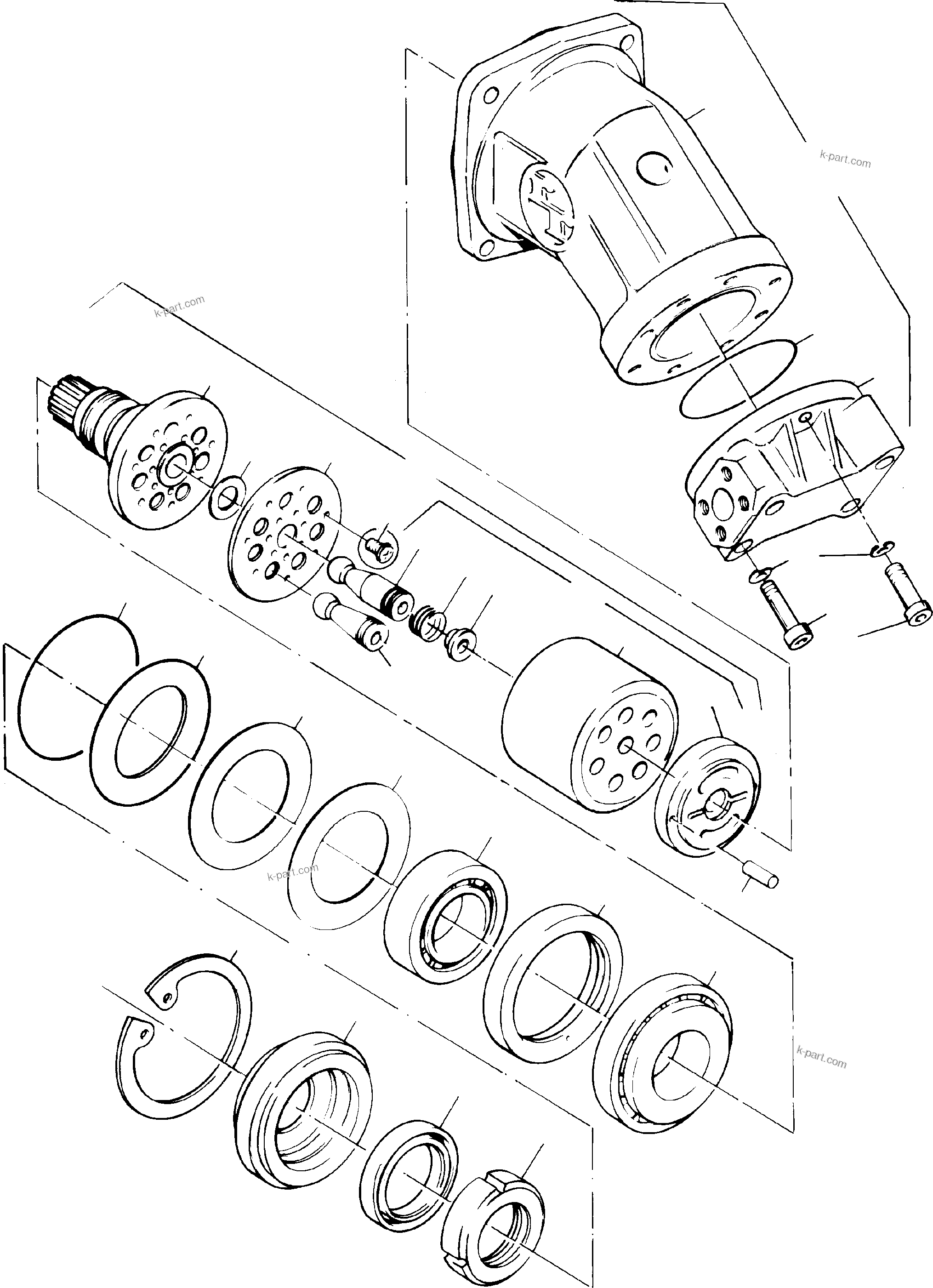

HYDRAULIC-MOTOR | PC4000-6 S/N 08177 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
?	358 677 40	Hydr.-motor, assy.	1
?	753 588	Housing	1
?	319 124 99	Screw	2
?	343 855 99	Lock washer	6
?	319 431 99	Screw	4
?	753 589	Connection plate	1
?	971 096	O-ring	1
?	344 777 99	Parallel pin	1
?	754 465	Transmission, assy. fig-nos: 10,17-30	1
?	754 468	Transmission, assy. fig-nos: 11-16	1
?	753 591	Control plate	1
?	753 606	Cylinder	1
?	754 467	Spring plate	1
?	753 596	Cup spring	4
?	753 597	Trunnion	1
?	754 466	Piston with piston ring	7
?	753 599	Screw, burnished	7
?	754 469	Withdrawal plate	1
?	753 602	Disk	1
?	754 470	Drive shaft with bearing set with fig-nos: 21-23,27	1
?		Roller bearing These parts are not sold separately	1
?		Race These parts are not sold separately	1
?		Roller bearing These parts are not sold separately	1
?	753 607	Shim ring 85x105x0,1	2
?	341 518 99	Shim ring 85x105x0,3	1
?	972 199	O-ring	1
?		Groove nut These parts are not sold separately	1
?	975 304	Shaft seal No field repair item	1
?	754 471	Cover No field repair item	1
?	753 605	Cover, assy. with fig-no: 28	1
?	342 671 99	Circlip	1
?	754 472	Repair kit fig-nos: 07,26,28,29	-2
?	973 125	Fluid sealing to fig-no: 17 50 ml	-2
?	989 946	Fluid sealing (pipe thread) 50 ml (Rohrgewinde)	-2
