PC4000-6 S/N 08177

01 03 04 05 10 12 14 18 19 19 19 20 20 20 21 21 21 21 22 22 23 24 25 25 27 27 28 28 29 30 30 31 32 33 34 35 36 37 92

PC4000-6 S/N 08177

02 04 05 06 07 08 09 11 11 12 13 14 15 16 17 19 19 19 20 20 20 21 21 21 22 22 22 23 23 24 24 25 25 25 26 28 28 92

PC4000-6 S/N 08177

38 38 38 38 39 39 40 43 44 45 45 46 47 48 49 49 49 50 51 52 53 54 55 56 56 56 57 57 57 58 58 58 59 59 60 61 62 63 63 77 77 77 77 78 78 78 78 79 80 80 80 80 83 85 91 93 94 95 96

PC4000-6 S/N 08177

41 42 64 64 65 66 66 67 68 68 69 70 71 71 72 72 73 73 74 74 75 75 75 75 76 76 76 76 83 84 85 86 87 88 89 90

#	Part Number	Partname	Quantity
01	516 359 98	Hose assy	1
02	647 851 40	Orifice	4
03	518 117 98	Hose assy	1
04	374 444 99	Union	6
05	512 087 98	Union	4
06	937 586 40	Pipe	1
07	937 587 40	Pipe	1
08	937 585 40	Pipe	1
09	937 584 40	Pipe	1
10	937 583 40	Pipe	2
11	518 124 98	Hose assy	2
12	907 045 40	Union	8
13	518 125 98	Hose assy	2
14	518 126 98	Hose assy	2
15	518 127 98	Hose assy	1
16	518 128 98	Hose assy	1
17	518 129 98	Hose assy	1
18	534 009 99	Weld-on plate	2
19	506 371 98	Clamp set	12
20	502 626 98	Elastomeric part	12
21	534 008 99	Cover plate	21
22	509 310 98	Lock washer	11
23	504 786 98	Screw	10
24	504 787 98	Lock washer	7
25	308 613 99	Bolt	18
26	374 415 99	Socket	4
27	340 467 99	Washer	20
28	500 345 98	Clamp set	16
29	308 615 99	Bolt	8
30	334 600 99	Nut	16
31	506 728 98	Bolt	8
32	502 879 98	Bolt	8
33	518 130 98	Hose assy	1
34	51821798	Hose assy	1
35	516 341 98	Hose assy	1
36	385 243 40	Flange seal	4
37	319 157 99	Bolt	16
38	515 782 98	Hose assy	5
39	51822198	Hose assy	2
40	515 584 40	Hose assy	1
41	385 889 40	Pipe	1
42	895 972 40	Pipe	1
43	94221740	Pipe	1
44	94221840	Pipe	1
45	94222140	Pipe	3
46	94222240	Pipe	1
47	94221940	Pipe	1
48	94222040	Pipe	1
49	374 409 99	Socket	16
50	516 160 98	Socket	8
51	94221640	Distributor	1
52	516 637 98	Bolt	2
53	340 470 99	Washer	2
54	332 338 99	Nut	2
55	308 582 99	Bolt	14
56	343 005 99	Washer	24
57	534 001 99	Cover plate	12
58	502 953 98	Clamp set	16
59	332 114 99	Nut	24
60	308 589 99	Bolt	8
61	906 930 40	Union	2
62	516 824 98	Socket	8
63	173 448 40	Locking plug	2
64	516 370 98	Hose assy	2
65	516 372 98	Hose assy	1
66	374 407 99	Socket	2
67	516 175 98	Socket	1
68	516 740 98	Socket	2
69	906 938 40	Valve	1
70	516 248 98	Socket	1
71	516 742 98	Socket	2
72	576 407 40	Union	2
73	516 822 98	Socket	2
74	374 414 99	Socket	2
75	371 264 99	Socket	4
76	906 868 40	Sleeve fitting	4
77	308 581 99	Bolt	10
78	534 004 99	Cover plate	5
79	504 818 98	Clamp set	1
80	502 656 98	Clamp set	5
83	319 133 99	Bolt	4
84	533 992 99	Weld-on plate	1
85	509 057 98	Clamp set	2
86	319 136 99	Bolt	4
87	534 020 99	Weld-on plate	2
88	509 060 98	Clamp set	2
89	516 371 98	Hose assy	1
90	374 412 99	Socket	1
91	907 753 40	Hose protection	-2
92	907 804 40	Hose protection	-2
93	518 218 98	Hose assy. DN25x8150	1
94	518 219 98	Hose assy. DN25x8550	1
95	504 788 98	Bolt	2
96	504 789 98	Lock washer	1

Komatsu PC4000-6 S/N 08177 parts catalog PDF

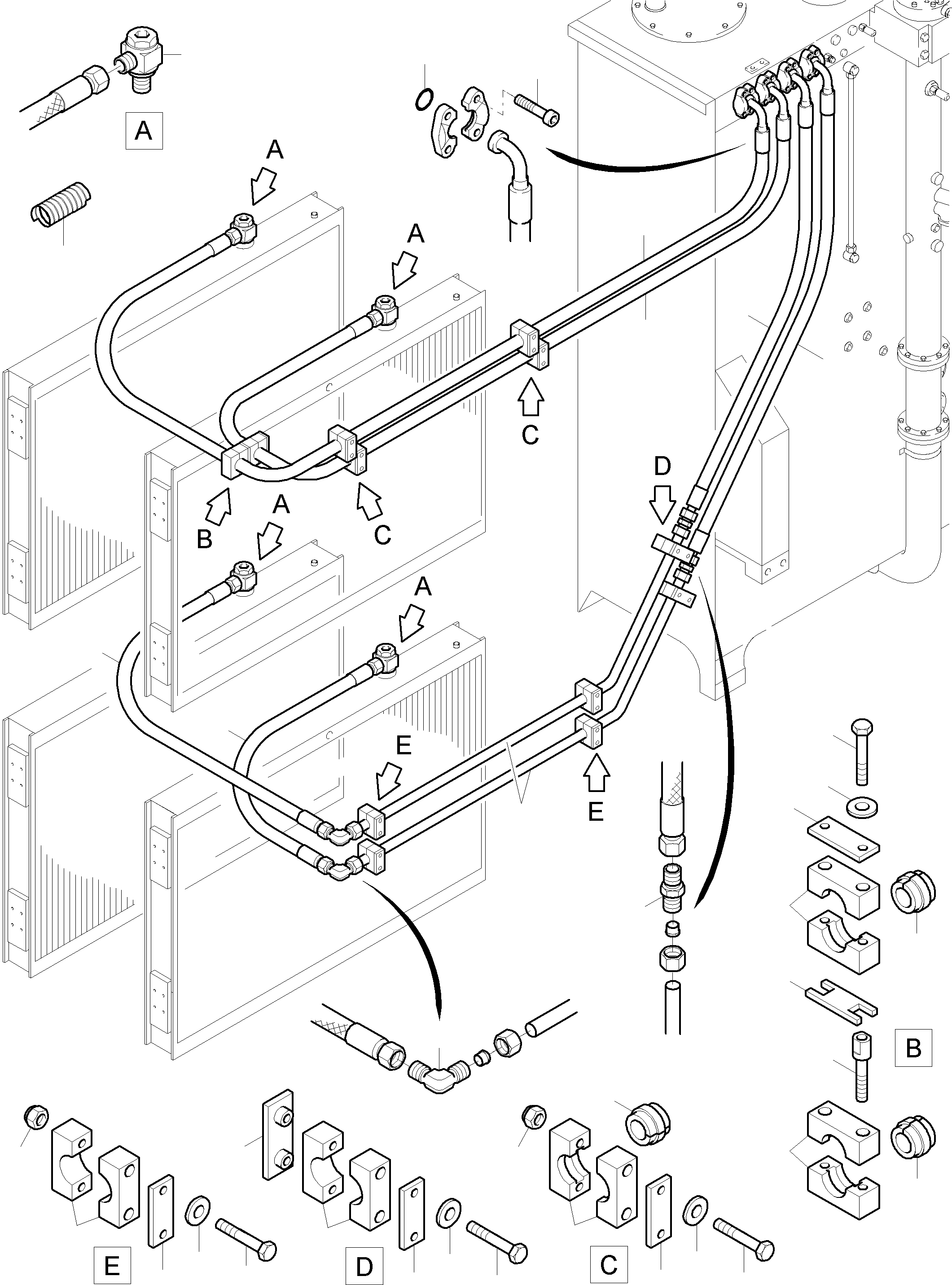

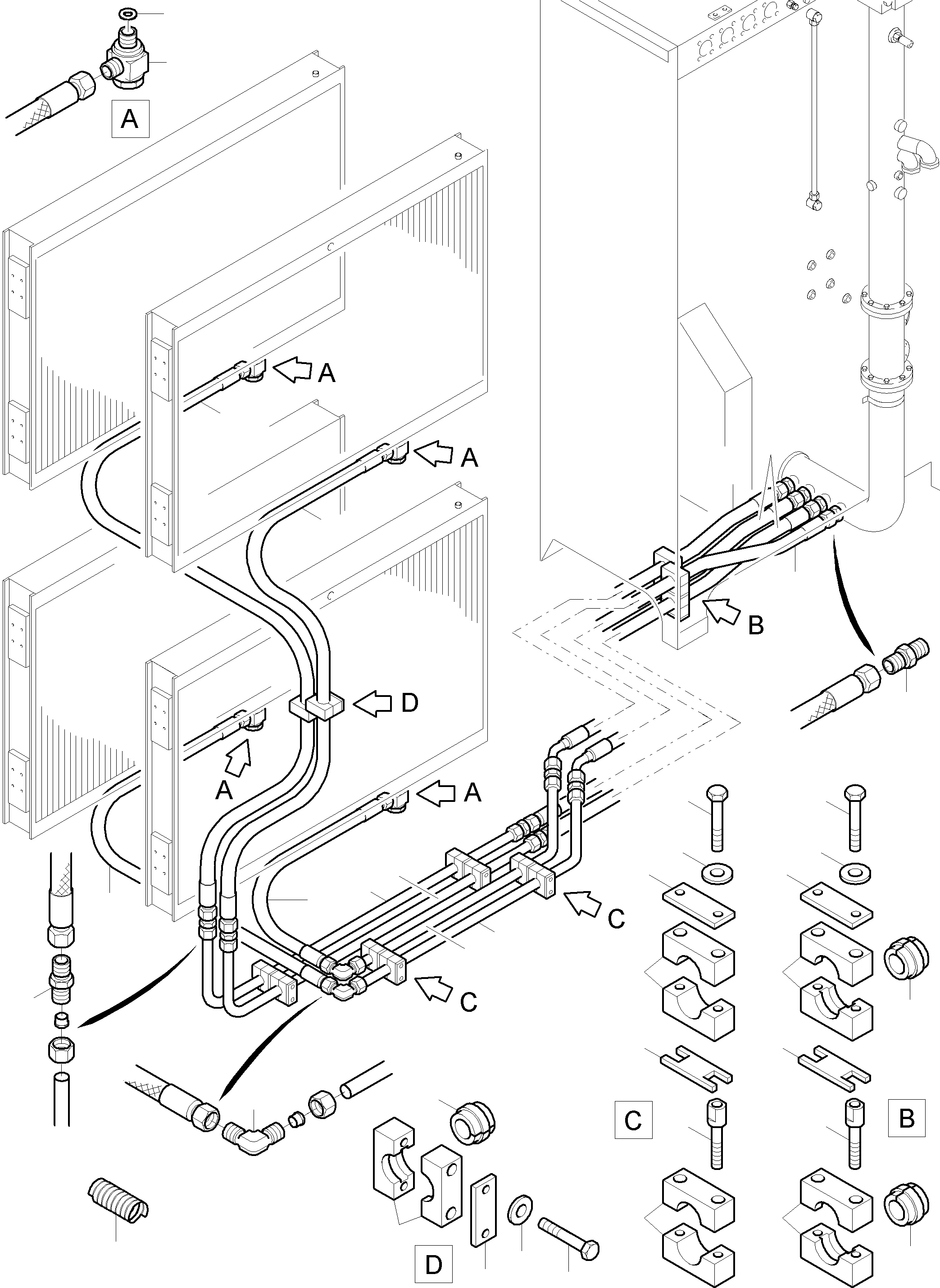

OIL COOLER - HOSE ASSY. (355-1816d) in PC4000-6 S/N 08177. Diagram image and parts list.
