MAINFOLD, VALVE AND PIPELINES BHE | PC4000-6 S/N 08177

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

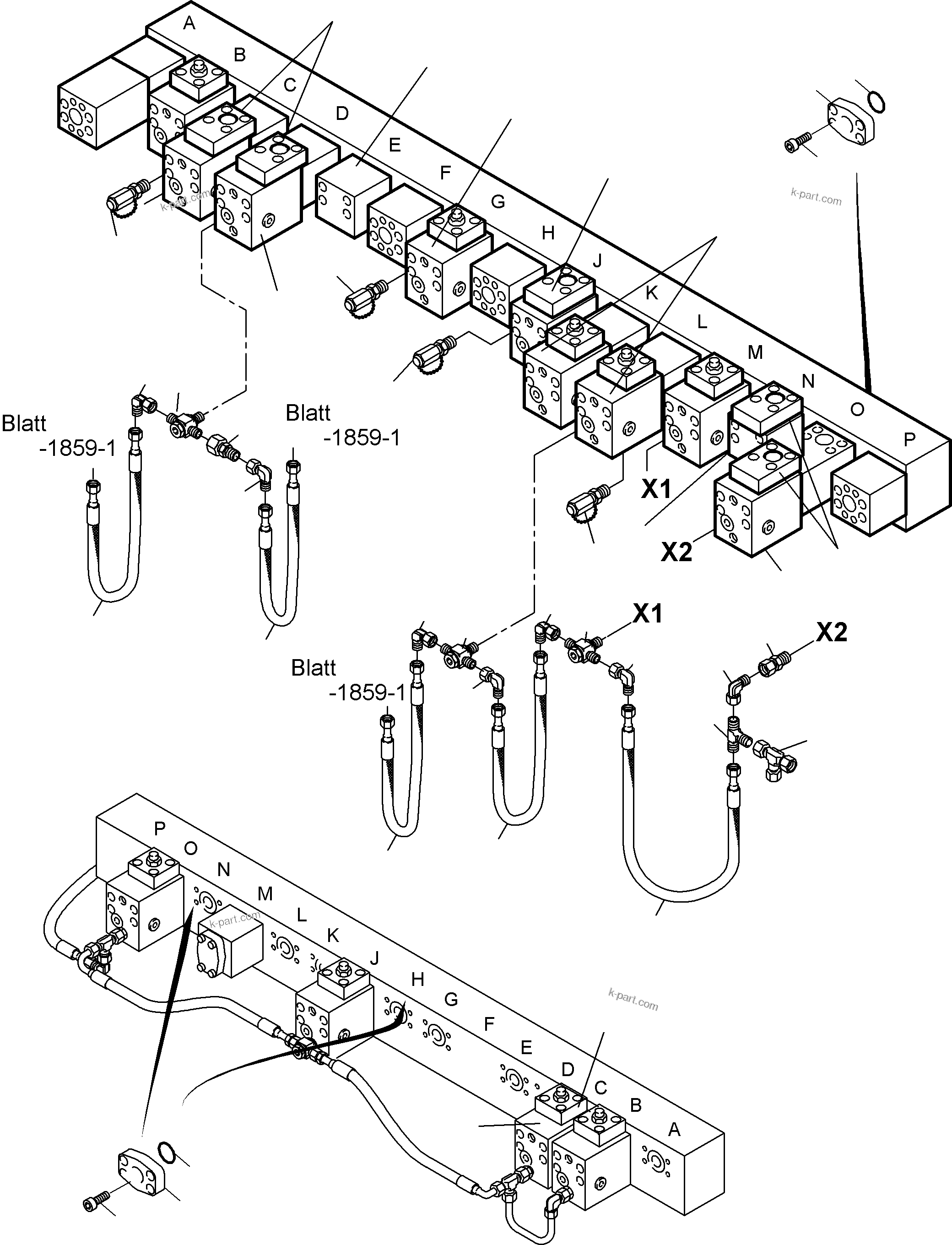

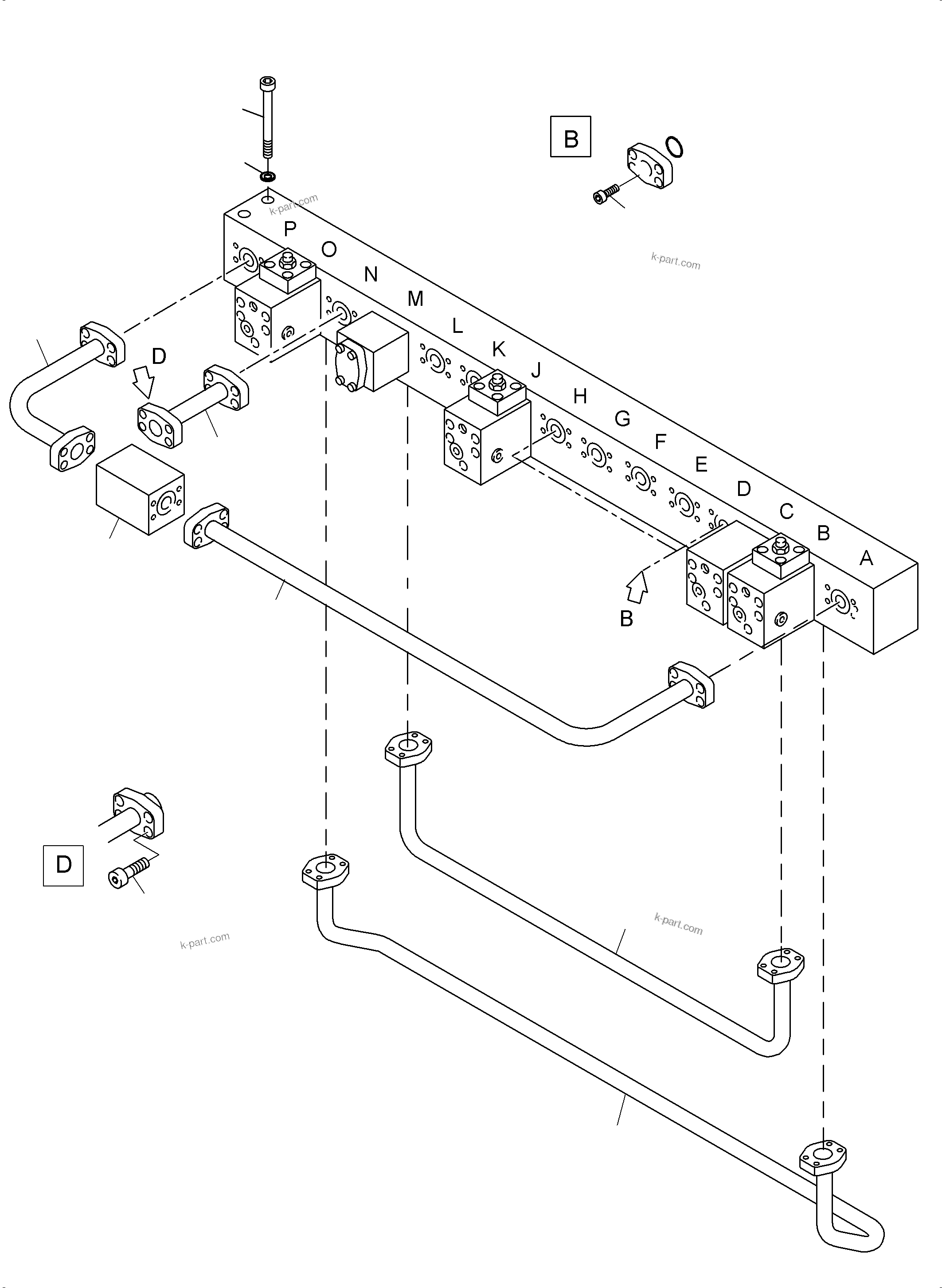

Diagram image 1 of 2

PC4000-6 S/N 08177

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 08177

? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?		Throttle check valve with pressure relief valve	6	090-0695
?	514 529 98	Bolt	12
?	319 212 99	Bolt	16
?	515 812 98	Coupling	3
?	906 806 40	Union	6
?	516 183 98	Socket	2
?	516 156 98	Union	3
?	374 471 99	Union	1
?	506 581 98	Plug	6
?	356 209 40	Flange seal	14
?	945 981 40	Block	5
?	321 424 99	Bolt	20
?	631 063 40	Returning block	2
?	655 646 40	Block	1
?	319 289 99	Bolt	32
?	373 764 99	Union	2
?	307 454 99	Bolt	20
?	516 165 58	Union	2
?	516 308 98	Hose assy. DN 8 x 400	2
?	514 707 98	Hose assy. DN 8 x 600	1
?	516 309 98	Hose assy. DN 8 x 330	1
?	516 307 98	Hose assy. DN 8 x 300	1
?	518 016 58	Bolt	4
?	374 413 99	Union	2
?	938 167 40	Pipe DN 50 x 6	1
?	938 168 40	Pipe DN 50 x 6	1
?	938 169 40	Pipe DN 50 x 6	1
?	938 170 40	Pipe DN 50 x 6	1
?	935 361 40	Pipe DN 50 x 6	1
?	515 863 98	Bolt	4
