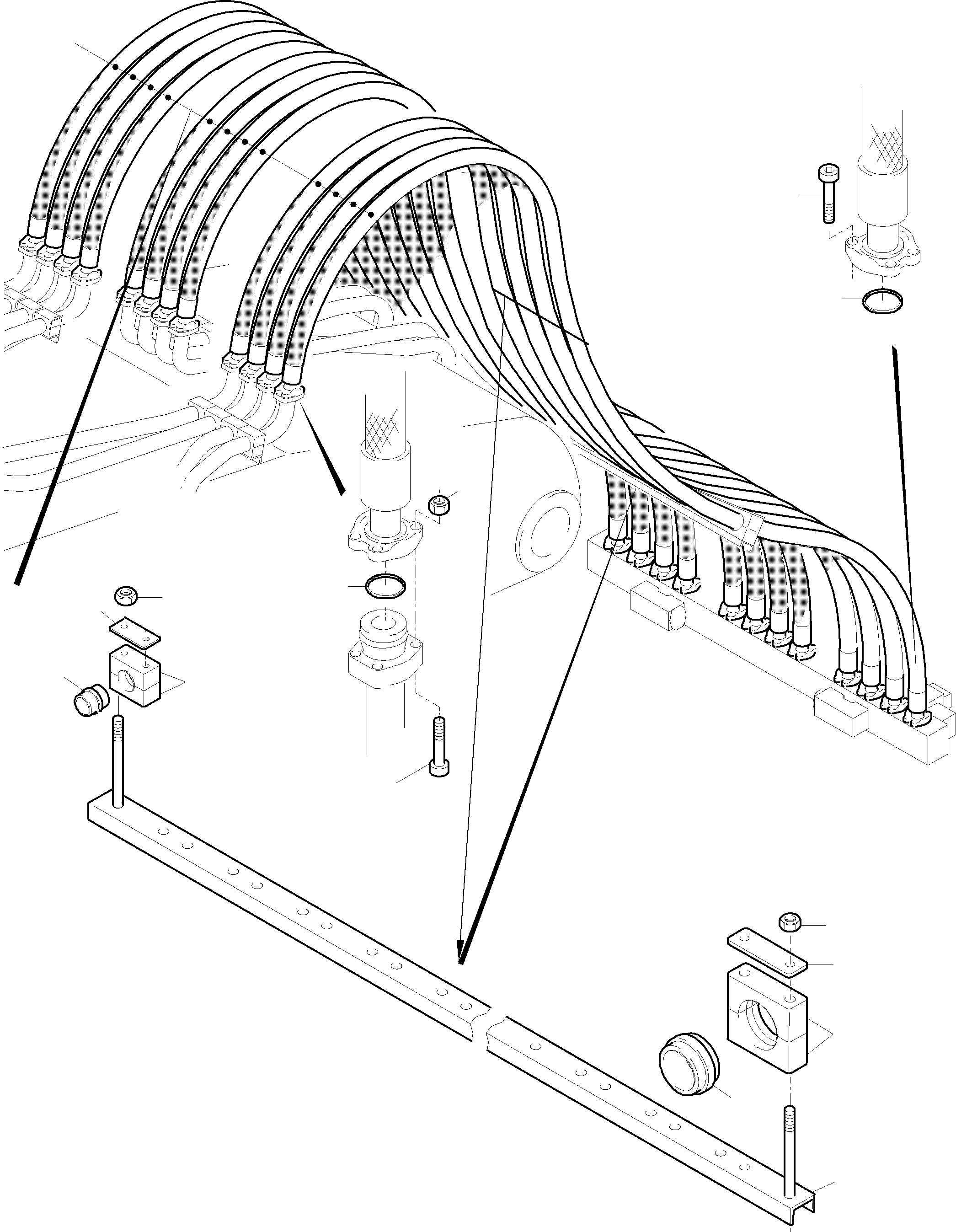

Komatsu parts book diagram for PC5500-6 S/N 15049: HOSES ASSY. - MANIFOLD- BOOM BACKHOE EQUIPMENT

01 02 02 03 04 05 06 07 08 09 1 1 1 1 1 1 1 10 11 12 13 14 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	940 337 40	Hose assy.DN 50x4500	12	InternBDB: 350 FS 2 FS 2 \| InternKon: 933 961 40 / 6
	02	385 243 40	Flange seal	24	InternBDB: 2 NBR 90 \| InternKon: 933 961 40 / 20
	03	319 305 99	Bolt	48	InternBDB: M20x60 /912 10.9 \| InternKon: 933 961 40 / 21
	04	319 313 99	Bolt	48	InternBDB: M20x120 /912 10.9 \| InternKon: 932 139 40 / 32
	05	509 064 98	Clamp set	42	InternBDB: S-5-E \| InternKon: 933 962 40 / 1
	06	500 398 98	Plate	56	InternBDB: S-DP-A-5 \| InternKon: 933 962 40 / 2
	07	505 212 98	Insert	56	InternBDB: S-5-72 \| InternKon: 933 962 40 / 3
	08	502 618 98	Clamp set	2	InternBDB: S-3-E \| InternKon: 933 962 40 / 6
	09	534 004 99	Plate	3	InternBDB: S-DP-A-3 \| InternKon: 933 962 40 / 7
	10	504 926 98	Insert	3	InternBDB: S-3-32 \| InternKon: 933 962 40 / 8
	11	334 601 99	Nut	112	InternBDB: M 16 /985 \| InternKon: 933 962 40 / 4
	12	507 037 98	Nut	6	InternBDB: M 10 /985 8 \| InternKon: 933 962 40 / 5
	13	913 588 40	Clamp line	1	InternKon: 933 961 40 / 1
	14	943 007 40	Clamp line	1	InternKon: 933 961 40 / 4
	15	504 662 98	Nut	48	InternKon: 933 961 40 / 29

Komatsu PC5500-6 S/N 15049 parts catalog PDF

HOSES ASSY. - MANIFOLD- BOOM BACKHOE EQUIPMENT (515-1870c) in PC5500-6 S/N 15049. Diagram image and parts list.
