PRESSURE LINES - FAN MOTORS (OIL COOLER) | PC5500-6 S/N 15049

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

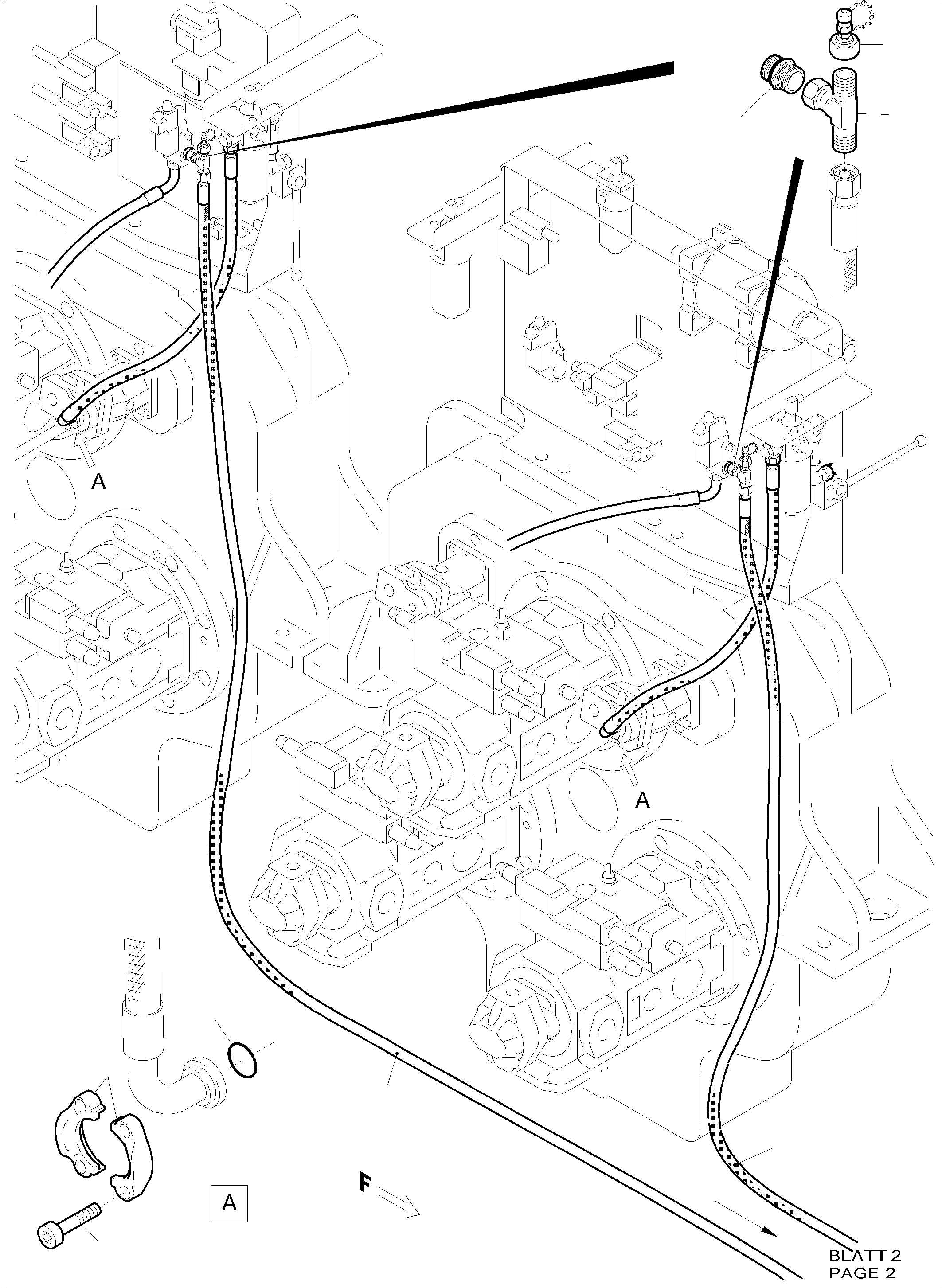

Diagram image 1 of 2

PC5500-6 S/N 15049

01 02 03 03 20 21 28 36 37 38

PC5500-6 S/N 15049

01 02 16 16 16 16 17 17 18 18 18 18 20 21 25 25 25 26 27 27 27 27 28 28 28 30 30 30 30 30 31 31 31 31 32 32 32 32

#	Part Number	Partname	Quantity	Options
01	515 187 98	Hose assy.DN 25x10800	1	InternBDB: DOS 30 / FS 1 - 90 \| InternKon: 913 585 40 / 4
02	513 833 98	Hose assy.DN 25 x 9800	1	InternBDB: DOS 30 / FS 1 - 90 \| InternKon: 913 585 40 / 3
03	513 826 98	Hose assy.DN 25 x 780	2	InternBDB: DOS 30 / FS 1 - 90 \| InternKon: 913 550 40 / 7
16	516 165 98	Socket	4	InternBDB: S 20 / 3942 \| InternKon: 574 550 40 / 25
17	906 927 40	Valve	2	InternBDB: RHD 20-PS/OMD \| InternKon: 574 550 40 / 26
18	372 376 40	Pipe Ш 20	4	InternKon: 574 550 40 / 27
20	047 326 40	Half flange	8	InternBDB: 25 /420
21	319 273 99	Bolt	4	InternBDB: M12x35 /912 10.9 \| InternKon: 913 585 40 / 46
25	389 476 40	Distribution block	3	InternKon: 910 910 40 / 13
26	389 477 40	Distribution block	1	InternKon: 910 910 40 / 14
27	319 281 99	Bolt	16	InternBDB: M12x110 /912 10.9 \| InternKon: 910 910 40 / 19
28	324 524 40	Flange seal	8	InternBDB: 1 NBR 90 \| InternKon: 910 910 40 / 32
30	906 351 40	Olive	8	InternBDB: ES-4 S20 \| InternKon: 574 550 40 / 52
31	371 260 99	Nut	8	InternBDB: AS 20 / 3870 \| InternKon: 574 550 40 / 53
32	374 413 99	Union	4	InternBDB: S 20 E-M \| InternKon: 574 550 40 / 16
36	906 763 40	Union	2	InternBDB: TR 30/25/25PS OMD
37	516 623 98	Socket	2	InternBDB: S25-G / 3945
38	004 684 98	Coupling	2	InternBDB: 25-S 7 WN 34198540
