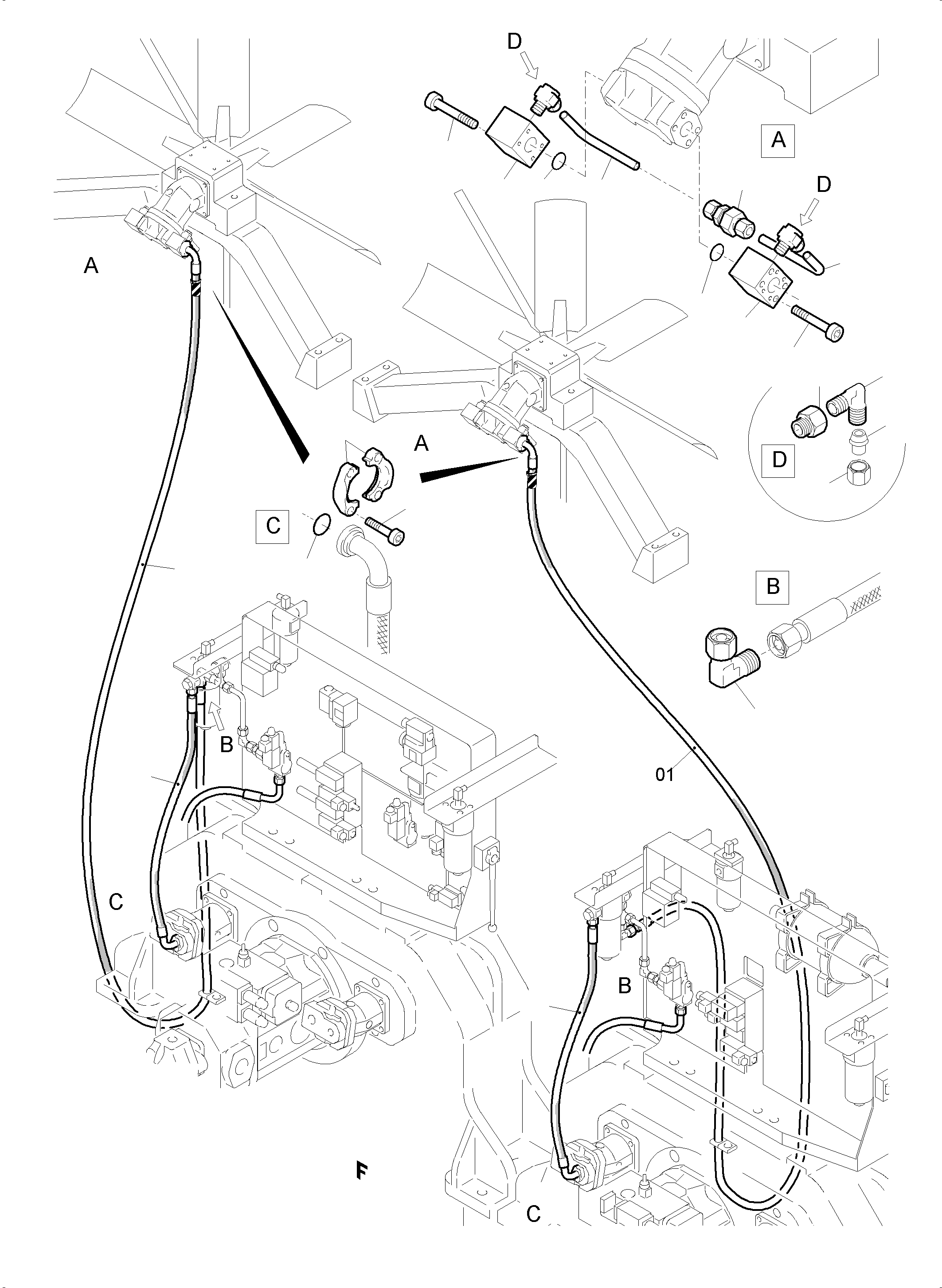

Komatsu parts book diagram for PC5500-6 S/N 15049: PRESSURE LINES - FAN MOTORS (RADIATOR)

01 03 03 04 04 04 05 06 07 08 08 09 09 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11 15 16 17 18 19 19

	#	Part Number	Partname	Quantity	Options	Reference
	01	513 526 98	Hose assy., with fire protection coating, DN 25 x 5700	2	InternBDB: DOS 30 / FS 1 - 90 \| InternKon: 933 976 40 / 11
	03	513 826 98	Hose assy. DN 25 x 780	2	InternBDB: DOS 30 / FS 1 - 90 \| InternKon: 933 976 40 / 7
	04	324 524 40	O-ring	8	InternBDB: 1" \| InternKon: 933 976 40 / 28
	05	006 637 98	Half flange	8	InternBDB: 25 /420 \| InternKon: 933 976 40 / 27
	06	319 273 99	Bolt	16	InternBDB: M12x35 \| InternKon: 933 976 40 / 29
	07	372 187 99	Union	2	InternBDB: DDS 30
	08	505 068 98	Bolt	16	InternBDB: M12x85 \| InternKon: 904 783 40 / 30
	09	873 016 40	Distribution block	4	InternKon: 904 783 40 / 9
	11	504 953 98	Non-return valve	2	InternBDB: RHD 20-PS \| InternKon: 904 783 40 / 37
	15	516 165 98	Socket	4	InternBDB: S 20 / 3942 \| InternKon: 904 783 40 / 34
	16	906 351 40	Olive	8	InternBDB: SE4 S20 / Voss \| InternKon: 904 783 40 / 35
	17	371 260 99	Union nut	4	InternBDB: AS 20 \| InternKon: 904 783 40 / 36
	18	374 413 99	Union	4	InternBDB: S20E-M / 3901 \| InternKon: 904 783 40 / 33
	19	650 370 40	Pipe assy. Ш 20	4	InternKon: 904 783 40 / 18

Komatsu PC5500-6 S/N 15049 parts catalog PDF

PRESSURE LINES - FAN MOTORS (RADIATOR) (515-1817c) in PC5500-6 S/N 15049. Diagram image and parts list.
