#	Part Number	Partname	Quantity	Options
01	942 223 40	Door	1	InternKon: 931 127 40 / 1
02	946 279 40	Wall	1	InternKon: 931 127 40 / 2
03	935 012 40	Door	1	InternKon: 931 127 40 / 3
04	931 128 40	Wall panel	1	InternKon: 931 127 40 / 4
05	931 030 40	Wall panel	3	InternKon: 931 127 40 / 5
06	931 028 40	Wall panel	1	InternKon: 931 127 40 / 6
07	914 751 40	Door frame w/o hinge	1	InternKon: 931 127 40 / 7
08	931 914 40	Door, right	1	InternKon: 931 127 40 / 8
09	902 005 40	Post	1	InternKon: 931 127 40 / 9
10	946 260 40	Post	1	InternKon: 931 127 40 / 10
11	624 004 40	Post	2	InternKon: 931 127 40 / 11
12	902 008 40	Post	1	InternKon: 931 127 40 / 12
13	902 010 40	Post	1	InternKon: 931 127 40 / 13
14	390 199 40	Hinge assy.	17	InternKon: 931 127 40 / 14
15	946 258 40	Door, left	1	InternKon: 931 127 40 / 15
16	943 929 40	Catch	1	InternKon: 931 127 40 / 16
17	902 011 40	Flat steel	1	InternBDB: 50x5x1195 \| InternKon: 931 127 40 / 17
18	902 012 40	Flat steel	1	InternBDB: 50x5x137 \| InternKon: 931 127 40 / 18
19	931 049 40	Flat steel	1	InternBDB: 50x5x456 \| InternKon: 931 127 40 / 19
20	931 050 40	Flat steel	1	InternBDB: 5x125x476 \| InternKon: 931 127 40 / 20
21	499 528 40	Flat steel	1	InternBDB: 50x5x470 \| InternKon: 931 127 40 / 21
22	931 052 40	Strip	1	InternKon: 931 127 40 / 22
23	308 614 99	Bolt	2	InternBDB: M12x120 /931 8.8 \| InternKon: 931 127 40 / 23
24	940 906 40	Fastener le.	4	InternBDB: Emka \| InternKon: 931 127 40 / 24
27	940 907 40	Fastener ri.	4	InternBDB: EMKA \| InternKon: 931 127 40 / 27
28	308 610 99	Bolt	38	InternBDB: M12x80 /931 8.8 \| InternKon: 931 127 40 / 28
29	334 600 99	Nut	46	InternBDB: M 12 /985 8 \| InternKon: 931 127 40 / 29
30	304 369 99	Bolt	32	InternBDB: M30x180 /931 10.9 \| InternKon: 931 127 40 / 30
31	510 725 98	Resilient sleeve	32	InternBDB: 31/60x100 \| InternKon: 931 127 40 / 31
32	427 055 40	Flat steel	4	InternKon: 931 127 40 / 32
33	931 418 40	Plate	2	InternKon: 931 127 40 / 33
34	510 742 98	Resilient sleeve	12	InternBDB: 26,5/45x60 \| InternKon: 931 127 40 / 34
35	308 404 99	Bolt	12	InternBDB: M24x140 /931 10.9 \| InternKon: 931 127 40 / 35
36	902 034 40	Angle	2	InternKon: 931 127 40 / 36
37	514 085 98	Bolt	14	InternBDB: M 12x95 / 93110.9 \| InternKon: 931 127 40 / 37
38	902 019 40	Pipe	2	InternKon: 931 127 40 / 38
39	307 806 99	Bolt	4	InternBDB: M12x40 /933 8.8 \| InternKon: 931 127 40 / 39
40	902 020 40	Plate	1	InternBDB: 5x84x1365 \| InternKon: 931 127 40 / 40
41	902 021 40	Plate	2	InternBDB: 5x84x900 \| InternKon: 931 127 40 / 41
42	902 022 40	Angle	1	InternBDB: 65x7x610 \| InternKon: 931 127 40 / 42
43	642 918 40	Wedge	3	InternKon: 931 127 40 / 43
44	332 334 99	Nut	14	InternBDB: M 12 /934 \| InternKon: 931 127 40 / 44
45	308 612 99	Bolt	10	InternBDB: M12x100 \| InternKon: 931 127 40 / 45
46	539 761 40	Pipe	2	InternBDB: 25x4x20 \| InternKon: 931 127 40 / 46
47	487 094 40	Flat steel	2	InternBDB: 35x5x45 \| InternKon: 931 127 40 / 47
49	561 904 40	Pipe	1	InternBDB: 38x5x60 \| InternKon: 931 127 40 / 49
51	912 701 40	Angle	1	InternBDB: 60x70 \| InternKon: 931 127 40 / 51
52	621 108 40	Pin	1	InternKon: 390 199 40 / 1
53	390 600 40	Round bar steel	2	InternKon: 390 199 40 / 2
54	390 601 40	Round bar steel	1	InternKon: 390 199 40 / 3
55	340 612 99	Washer	1	InternBDB: 16 /1440 \| InternKon: 390 199 40 / 4
56	342 061 99	Cotter pin	1	InternBDB: 4x32 /94 \| InternKon: 390 199 40 / 5
57	350 562 99	Grease nipple	1	InternBDB: AM 10x1 /71412 5.8 \| InternKon: 390 199 40 / 6
60	945 713 40	Roof section	1	InternKon: 931 024 40 / 1
61	931 017 40	Roof section	1	InternKon: 931 024 40 / 2
62	931 022 40	Roof section	1	InternKon: 931 024 40 / 3
63	901 833 40	Threaded rail	2	InternKon: 931 024 40 / 4
64	901 832 40	Threaded rail	2	InternKon: 931 024 40 / 5
65	901 834 40	Threaded rail	2	InternKon: 931 024 40 / 6
66	901 835 40	Threaded rail	2	InternKon: 931 024 40 / 7
67	510 741 98	Resilient sleeve	37	InternBDB: 13/25x50 \| InternKon: 931 024 40 / 8
68	500 816 98	Bolt	37	InternBDB: M12x75 /931 \| InternKon: 931 024 40 / 9
69	307 949 99	Bolt	5	InternBDB: M12x25 /933 \| InternKon: 931 024 40 / 10
70	504 271 98	Lock washer	5	InternBDB: B 12 /127 \| InternKon: 931 024 40 / 11
71	592 259 40	Profiled joint	-2	InternBDB: 4610075 \| InternKon: 931 024 40 / 12
72	490 694 40	Moulding material 20x20	-2	InternBDB: 20x20 /Z 125 \| InternKon: 931 024 40 / 13
73	180 894 40	Plug	11	InternKon: 931 024 40 / 14
75	304 172 99	Bolt	12	InternBDB: M36x260 /931 10.9 \| InternKon: 901 133 40 / 22
76	255 056 40	Washer	12	InternBDB: 37 /6916 \| InternKon: 901 133 40 / 23
80	901 840 40	Roof frame	1	InternKon: 901 830 40 / 2
81	324 741 40	Plug	4	InternKon: 901 830 40 / 7

Komatsu PC4000-6E S/N 08202 parts catalog PDF

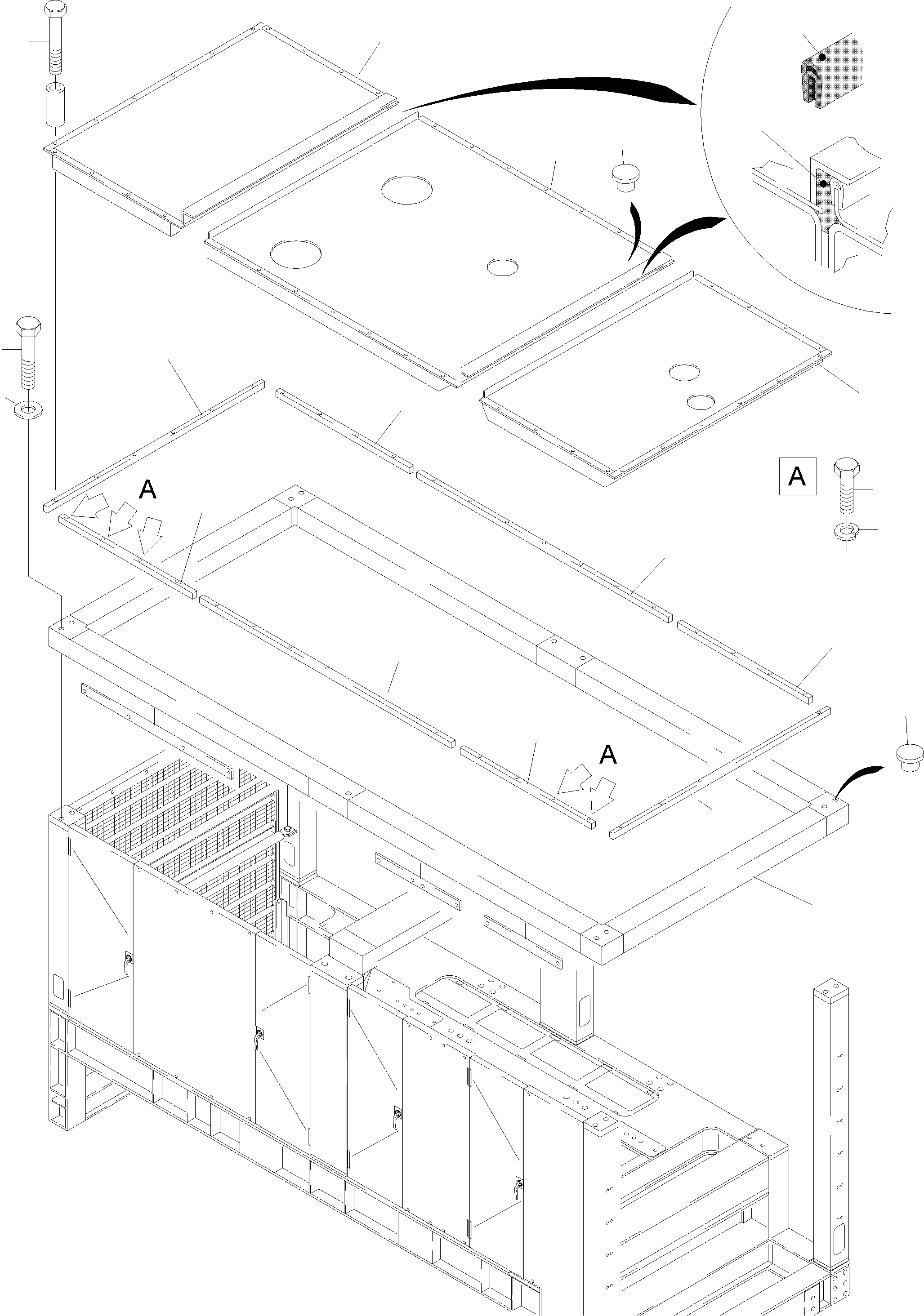

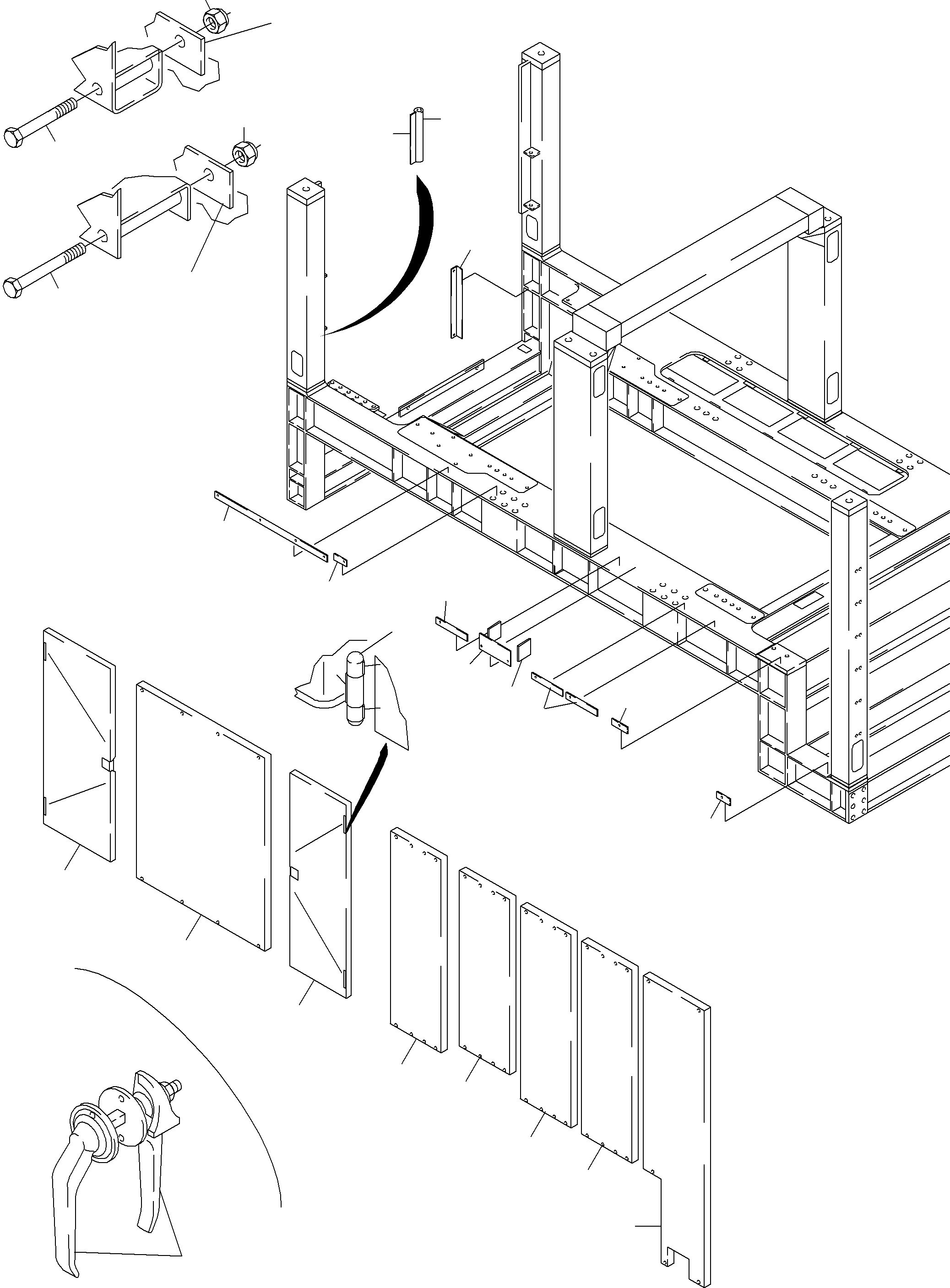

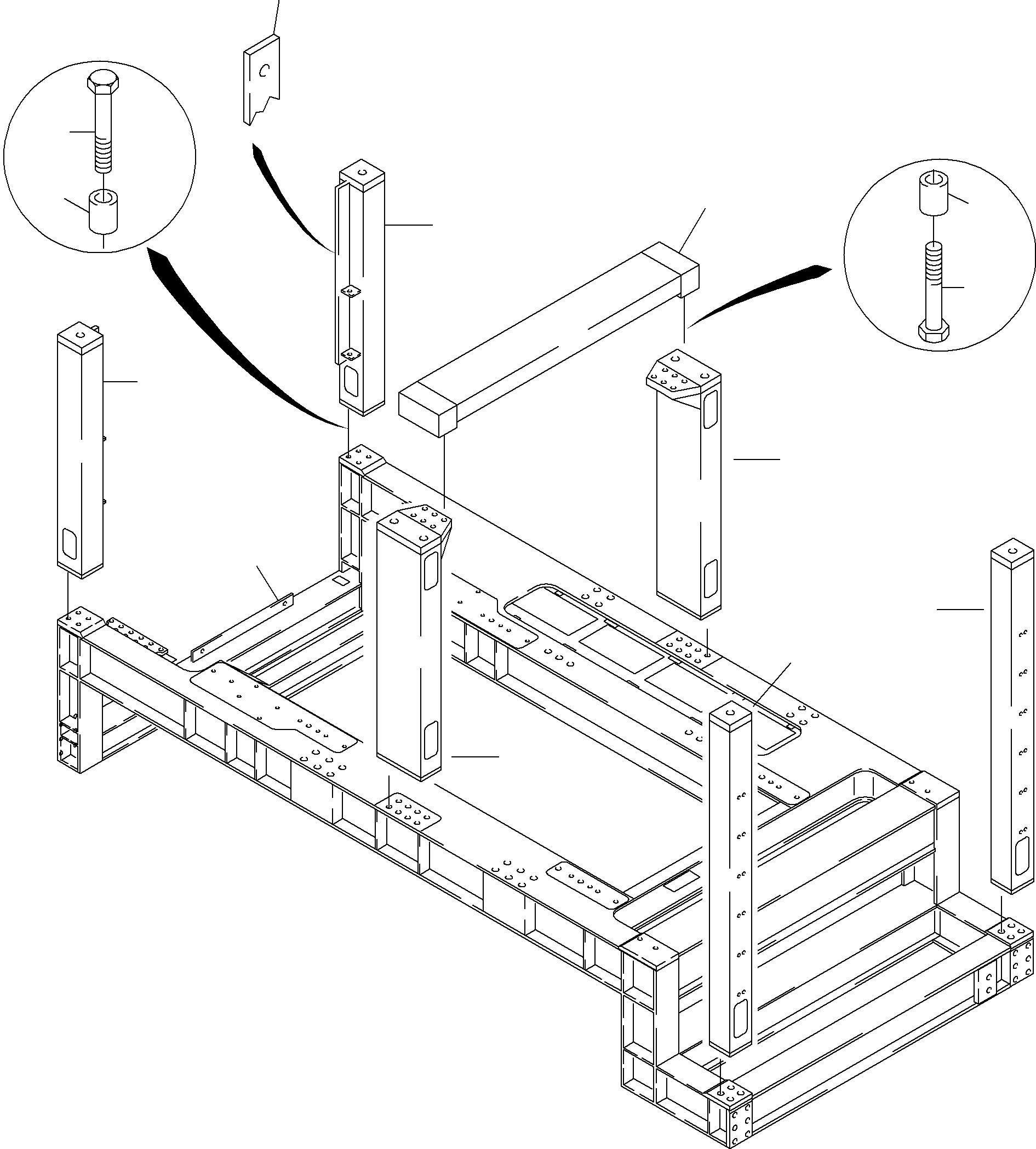

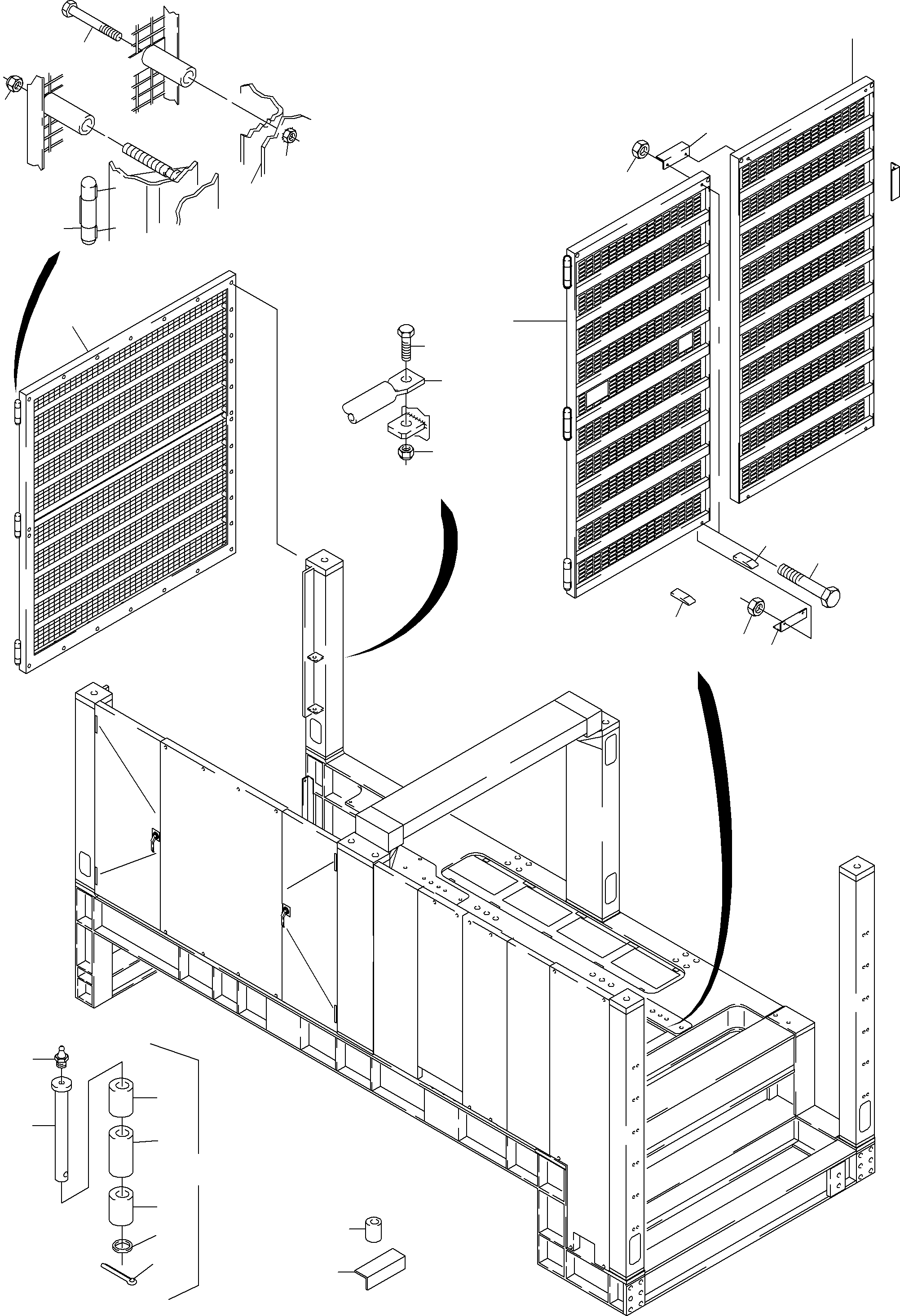

COVERING, ENGINE HOUSING (356-1030d) in PC4000-6E S/N 08202. Diagram image and parts list.
