#	Part Number	Partname	Quantity	Options
01	944 938 40	Harness - control- and filter plate	1	InternKon: 944 014 40 / 14
02	655 834 40	Cable protection hose DN36	-2	InternBDB: VCSG-36B \| InternKon: 944 938 40 / 1
03	655 696 40	Cable protection hose DN29	-2	InternBDB: VCSG-29B \| InternKon: 944 938 40 / 2
04	655 652 40	Cable protection hose DN23	-2	InternBDB: VCSG-23B \| InternKon: 944 938 40 / 3
05	655 651 40	Cable protection hose DN17	-2	InternBDB: VCSG-17B \| InternKon: 944 938 40 / 4
06	655 650 40	Cable protection hose DN12	-2	InternBDB: VCST-12B \| InternKon: 944 938 40 / 5
07	907 947 40	Distributor DN29/23/23	1	InternBDB: PMA BVYR-292323GGG \| InternKon: 944 938 40 / 6
08	940 474 40	Distributor DN36/29/29	1	InternBDB: PMA BVYR-362929GGG \| InternKon: 944 938 40 / 7
09	907 500 40	T-Distributor DN36	4	InternBDB: PMA BVTR-363636GGG \| InternKon: 944 938 40 / 8
10	907 733 40	T-Distributor DN23	4	InternBDB: PMA BVTR-232323GGG \| InternKon: 944 938 40 / 9
11	655 629 40	T-Distributor DN17	1	InternBDB: PMA BFTL-171717GGG \| InternKon: 944 938 40 / 10
12	906 420 40	T-Distributor DN12	3	InternBDB: PMA BFTL-121212TTT \| InternKon: 944 938 40 / 11
13	907 999 40	Pipe adapter DN36/29	5	InternBDB: PMA BAVR-36/29 \| InternKon: 944 938 40 / 12
14	896 558 40	Pipe adapter DN29/23	5	InternBDB: PMA BAVR-29G23G \| InternKon: 944 938 40 / 13
15	655 810 40	Pipe adapter DN29/12	1	InternBDB: PMA BAVR-29G12T \| InternKon: 944 938 40 / 14
16	655 634 40	Pipe adapter DN23/17	1	InternBDB: PMA BAVR-23G17G \| InternKon: 944 938 40 / 15
17	907 971 40	Pipe adapter DN23/12	4	InternBDB: PMA BAVR-23/12 \| InternKon: 944 938 40 / 16
18	655 633 40	Pipe adapter DN17/12	2	InternBDB: PMA BAVR-17G12T \| InternKon: 944 938 40 / 17
19	907 709 40	Cable union	3	InternBDB: Pflitsch 22553 YNPM 13x2,7 \| InternKon: 944 938 40 / 18
20	907 708 40	Cable union	4	InternBDB: Pflitsch 22052 YNPM 6x2,5 \| InternKon: 944 938 40 / 19
21	907 703 40	Cable union	6	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 944 938 40 / 20
22	907 976 40	Fitting DN23	1	InternBDB: PMA BVIVG-U293 \| InternKon: 944 938 40 / 21
23	907 980 40	Fitting DN23	2	InternBDB: PMA BVIVG-U353 \| InternKon: 944 938 40 / 22
24	907 692 40	Fitting DN12	6	InternBDB: PMA BVIR-M162 M16/DN12 \| InternKon: 944 938 40 / 23
25	940 520 40	Fitting DN12	4	InternBDB: PMA BVIR-M202 M20/DN12 \| InternKon: 944 938 40 / 24
26	907 948 40	Fitting DN23	3	InternBDB: PMA BVIR-M253 M25/DN23 \| InternKon: 944 938 40 / 25
27	795 129 73	Plug assy.	2	InternBDB: 0819191206 HD36-24-31PE-059 \| InternKon: 944 938 40 / 26
28	795 126 73	Plug assy.	1	InternBDB: 0819191206 HD36-18-14PE-059 \| InternKon: 944 938 40 / 27
29	795 123 73	Plug assy.	72	InternBDB: 0819105320 0460-202-16141 \| InternKon: 944 938 40 / 28
30	795 132 73	Plug assy.	27	InternBDB: 0819212920 \| InternKon: 944 938 40 / 29
31	655 540 40	Valve-Plug	1	InternBDB: MSUD 24 7062+0,5 M Kabel \| InternKon: 944 938 40 / 30
32	795 134 73	Plug assy.	2	InternBDB: 0819213920 \| InternKon: 944 938 40 / 31
33	256 514 40	Plate	35	InternBDB: 15x30x1,5 Alu \| InternKon: 944 938 40 / 32
34	056 292 40	Cable strap	35	InternBDB: TY 23 M \| InternKon: 944 938 40 / 33
35	940 461 40	Insulating tube	-2	InternBDB: B5x0,6 PUR 70 Shore \| InternKon: 944 938 40 / 34
36	515 213 40	Cable	-2	InternBDB: PUR-Litze 1 mmІ / 1372,8 m \| InternKon: 944 938 40 / 35
37	907 877 40	Cable	-2	InternBDB: KENPUR 2x0,75mmІ \| InternKon: 944 938 40 / 36
38	940 169 40	Cable	-2	InternBDB: KENPUR 600C 4x1mmІ CE \| InternKon: 944 938 40 / 37
39	896 520 40	End pin	21	InternBDB: Pflitsch BD 3,0x25 \| InternKon: 944 938 40 / 38
40	323 961 40	Sleeve	6	InternBDB: 6,3x0,8 35180 \| InternKon: 944 938 40 / 39
41	906 922 40	Protection cap	2	InternBDB: Suco 1166621010 \| InternKon: 944 938 40 / 40
42	940 629 40	Insulating tube	-2	InternBDB: .05060 91F2570 \| InternKon: 944 938 40 / 41
50	894 540 40	Pressure with 24 bar kpl	2	InternBDB: G 1/4 Oeffner \| InternKon: 944 014 40 / 8
51	340 465 99	Washer	43	InternBDB: 10,5/125 \| InternKon: 944 014 40 / 6
52	514 921 98	Nut	27	InternBDB: M 10 /985 \| InternKon: 944 014 40 / 5
53	0819320010	Clip	8	InternKon: 944 014 40 / 7
54	2080619170	Clip assy.	3	InternKon: 944 014 40 / 1
55	932 898 40	Pressure measuring transducer 60bar	2	InternBDB: Hydac HDA 4740-B100-142 \| InternKon: 944 014 40 / 9
56	0443453411	Clip	1	InternKon: 944 014 40 / 2
57	0443452711	Clip	6	InternKon: 944 014 40 / 3
58	0443451412	Clip	20	InternKon: 944 014 40 / 4
59	795 131 73	Plug assy.	4	InternBDB: 0819212820 \| InternKon: 944 014 40 / 13
60	795 461 73	Plug assy.	4	InternBDB: 0819213820 \| InternKon: 944 014 40 / 12
61	952 005 40	Retainer	1	InternKon: 944 014 40 / 11
62	504 788 98	Build up screw	22	InternBDB: S-3/3015 \| InternKon: 944 014 40 / 15
63	504 789 98	Rotation lock	11	InternBDB: S-3/3015 \| InternKon: 944 014 40 / 16
64	516 095 98	Clamp Set	13	InternBDB: S-3-G-42/3015 \| InternKon: 944 014 40 / 17
65	534 004 99	Cover plate	1	InternBDB: S-DP-A-3/3015 \| InternKon: 944 014 40 / 18
66	308 581 99	Bolt	2	InternBDB: M10x70/931 \| InternKon: 944 014 40 / 19
67	343 005 99	Washer	2	InternBDB: 10,5/93 \| InternKon: 944 014 40 / 20
68	894 547 40	Pressure switch 0,5 bar assy.	1	InternBDB: G1/4" \| InternKon: 944 014 40 / 10
69	952 004 40	Retainer	6	InternKon: 944 014 40 / 21
70	592 669 40	Pressure switch 24 bar	2	InternBDB: Suco 0166 416 03 1063 \| InternKon: 894 540 40 / 1
71	515 460 40	Sealing	2	InternBDB: 14,00x18,7x1 \| InternKon: 894 540 40 / 2
72	944 642 40	Retainer	1	InternKon: 944 014 40 / 22
73	942 710 40	Retainer	1	InternKon: 944 014 40 / 23
74	319 135 99	Screw	4	InternBDB: M 6X 45 8.8 DIN 00912 \| InternKon: 944 014 40 / 24
75	513 252 98	Screw	2	InternBDB: M 5X 40 10.9 DIN 00912 \| InternKon: 944 014 40 / 25
76	507 025 98	Nut	4	InternBDB: M 6 DIN 00985 \| InternKon: 944 014 40 / 26
77	507 036 98	Nut	2	InternBDB: M 5 DIN 00985 \| InternKon: 944 014 40 / 27
78	340 463 99	Washer	8	InternBDB: B 6,4 140HV DIN 00125 \| InternKon: 944 014 40 / 28
79	340 461 99	Washer	4	InternBDB: B 5,3 140HV DIN 00125 \| InternKon: 944 014 40 / 29
80	654 904 40	Pressure switch	1	InternBDB: 0,5bar steigend 0166 404 03 \| InternKon: 894 547 40 / 1
81	507 596 98	Washer	19	InternBDB: SHB A 11 ST DIN 07989 \| InternKon: 944 014 40 / 30
82	515 801 98	Resilient sleeve 8,4/25x20	1	InternBDB: 8,4/25X 20 42CRMO4-TQ+T WN 34194840 \| InternKon: 944 014 40 / 31
83	307 777 99	Bolt	14	InternBDB: M10 X 25 8.8 DIN 00933 \| InternKon: 944 014 40 / 32

Komatsu PC4000-6 S/N 08195 parts catalog PDF

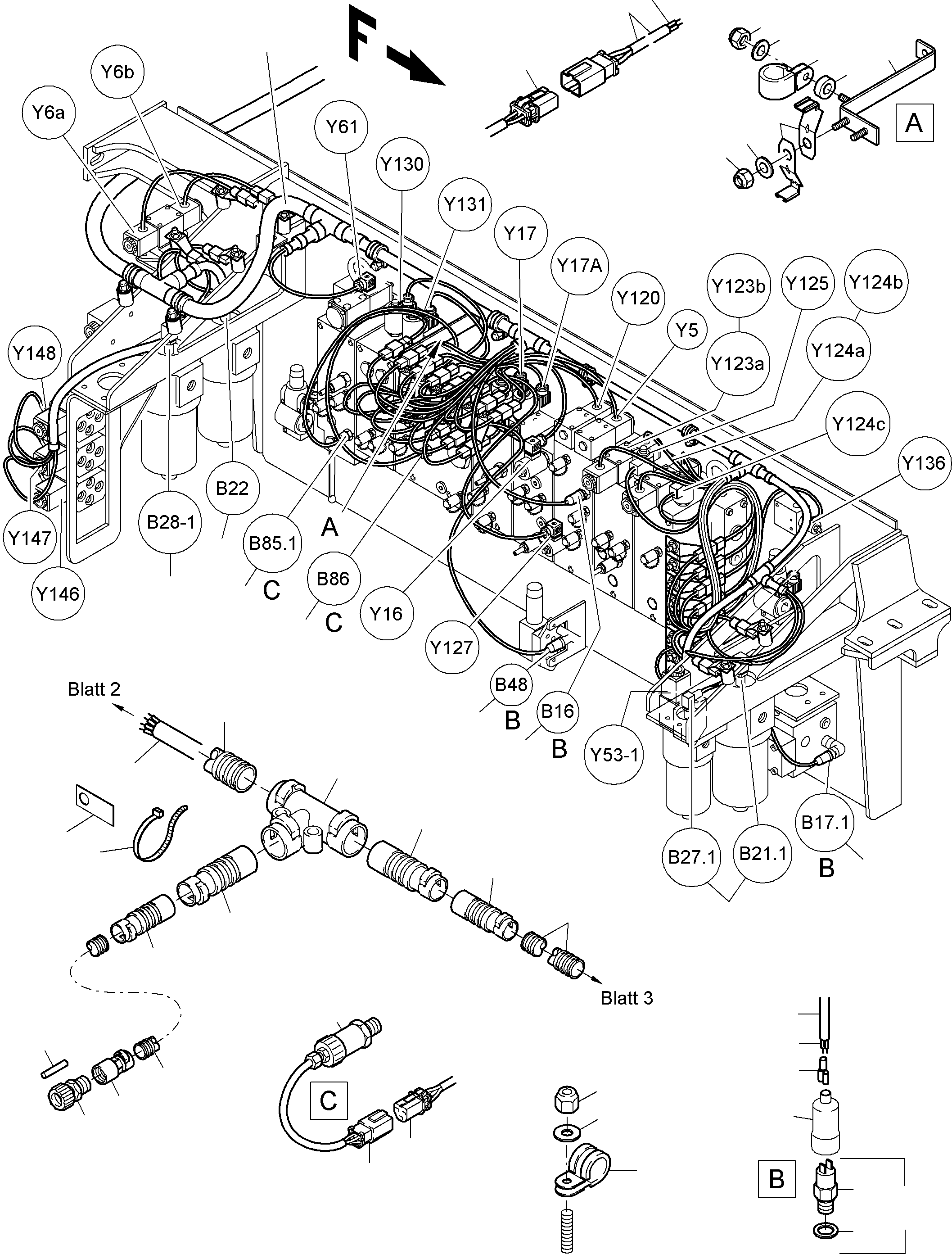

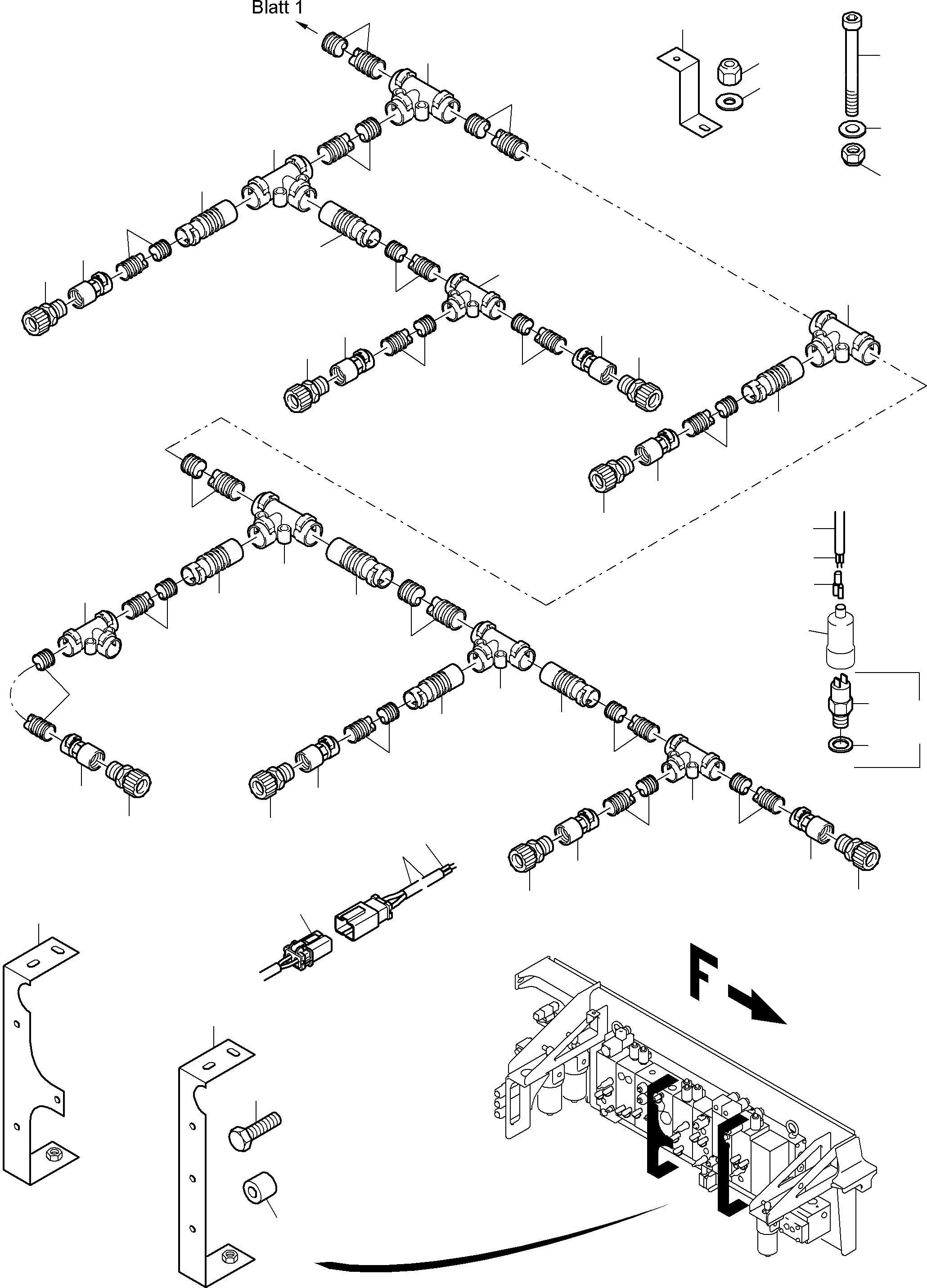

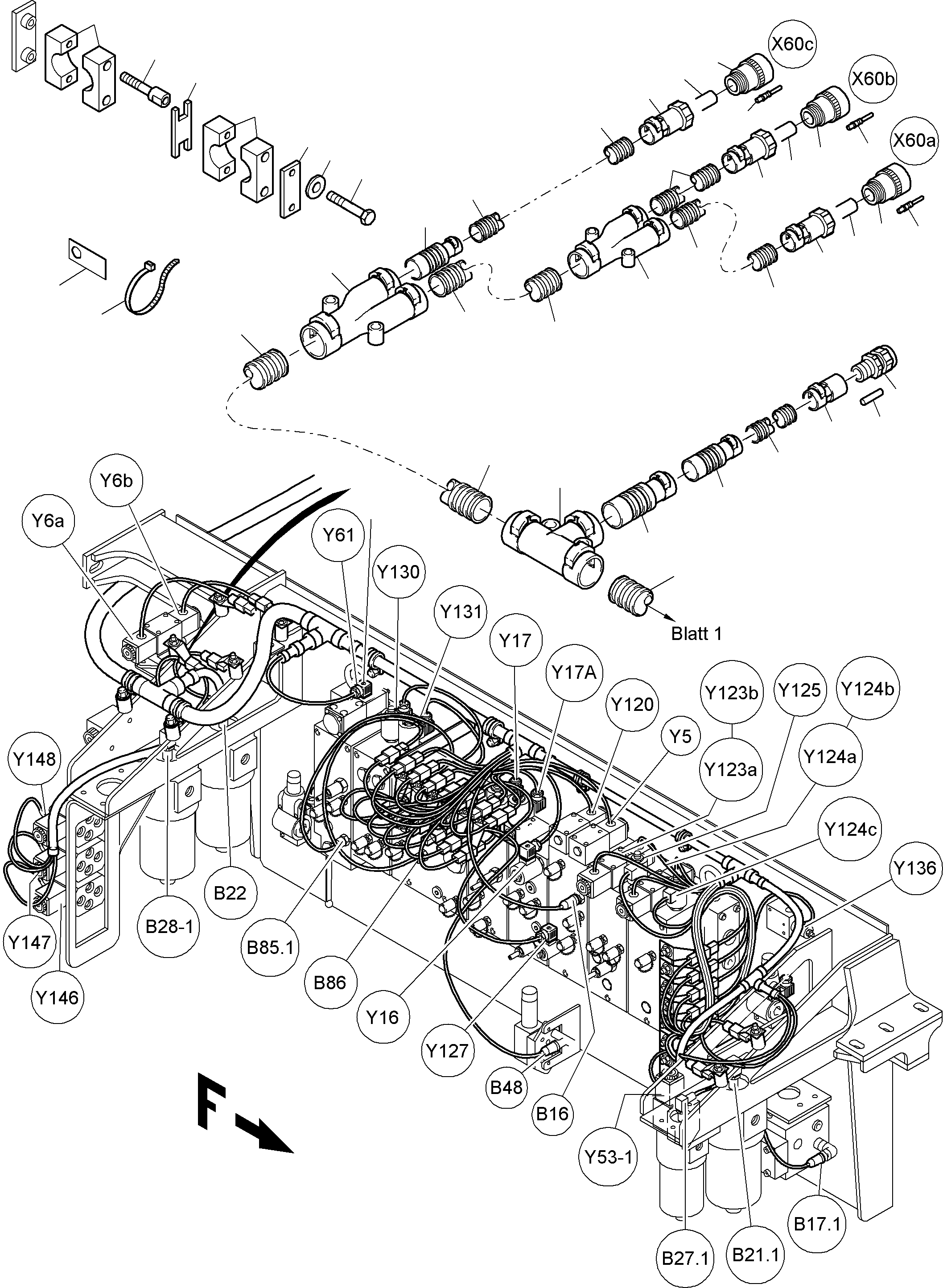

CABLES - CONTROL- AND FILTER PLATE (355-2183d) in PC4000-6 S/N 08195. Diagram image and parts list.
