Diagram image 1 of 4

PC4000-6 S/N 08195

01 02 03 03 04 04 05 07 08 08 09 09 09 10 10 10 10 10 103 104 105 106 107 108 109 11 11 11 11 110 12 12 120 121 121 122 122 123 125 13 14 15 16 17 18 19 19 20 21 22 23 24 24 25 40 42 68 73 81 86 87 88 89 90 90 91 91 91 91 91 92 93 93 94 95 95 96 97 98

PC4000-6 S/N 08195

11 115 115 116 116 117 117 118 118 16 16 16 21 21 21 21 21 24 30 31 32 33 34 36 38 39 41 42 42 43 44 44 44 44 44 45 46 48 48 48 48 53 53 53 54 54 55 55 55 55 56 56 56 58 59 60 61 61 62 62 62 63 65 66 67 67 69 69 70 73 74 78 79 80

PC4000-6 S/N 08195

11 11 12 137 137 15 16 16 21 21 21 21 21 24 30 30 31 41 41 41 41 42 43 45 46 46 47 48 49 52 53 53 54 54 54 56 57 58 59 61 62 62 62 64 69 69 69 73 75 76 79 82 83 84

PC4000-6 S/N 08195

107 11 130 130 131 132 132 132 132 132 133 134 134 134 135 135 136 136 137 137 137 137 138 139 139 139 139 139 24 30 31 34 34 34 35 35 36 41 41 41 41 41 42 42 42 42 42 43 44 45 45 47 48 48 49 49 50 51 51 53 54 54 56 56 69 69 69 72 73 75 77 77 77

#	Part Number	Partname	Quantity	Options
01	938 318 40	Level probe with plug assy.	1	InternKon: 943 913 40 / 1
02	943 914 40	Pressure transducer with plug assy.	1	InternKon: 943 913 40 / 2
03	517 122 98	Lock washer	3	InternBDB: 10 WN 655 938 40 \| InternKon: 943 913 40 / 5
04	507 596 98	Washer	3	InternBDB: 14/1440 \| InternKon: 943 913 40 / 4
05	307 779 99	Bolt	1	InternBDB: M 10x30 / 933 \| InternKon: 943 913 40 / 10
07	896 669 40	Level probe	1	InternBDB: Bedia 425 031 mit Kabelenden \| InternKon: 938 318 40 / 1
08	795 461 73	Plug	2	InternBDB: 0819213820 \| InternKon: 938 318 40 / 2
09	655 642 40	Circular bearing	6	InternBDB: Freudenberg AD25 H20 M6 B10 11MN60 5218 132
10	512 975 98	Nut	12	InternBDB: M 6 /985
11	350 762 99	Washer	6	InternBDB: R 6,6 /440
12	055 108 40	Cable lug 2,5	7	InternKon: 944 121 40 / 1
13	055 109 40	Cable lug 4-6	4	InternKon: 944 121 40 / 2
14	055 112 40	Cable lug 10	1	InternKon: 944 121 40 / 5
15	255 745 40	Protection cap	13	InternBDB: Bosch 3 130 558 000 \| InternKon: 944 121 40 / 3
16	940 461 40	Insulating tube 5x0,6	-2	InternBDB: B5x0,6 PUR 70Shore \| InternKon: 944 121 40 / 10
17	891 050 40	Plug assy.	1	InternKon: 944 121 40 / 4
18	793 268 73	Fuse with cable 400A	1	InternBDB: Cummi 400 7288
19	635 965 40	Relay	2	InternBDB: Cummi 305 0692
20	765 579 73	Time lag relay	1	InternBDB: Cummi 362 8971
21	655 650 40	Protecting hose DN 12	-2	InternBDB: VCST-12B \| InternKon: 944 121 40 / 6
22	515 214 40	Cable 2,5	-2	InternKon: 944 121 40 / 7
23	635 043 40	Name plate	17	InternBDB: B5 55476 \| InternKon: 944 121 40 / 8
24	056 292 40	Cable strap	43	InternBDB: TY 23 M \| InternKon: 944 121 40 / 9
25	907 511 40	Cable lug 2,5	1	InternBDB: 12-250R 2,5F M12 Blau \| InternKon: 944 121 40 / 11
30	0819212920	Plug assy.	5	InternBDB: 795 132 73 \| InternKon: 939 394 40 / 1
31	0819213920	Plug assy.	4	InternBDB: 795 134 73 \| InternKon: 939 394 40 / 3
32	0819111206	Plug	1	InternBDB: HD36-18-8PE-059 Deutsch 795 125 73 \| InternKon: 939 394 40 / 9
33	0819105340	Pin contact	8	InternBDB: 0462-202-12141 Deutsch 795 124 73 \| InternKon: 939 394 40 / 17
34	0819105320	Pin contact	80	InternBDB: 0462-202-16141 Deutsch 939 350 40/Pos.17 795 157 73 \| InternKon: 939 394 40 / 18
35	0819214920	Plug assy.	2	InternBDB: 939 350 40 / Pos.24 795 495 73 \| InternKon: 939 394 40 / 4
36	0819191206	Plug	2	InternBDB: HD36-24-31PE-059 Deutsch 939 350 40/Pos.14 795 129 73 \| InternKon: 939 394 40 / 6
38	907 980 40	Fitting DN 23	2	InternBDB: PMA BVIVG-U353 \| InternKon: 939 394 40 / 10
39	907 975 40	Fitting DN 17	1	InternBDB: PMA BVIVG-U292 \| InternKon: 939 394 40 / 11
40	515 213 40	Cable 1,0 light blue	-2	InternBDB: 939 350 40/Pos.16 \| InternKon: 939 394 40 / 70
41	655 649 40	Protecting hose DN 10	-2	InternBDB: VCST-10B 939 350 40/Pos.3 \| InternKon: 939 394 40 / 16
42	655 652 40	Protecting hose DN 23	-2	InternBDB: VCSG-23B 939 350 40/Pos.2 \| InternKon: 939 394 40 / 12
43	913 246 40	Bushing assy.	2	InternKon: 939 394 40 / 7
44	655 834 40	Protecting hose DN 36	-2	InternBDB: VCSG-36B \| InternKon: 939 394 40 / 15
45	655 651 40	Protecting hose DN 17	-2	InternBDB: VCST-17B \| InternKon: 939 394 40 / 22
46	906 420 40	T-Distributor DN 12	3	InternBDB: PMA BFTL-12 12 12 TTT \| InternKon: 939 394 40 / 34
47	655 629 40	T-Distributor DN 17	2	InternBDB: PMA BFTL-17 17 17 GGG \| InternKon: 939 394 40 / 31
48	907 500 40	T-Distributor DN 36	5	InternBDB: PMA BVTR 36 36 36 \| InternKon: 939 394 40 / 27
49	655 632 40	Pipe adapter DN 17/10	3	InternBDB: PMA BAVR-17 G 10 T \| InternKon: 939 394 40 / 32
50	655 635 40	Pipe adapter DN 29/17	1	InternBDB: PMA BAVR-29 G 17 G \| InternKon: 939 394 40 / 29
51	655 809 40	Pipe adapter DN 29/10	2	InternBDB: PMA BAVR-29 G 10 T 939 350 40/Pos.7 \| InternKon: 939 394 40 / 30
52	655 633 40	Pipe adapter DN 17/12	1	InternBDB: PMA BAVR-17 G 12 T \| InternKon: 939 394 40 / 33
53	896 558 40	Pipe adapter DN 29/23	4	InternBDB: PMA BAVR-29 G 23 G 939 350 40/Pos.6 \| InternKon: 939 394 40 / 28
54	655 631 40	Pipe adapter DN 12/10	2	InternBDB: PMA BAVR-12 G 10 T \| InternKon: 939 394 40 / 35
55	655 810 40	Pipe adapter DN 29/12	4	InternBDB: PMA BAVR-29 G 12 G \| InternKon: 939 394 40 / 25
56	907 999 40	Pipe adapter DN36/29	5	InternBDB: PMA BAVR-36/29 \| InternKon: 939 394 40 / 26
57	655 634 40	Pipe adapter DN 23/17	1	InternBDB: PMA BAVR-23 G 17 G \| InternKon: 939 394 40 / 55
58	907 733 40	T-Distributor DN 23	2	InternBDB: PMA BVTR-23 23 23 \| InternKon: 939 394 40 / 56
59	940 520 40	Fitting M20/DN12	2	InternBDB: PMA BVIR-M202 \| InternKon: 939 394 40 / 36
60	907 708 40	Cable union	1	InternBDB: Pflitsch 22052 YNPM 6x2,5 \| InternKon: 939 394 40 / 37
61	907 692 40	Fitting M16/DN12	3	InternBDB: PMA BVIR-M162 \| InternKon: 939 394 40 / 39
62	896 520 40	End pin	11	InternBDB: Pflitsch B0 3,0x25 \| InternKon: 939 394 40 / 38
63	896 521 40	End pin	2	InternBDB: Pflitsch B0 4,0x25 \| InternKon: 939 394 40 / 47
64	055 110 40	Cable lug	1	InternKon: 939 394 40 / 63
65	940 451 40	Fitting M12/M25	1	InternBDB: PMA BVIR-M252 \| InternKon: 939 394 40 / 45
66	940 474 40	Connector distributor DN 36/29	1	InternBDB: PMA BVYR - 36 29 29 GGG \| InternKon: 939 394 40 / 24
67	651 461 40	Housing assy.	1	InternKon: 939 394 40 / 2
68	940 169 40	Cable 4x1	-2	InternBDB: 939 350 40/Pos.26 \| InternKon: 939 394 40 / 72
69	907 703 40	Cable union	8	InternBDB: Pflitsch 21650 YNPM4x3 939 350 40/ Pos.10 \| InternKon: 939 394 40 / 42
70	907 711 40	Cable union	1	InternBDB: Pflitsch 22553 YNPM6x4,0 \| InternKon: 939 394 40 / 46
72	907 704 40	Cable union	1	InternBDB: Pflitsch 21650 YNPM3x3,5 \| InternKon: 939 394 40 / 52
73	256 514 40	Plate	22	InternBDB: 939 350 40/ Pos.23 \| InternKon: 939 394 40 / 41
74	940 463 40	Insulating tube 7x0,7	-2	InternBDB: B7x0,7 PUR 70Shore \| InternKon: 939 394 40 / 44
75	940 462 40	Insulating tube 6x0,6	-2	InternBDB: B6x0,6 PUR 70Shore 939 350 40/ Pos.15 \| InternKon: 939 394 40 / 48
76	940 459 40	Insulating tube 3x0,4	-2	InternBDB: B3x0,4 PUR 70Shore \| InternKon: 939 394 40 / 51
77	940 464 40	Insulating tube 8x0,7	-2	InternBDB: B8x0,7 PUR 70Shore \| InternKon: 939 394 40 / 53
78	940 465 40	Insulating tube 10x0,7	-2	InternBDB: B10x0,7 PUR 70Shore \| InternKon: 939 394 40 / 57
79	907 971 40	Pipe adapter DN 23/12	1	InternBDB: PMA BAVR-23 G 12 G \| InternKon: 939 394 40 / 5
80	907 479 40	Cable union DN 29	1	InternBDB: BVNV-M329 \| InternKon: 939 394 40 / 8
81	634 576 40	Cable	-2	InternBDB: Bьrklin L-Leit-8L 100AA-201 \| InternKon: 939 394 40 / 60
82	907 707 40	Cable union	1	InternBDB: Pflitsch 22052 YNPM 2x2,5/2x6 \| InternKon: 939 394 40 / 50
83	944 020 40	Sealing plug	1	InternKon: 939 394 40 / 59
84	896 522 40	End pin	1	InternBDB: Pflitsch B0 6,0x25 \| InternKon: 939 394 40 / 61
86	504 818 98	Clamp set	13	InternBDB: S-3-G-38/3015 \| InternKon: 942 781 40 / 2
87	534 004 99	Cover plate	13	InternBDB: S-DP-A-3/3015 \| InternKon: 942 781 40 / 3
88	308 581 99	Bolt	24	InternBDB: M10x70/931 \| InternKon: 942 781 40 / 4
89	007 625 98	Clamp 42/25	5	InternBDB: RSGU 1100 42/25 \| InternKon: 942 781 40 / 8
90	307 777 99	Bolt	3	InternBDB: M10x25/933 \| InternKon: 942 781 40 / 9
91	507 037 98	Nut	37	InternBDB: M 10 / 985 943 913 40 / Pos.3 \| InternKon: 942 781 40 / 7
92	0443451610	Clip	10	InternBDB: 943 913 40 / Pos.3 \| InternKon: 942 781 40 / 5
93	0443452110	Clip	13	InternKon: 942 781 40 / 11
94	0443451210	Clip	24	InternKon: 942 781 40 / 12
95	0819320010	Clip	6	InternBDB: 943 913 40 / Pos.6 \| InternKon: 942 781 40 / 13
96	507 596 98	Washer	34	InternBDB: 11/7989 \| InternKon: 942 781 40 / 6
97	947 904 40	Relay plate	1	InternKon: 942 781 40 / 15
98	947 903 40	Protection guard	1	InternKon: 942 781 40 / 16
103	307 752 99	Bolt	7	InternBDB: M8x20/933 \| InternKon: 942 781 40 / 17
104	334 599 99	Nut	7	InternBDB: M8/985 \| InternKon: 942 781 40 / 18
105	510 744 98	Resilent sleeve	3	InternBDB: 13/25x32 WN 341 948 40 \| InternKon: 942 781 40 / 20
106	308 576 99	Bolt	3	InternBDB: M10x45/931 \| InternKon: 942 781 40 / 21
107	939 350 40	Harness-Engine control	1	InternKon: 942 781 40 / 22
108	939 394 40	Harness engine	1	InternKon: 942 781 40 / 1
109	944 941 40	Retainer	1	InternKon: 942 781 40 / 10
110	944 121 40	Harness starter relay	1	InternKon: 942 781 40 / 14
115	655 547 40	Housing	1	InternBDB: Amp. 282189-1 \| InternKon: 651 461 40 / 1
116	655 548 40	Contact seal	2	InternBDB: Amp. 929937-1 \| InternKon: 651 461 40 / 2
117	655 549 40	Single seal	2	InternBDB: Amp. 828905-1 \| InternKon: 651 461 40 / 3
118	655 550 40	Rubber grommet	1	InternBDB: Amp. 880810-1 \| InternKon: 651 461 40 / 4
120	952 001 40	Cable battery MTR-GND	1	InternKon: 944 008 40 / 42
121	600 209 99	Cable shoe 10-95	2	InternBDB: 10-95 /46234 \| InternKon: 952 001 40 / 3
122	056 076 40	Rubber cap	2	InternKon: 952 001 40 / 4
123	906 651 40	Battery cable 95	-2	InternKon: 952 001 40 / 7
125	906 700 40	Pressure transducer	1	InternBDB: BD-Sensor DMP331 110-1000-6-5-9-2-1-001 \| InternKon: 943 914 40 / 1
130	0819181206	Plug	2	InternBDB: HD36-24-23PE-059 Deutsch 795 128 73 \| InternKon: 939 350 40 / 12
131	0819192206	Plug	2	InternBDB: HD36-24-31SE-059 Deutsch 795 705 73 \| InternKon: 939 350 40 / 13
132	0819100770	Sealing plug	16	InternBDB: 114017 KES 795 122 73 \| InternKon: 939 350 40 / 19
133	0819105420	Socket	8	InternBDB: 0462-201-16141 Deutsch 795 154 73 \| InternKon: 939 350 40 / 18
134	655 696 40	Protecting hose DN 29	-2	InternBDB: VCSG-29B \| InternKon: 939 350 40 / 1
135	907 947 40	Connector distributor DN 29/23	2	InternBDB: PMA BVYR - 29 23 23 GGG \| InternKon: 939 350 40 / 23
136	906 079 40	T-Distributor DN 29	2	InternBDB: PMA BFTL-29 29 29 GGG \| InternKon: 939 350 40 / 4
137	940 471 40	Fitting M16/DN10	6	InternBDB: PMA BVIR-M160 \| InternKon: 939 350 40 / 9
138	907 877 40	Cable 2x0,75	-2	InternKon: 939 350 40 / 25
139	907 976 40	Fitting DN 23	5	InternBDB: PMA BVIVG-U293 939 350 40/Pos.8 \| InternKon: 939 350 40 / 8
\|$$118			-2

Komatsu PC4000-6 S/N 08195 parts catalog PDF

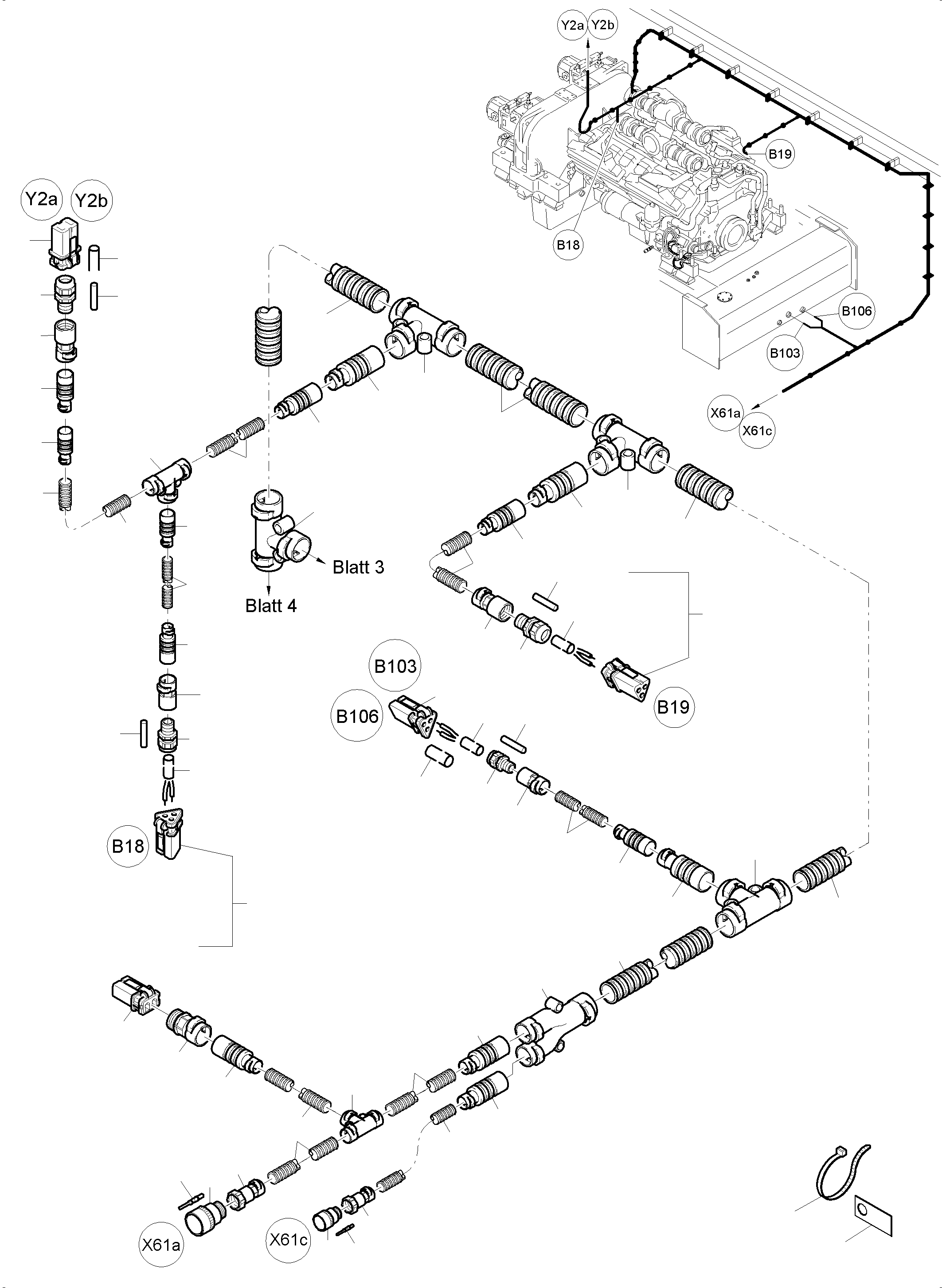

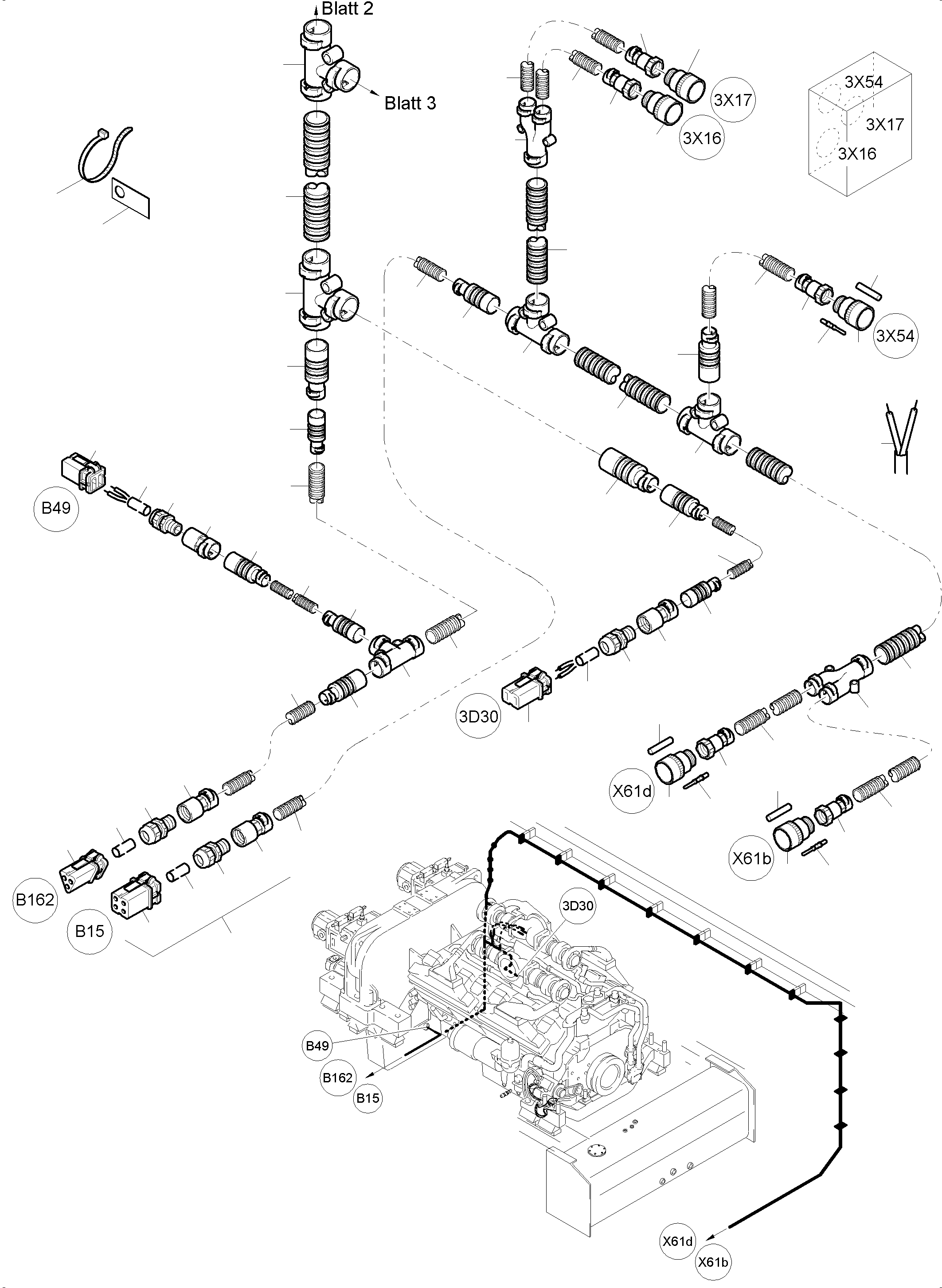

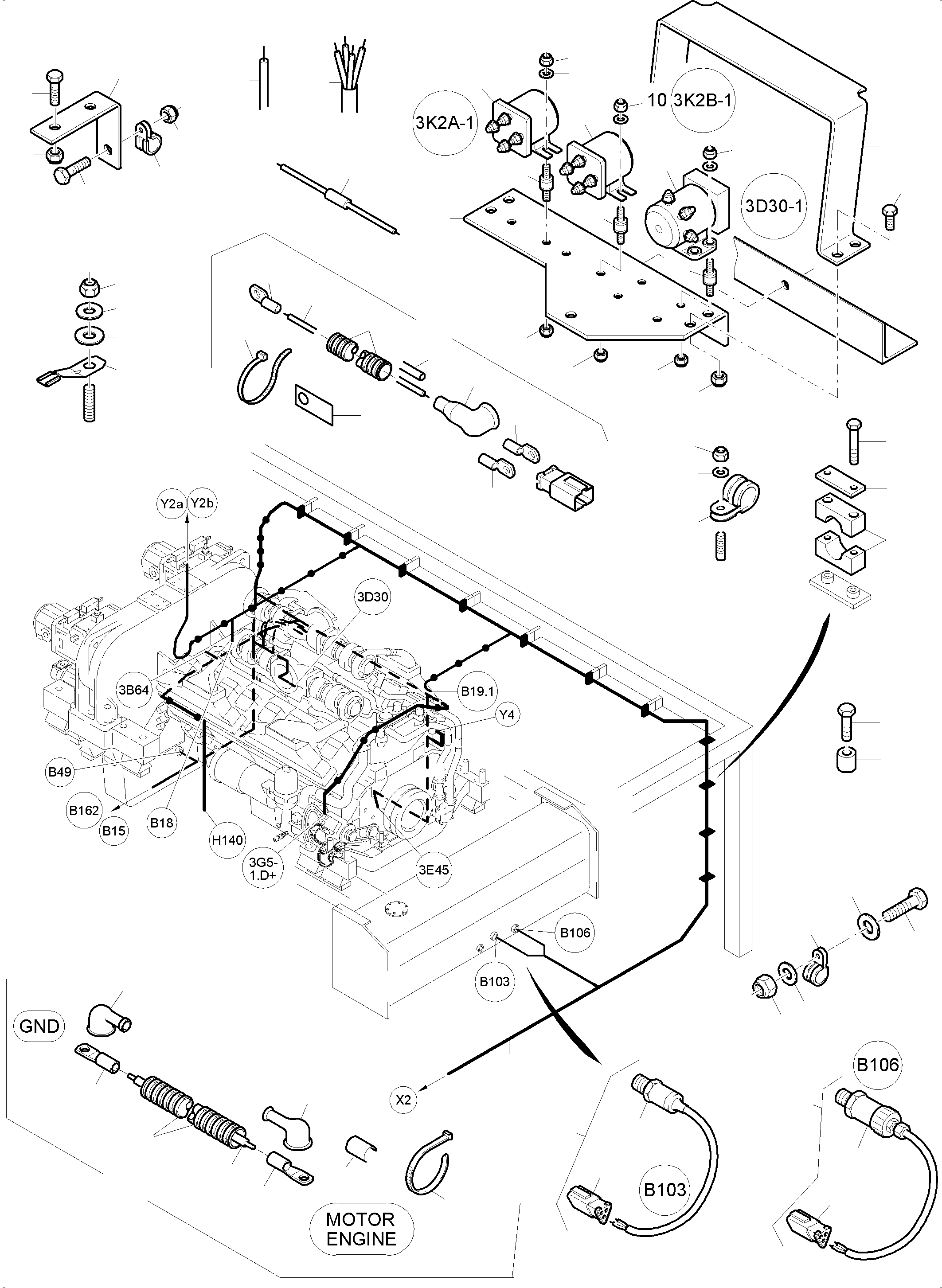

CABLES - ENGINE AND TRANSMITTER (355-2185e) in PC4000-6 S/N 08195. Diagram image and parts list.
