PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	934 429 40	Switch plate (2 grease pumps)	1	InternKon: 938 445 40 / 1
?	934 430 40	Instrumental board	1	InternKon: 894 517 40 / 1
?	935 302 40	Shift plate	1	InternKon: 925 782 40 / 15
?	551 272 40	Ignition switch	1	InternBDB: Merit 327050 M601 \| InternKon: 938 445 40 / 3
?	764 535 73	Key	1	InternBDB: M601
?	896 716 40	Hour meter	1	InternBDB: Moto-Meter 643.003.1006 D=52 mm \| InternKon: 894 517 40 / 2
?	431 163 40	Remote thermometer (hydr.-oil)	1	InternBDB: Moto-Meter 641.011.777 /120єC \| InternKon: 894 517 40 / 3
?	440 129 40	Volt meter	1	InternBDB: Moto-Meter 685.002.1018 \| InternKon: 894 517 40 / 4
?	795 498 73	Ampere meter	2	InternBDB: Mь+Weigert 0-125/250 175/5 5/10 E50/63
?	324 400 40	Turn switch	3	InternBDB: Merit 261000 910 781 40 Pos. 02 \| InternKon: 938 445 40 / 8
?	324 401 40	Turn switch 1-stage	1	InternBDB: Merit 260490 \| InternKon: 938 445 40 / 9
?	324 402 40	Turn switch 2-stage	1	InternBDB: Merit 263490 \| InternKon: 938 445 40 / 10
?	399 702 40	Turn switch	1	InternBDB: Merit 262000 916 685 40 Pos. 03 \| InternKon: 938 445 40 / 12
?	440 369 40	Turn switch 3-stage	1	InternBDB: Merit 269000 \| InternKon: 938 445 40 / 11
?	896 473 40	Toggle switch	1	InternBDB: Kissling 08.1.2.10 F \| InternKon: 938 445 40 / 5
?	515 299 40	Luminous touch contact	4	InternBDB: 51.151.022 \| InternKon: 938 445 40 / 2
?	515 300 40	Push hood	4	InternBDB: 51-955.7 \| InternKon: 938 445 40 / 14
?	414 866 40	Ignition switch	1	InternBDB: Merit 327052 \| InternKon: 938 445 40 / 4
?	698 239 73	Key	1	InternBDB: Merit 14644
?	490 518 40	Alarm transmitter	1	InternBDB: Lumitas 14810902 \| InternKon: 938 445 40 / 6
?	592 661 40	Bulb	4	InternBDB: 31-963.48 \| InternKon: 938 445 40 / 15
?	631 556 40	Graphical symbol	1	InternKon: 938 445 40 / 16
?	764 580 73	Volt meter	1	InternBDB: 0-7,2KV WDI 6600/100V E50/63 100V
?	891 033 40	Emergency switch off assy.	1	InternKon: 938 445 40 / 7
?	655 686 40	Impact key	1	InternBDB: Elan EDRR 40 RT 027 1270 \| InternKon: 891 033 40 / 1
?	655 676 40	Spring element	1	InternBDB: Elan EFR 028 0287 \| InternKon: 891 033 40 / 2
?	635 115 40	Contact element	1	InternBDB: Elan EF 220 F.1 0281388 \| InternKon: 891 033 40 / 3
?	635 652 40	Contact element	1	InternBDB: Elan EF 303 F.2 0281380 \| InternKon: 891 033 40 / 4
?	385 213 40	Cigarette lighter	1	InternBDB: Hella 24V 8 EZ 00459512
?	919 429 40	Socket plate	1	InternKon: 919 428 40 / 11
?	440 307 99	Socket	2	InternKon: 933 341 40 / 2
?		Display	1	InternBDB: E-ST 907 496 40 \| InternKon: 934 934 40 / 9
?	896 732 40	Console ashtray	1	InternBDB: Happich 550 0112 / 114 002181 Matek
?	793 765 73	Switch	1	InternBDB: Fa. Mekra 12/24 083200233
?	940 835 40	Radio	1	InternBDB: Siemens CD 5326 X-24V \| InternKon: 934 934 40 / 6
?	769 590 73	Switch (heater)	1	InternBDB: Fa. Matek 117 200 195 /Aurora 335-100-0201
?	769 591 73	Potentiometer assy.	2	InternBDB: Sьtrak 26.11.05.018
?	769 592 73	Control knob	2	InternBDB: Sьtrak 26.43.01.018
?	505 940 99	Assembly rail	-2
?	906 612 40	Through clamp	-2	InternBDB: Wago 870-531 \| InternKon: 934 934 40 / 16
?	906 613 40	Cover plate	-2	InternKon: 934 934 40 / 17
?	515 213 40	Cable 1.0	-2
?	515 214 40	Cable 2.5	-2
?	655 675 40	Cable 6.0	-2
?	906 022 40	Cable 4.0	-2
?	270 873 40	Cable channel	-2
?	891 087 40	Prostat assy.	1
?	659 820 40	Data cable X27-PC	1	InternKon: 891 087 40 / 2
?	769 593 73	Switch cover fan	1	InternBDB: Sьtrak 78.05.01.004
?	769 594 73	Switch cover temperature	1	InternBDB: Sьtrak 78.05.01.003
?	769 595 73	Indicator light	2	InternBDB: Sьtrak 26.07.02.028 24 V
?	769 596 73	Control unit assy.	1	InternBDB: Sьtrak 60.01.40.098
?	440 151 99	Tab 1.5	-2
?	055 115 40	Tab 1.5 - 2.5	-2
?	697 269 73	Tab 4.0 - 6.0 yellow	-2
?	507 382 99	Bulb 2 W	-2
?	507 384 99	Bulb 3 W	-2
?	966 740	Socket	-2
?	966 975	Socket	-2
?	659 872 40	Data cable ECS /display - X27	1	InternKon: 919 428 40 / 2
?	906 612 40	Through clamp 2.5	60	InternBDB: Wago 870-531 \| InternKon: 934 934 40 / 16
?	906 613 40	Cover plate	2	InternBDB: Wago 870-573 \| InternKon: 934 934 40 / 17
?	906 630 40	Protective wire clip 2.5	10	InternBDB: Wago 870-537
?	898 668 40	Socket assy	1	InternBDB: TL \| InternKon: 927 582 40 / 1
?	659 871 40	Connection cable assy	1	InternKon: 934 934 40 / 8
?	907 827 40	Breaker 16A	2	InternBDB: ABB s 201-K16 \| InternKon: 933 341 40 / 1
?	794 380 73	Lamp	1	InternBDB: Hella 2AB 004 532-031
?	794 381 73	Bulb	1	InternBDB: Hella 2GP 002 067-241
?	946 226 40	Switch plate (3 grease pumps)	1	InternKon: 944 993 40 / 1
?	324 591 40	Turn switch	2	InternBDB: Merit 20 03 20 \| InternKon: 944 993 40 / 17
?	270 441 40	Socket	2	InternBDB: 1 114 320 JURO \| InternKon: 944 722 40 / 19
?	592 188 40	Socket	2	InternBDB: 16A 220V Schuko/Peha \| InternKon: 944 722 40 / 20
?	940 047 40	Alarm transmitter with cap	1	InternBDB: 31 801 002 88dB Lumitas \| InternKon: 944 722 40 / 21
?	320 976 99	Bolt	4	InternBDB: M4x20/84

Komatsu PC5500-6E S/N 15060 parts catalog PDF

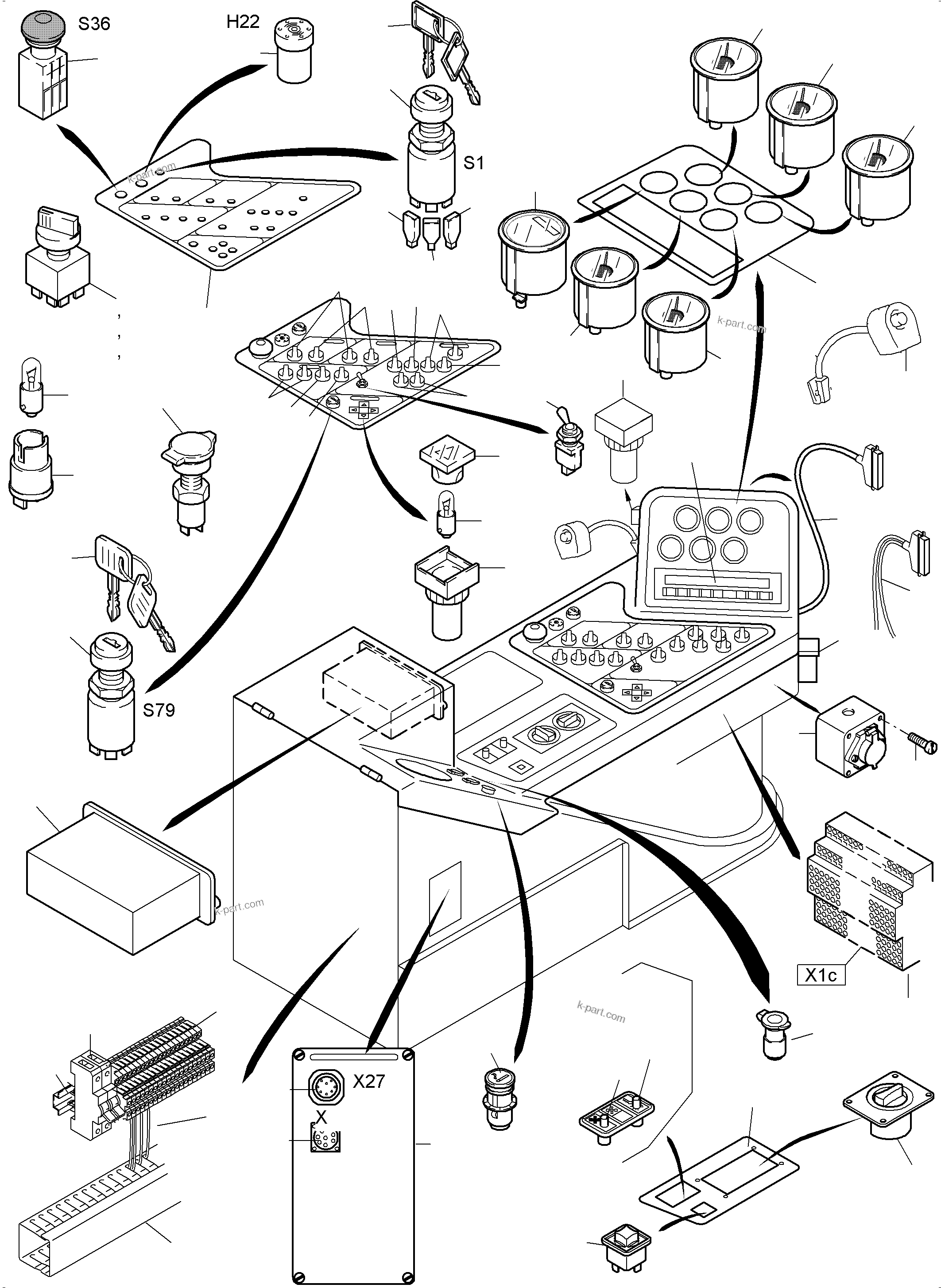

OPERATION PANEL (715-1922d) in PC5500-6E S/N 15060. Diagram image and parts list.
