CABIN FRONT PLATFORM | PC5500-6E S/N 15060 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

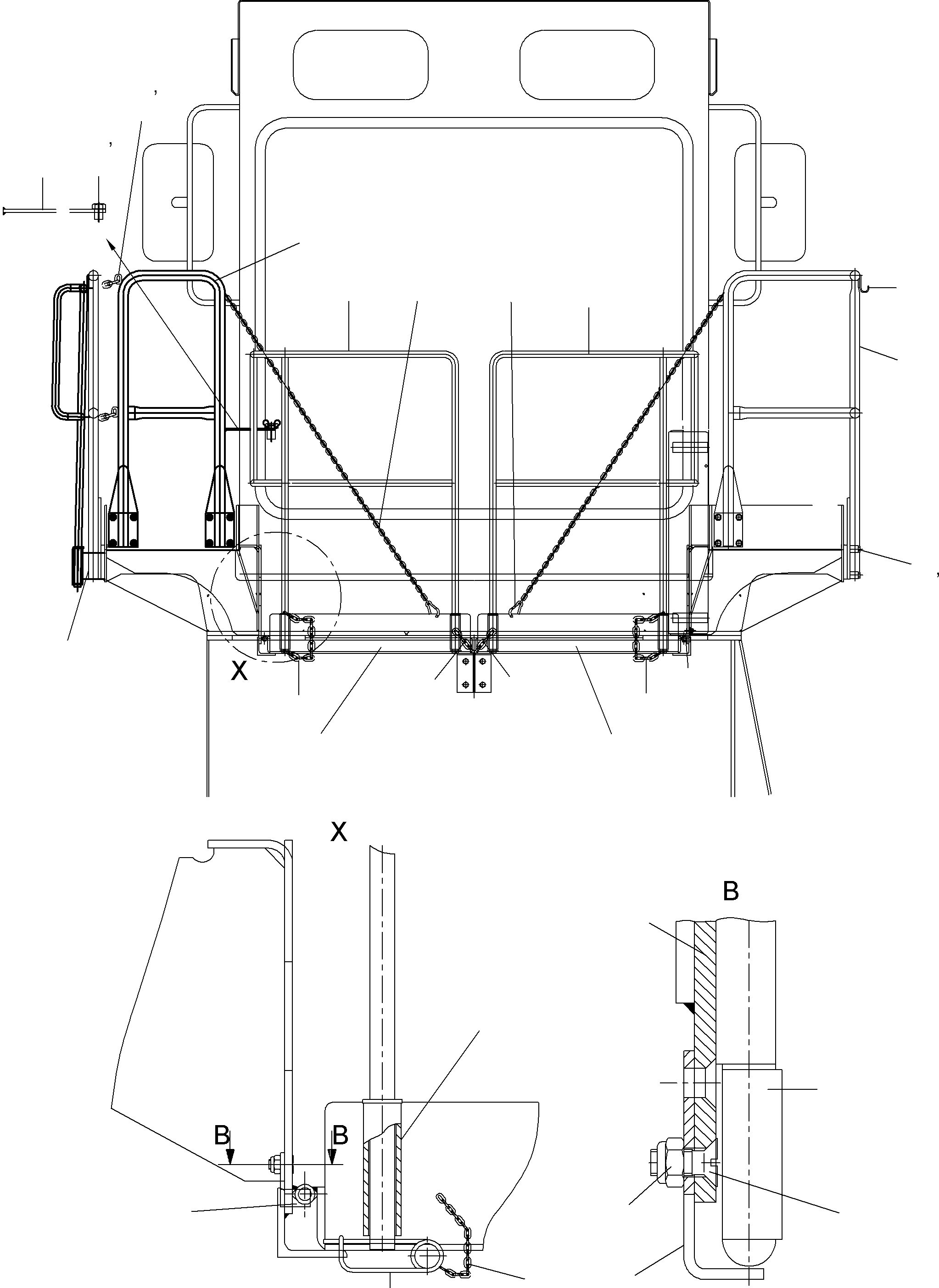

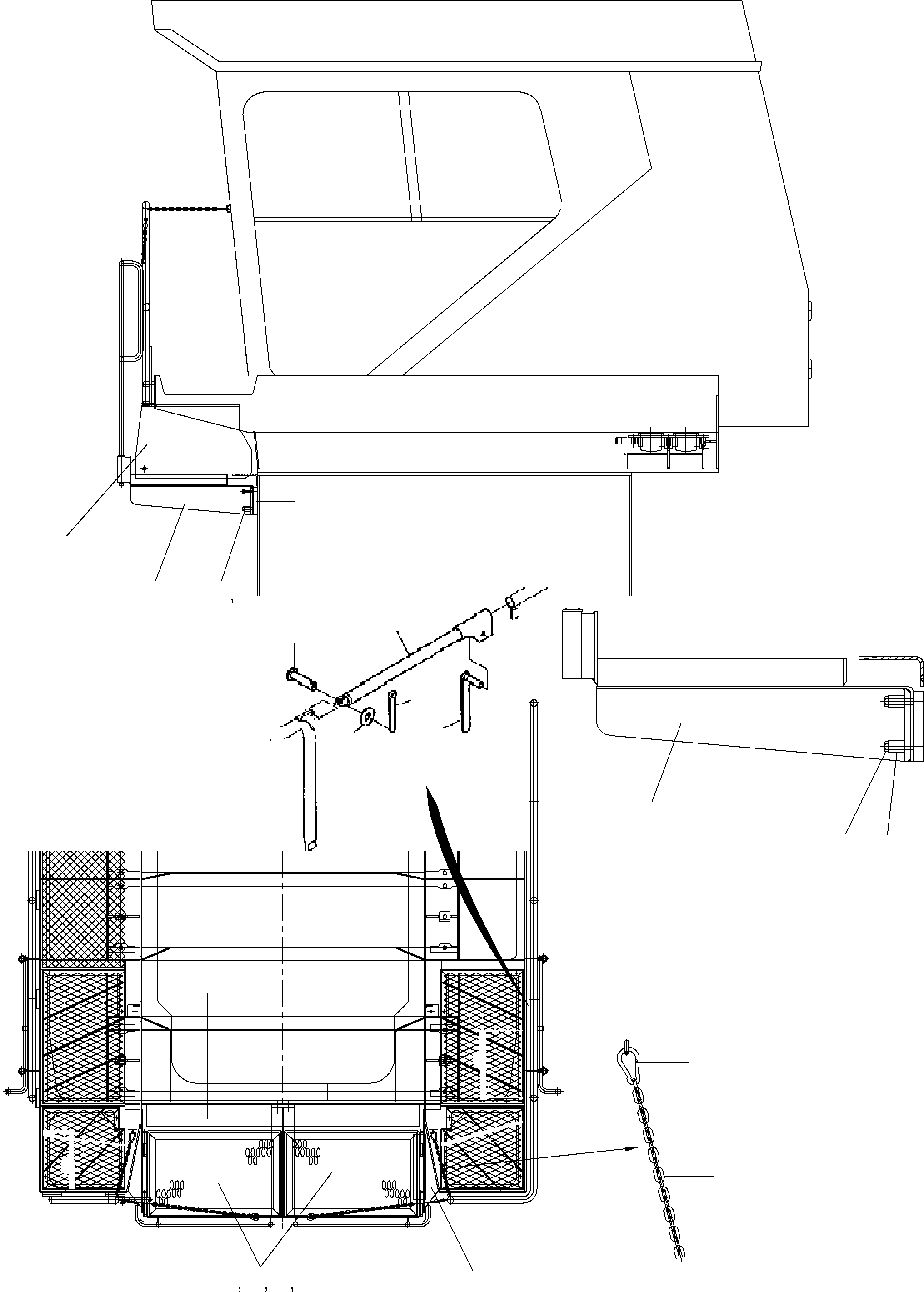

Diagram image 1 of 2

PC5500-6E S/N 15060

01 02 03 04 05 08 09 12 12 13 16 17 19 21 21 25 25 26 26 26 26 26 30 32 33 35 36 37 43 44 46

PC5500-6E S/N 15060

06 07 07 09 10 14 14 15 20 21 25 31 31 34 34 40 41 50 51 52 53 54 6

#	Part Number	Partname	Quantity	Options
01	928 220 40	Support	1	InternKon: 936 835 40 / 1
02	928 225 40	Support	1	InternKon: 936 835 40 / 2
03	928 230 40	Rail	1	InternKon: 936 835 40 / 3
04	928 235 40	Rail	1	InternKon: 936 835 40 / 4
05	891 993 40	Connector plate	4	InternKon: 936 835 40 / 5
06	936 836 40	Plate	1	InternKon: 936 835 40 / 6
07	936 838 40	Console	1	InternKon: 936 835 40 / 7
08	890 708 40	Holding device	4	InternKon: 936 835 40 / 8
09	928 243 40	Foot board	1	InternKon: 936 835 40 / 9
10	928 242 40	Foot board	1	InternKon: 936 835 40 / 10
12	890 710 40	Retainer	1	InternKon: 936 835 40 / 12
13	890 712 40	Retainer	1	InternKon: 936 835 40 / 13
14	883 972 40	Thread plate	1	InternKon: 936 835 40 / 14
15	317 319 40	Threaded block	8	InternKon: 936 835 40 / 15
16	928 237 40	Hook	2	InternKon: 936 835 40 / 16
17	928 246 40	Shackle	2	InternKon: 936 835 40 / 17
19	440 556 40	Band roller with grease nipple	4	InternBDB: 1033 U11/20K 150MM \| InternKon: 936 835 40 / 19
20	270 195 40	Grating	2	InternBDB: 2X40X480X 750 ST VERZ \| InternKon: 936 835 40 / 20
21	472 511 99	Chain	-2	InternBDB: 3- 5X 18,5 BK RST35-2K DIN 00766 \| InternKon: 936 835 40 / 21
25	341 271 99	Trigger snap	6	InternBDB: C 70 ST A2E DIN 05299 \| InternKon: 936 835 40 / 25
26	472 688 99	Chain	-2	InternBDB: 2 ST DIN 05686 \| InternKon: 936 835 40 / 26
30	001 644 98	Locking spring	4	InternBDB: 4BX120 FEDST B WN 01073699 \| InternKon: 936 835 40 / 30
31	510 744 98	Resilient sleeve	4	InternBDB: 13/25X 32 42CRMO4-TQ+T WN 34194840 \| InternKon: 936 835 40 / 31
32	307 804 99	Bolt	2	InternBDB: M12X30 8.8 DIN 00933 \| InternKon: 936 835 40 / 32
33	318 395 99	Bolt	4	InternBDB: M10 X 25 4.8 B2E DIN 00963 \| InternKon: 936 835 40 / 33
34	308 437 99	Bolt	4	InternBDB: M12X 65 10.9 DIN 00931 \| InternKon: 936 835 40 / 34
35	507 037 98	Nut	4	InternBDB: M 10 8 DIN 00985 \| InternKon: 936 835 40 / 35
36	936 841 40	Rail, incl. Pos. 50-54	1	InternKon: 936 835 40 / 36
37	928 248 40	Rail	1	InternKon: 936 835 40 / 37
40	317 318 40	Wing nut, plastic	8	InternKon: 936 835 40 / 40
41	502 354 98	Bolt	8	InternBDB: M 8 X 40 4.8 B2E DIN 00963 \| InternKon: 936 835 40 / 41
43	308 605 99	Bolt	24	InternBDB: M12X55 8.8 DIN 00931 \| InternKon: 936 835 40 / 43
44	510 744 98	Resilient sleeve	24	InternBDB: 13 /25X 32 42CRMO4-TQ+T WN 34194840 \| InternKon: 936 835 40 / 44
46	517 118 98	Lock washer	2	InternBDB: 12 STZN WN 65593840 \| InternKon: 936 835 40 / 46
50	930 338 40	Rail pipe	1	InternKon: 936 841 40 / 2
51	930 031 40	Catch	1	InternKon: 936 841 40 / 3
52	517 697 98	Pin	1	InternBDB: B12H11X 35X 29,5 ST DIN 01444 \| InternKon: 936 841 40 / 4
53	340 605 99	Disc	1	InternBDB: 12 ST DIN 01440 \| InternKon: 936 841 40 / 5
54	342 045 99	Cotter pin	1	InternBDB: 3 X 20 ST33 DIN 00094 \| InternKon: 936 841 40 / 6
