PC5500-6E S/N 15060

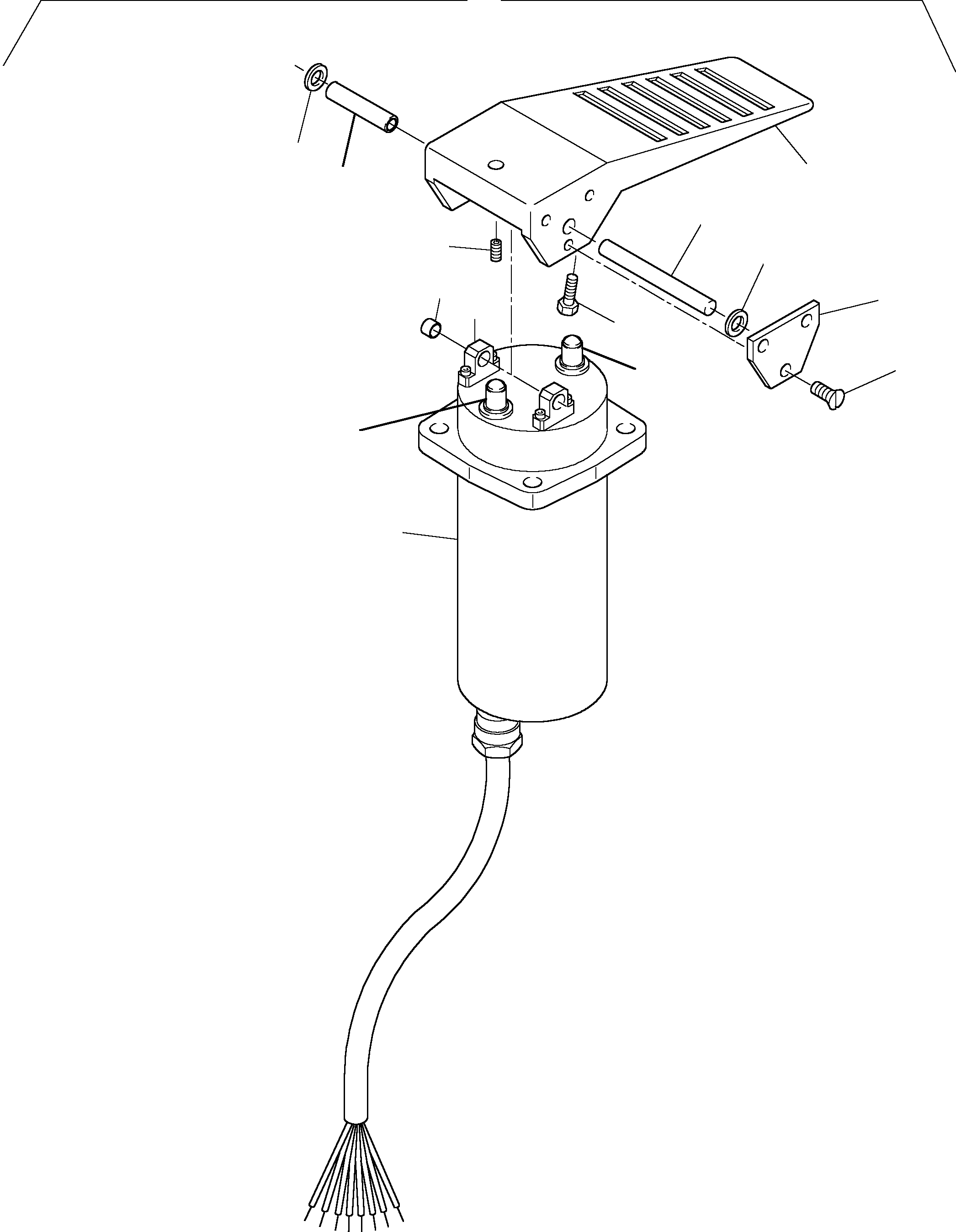

Komatsu parts book diagram for PC5500-6E S/N 15060: MANIPULATOR

01 02 03 04 06 07 07 08 09 10 15 16 17 18 19

	#	Part Number	Partname	Quantity	Options	Reference
	01	903 402 40	Manipulator assy.	1	InternBDB: FSG 3522 S 10/1 TL
	02	767 579 73	Axle	1	InternBDB: 3522 S 10-00:14 \| InternKon: / 1
	03	767 580 73	Pedal	1	InternBDB: 3522 S 10-00:10000 \| InternKon: / 2
	04	767 581 73	Coating	2	InternBDB: 3522 S 10-00:07 \| InternKon: / 3
	06	767 582 73	Coating	1	InternBDB: 3495 Z 60-00:20A1 \| InternKon: / 5
	07	767 576 73	Washer	2	InternBDB: 0062 W 01-00:112A \| InternKon: / 6
	08	325 131 99	Threaded pin	1	InternBDB: M6x12 / 913 \| InternKon: / 7
	09	307 703 99	Bolt	1	InternBDB: M5x12 / 933 \| InternKon: / 8
	10	514 481 98	Bolt	6	InternBDB: M5x8 / 963 \| InternKon: / 9
	15	767 585 73	Bearing support assy.	2	InternBDB: 3522 S 10.300 \| InternKon: / 10
	16	767 578 73	Friction bearing	2	InternBDB: EL101-0003
	17	768 437 73	Pipe	1	InternBDB: 3522 S 10-00:11 \| InternKon: / 11
	18	768 438 73	Hoist Transmitter X-Axis	1	InternBDB: 3522 S 10:00F6X \| InternKon: / 12
	19	770 720 73	Hoist Transmitter	1	InternBDB: 3495E01-001.027

Komatsu PC5500-6E S/N 15060 parts catalog PDF

MANIPULATOR (991-0121b) in PC5500-6E S/N 15060. Diagram image and parts list.
