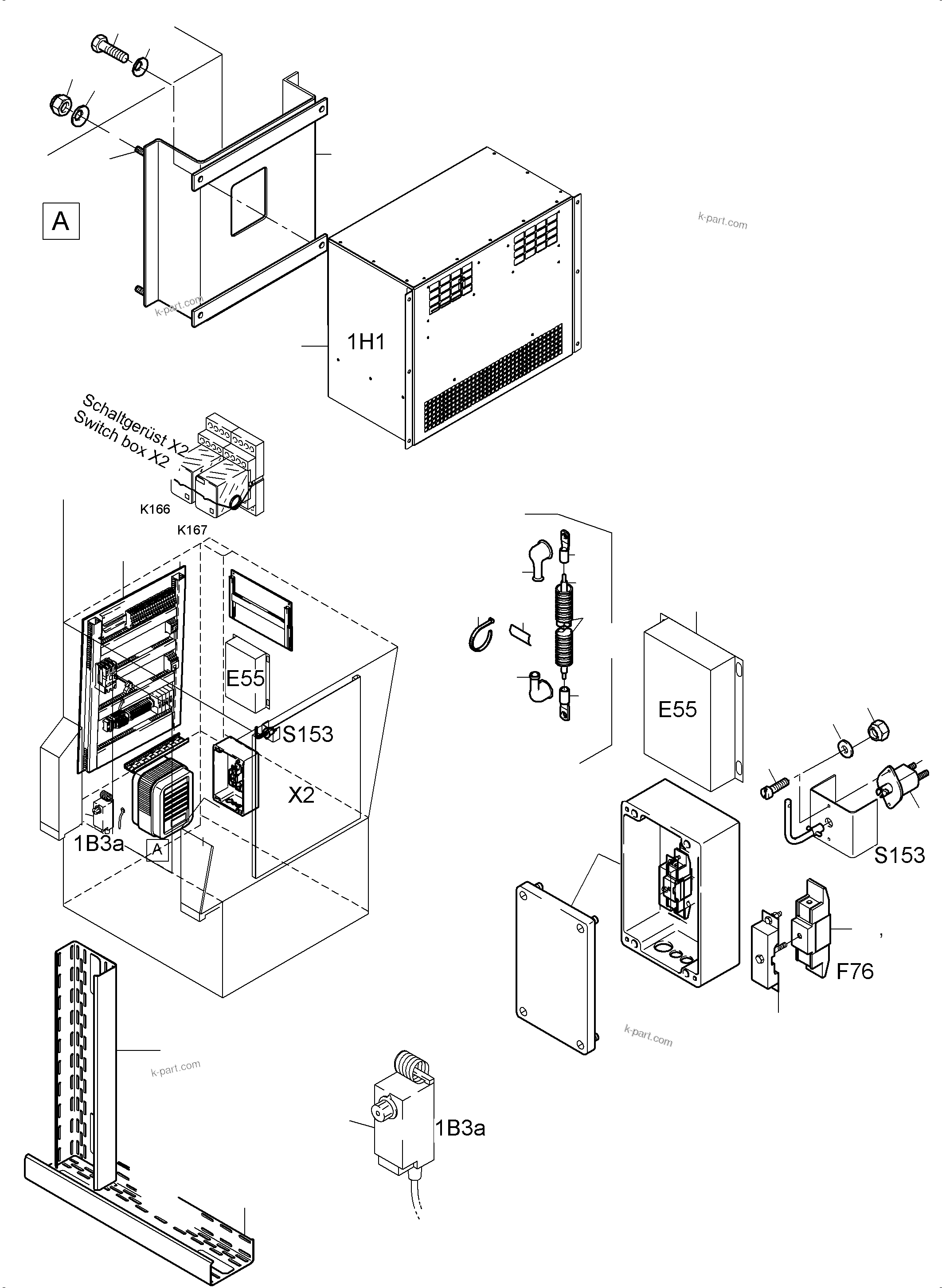

ELECTRIC PARTS TEMPERATURE CONDITIONING - CAB SUPPORT | PC5500-6 S/N 15056

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
?		Switch framing 1X1	1	InternBDB: Gerьst 910 738 40 und Teilen aus 933 983 40 \| InternKon: 933 983 40 / 10	515-2515g
?		Space heater, s.	1	InternBDB: Greentop 3,5KW230V TL 944 710 40 \| InternKon: 933 983 40 / 8	991-0743
?	945 639 40	Bracket	1	InternKon: 945 642 40 / 1
?	510 213 98	Thread pin	4	InternBDB: PM12X30 4.8 DIN 32500 \| InternKon: 945 642 40 / 2
?	340 111 99	Washer	4	InternBDB: A 14 /7989 \| InternKon: 945 642 40 / 3
?	334 600 99	Nut	4	InternBDB: M 12 /DIN 00985 \| InternKon: 945 642 40 / 4
?	307 777 99	Bolt	4	InternBDB: M10x25 /933 \| InternKon: 945 642 40 / 5
?	517 122 98	Lock washer	4	InternBDB: 10 /WN 65593840 \| InternKon: 945 642 40 / 6
?	896 781 40	Battery charger	1	InternBDB: 24/100/230 04-10-20000 Mastervolt \| InternKon: 926 511 40 / 1
?	159 984 40	Battery switch	1	InternBDB: 0341.002.003 \| InternKon: 933 983 40 / 14
?	321 014 99	Bolt	4	InternBDB: M6x16 /84
?	346 499 99	Lock washer	4	InternBDB: 6 /128
?	507 025 98	Nut	10	InternBDB: M 6 /985
?	440 320 40	Ambient thermostat	1	InternBDB: A19 BS 1 BRC-9252 Jons Pen \| InternKon: 933 983 40 / 7
?	635 368 40	Fuse 125 A	1	InternBDB: Siemens 3 NA 3132 \| InternKon: 901 317 40 / 1
?	635 369 40	Fuse base	1	InternBDB: Siemens 3 NH 3230 \| InternKon: 901 317 40 / 2
?	635 370 40	Cover	2	InternBDB: Siemens 3 NX 3106 \| InternKon: 901 317 40 / 3
?	255 032 40	Housing, empty	1	InternBDB: Bopla A 160 \| InternKon: 901 317 40 / 4
?	896 742 40	Cable channel 110	-2	InternBDB: RSU 110.3002304968
?	942 729 40	Harness-battery-battery charger	1	InternKon: 926 511 40 / 3
?	600 209 99	Cable lug 10-95	12	InternBDB: 10 - 95 E-CU GALSN DIN 46234 \| InternKon: 942 729 40 / 1
?	056 076 40	Protection cap	12	InternBDB: 2000 558000 \| InternKon: 942 729 40 / 2
?	907 180 40	Cable protection hose DN 23	-2	InternBDB: NW 23 PCLG-23B \| InternKon: 942 729 40 / 3
?	906 651 40	Battery cable	-2	InternBDB: 95,0MM2 SCHWARZ 099500SW \| InternKon: 942 729 40 / 4
?	256 514 40	Plate	8	InternBDB: 15X30X1,5 ALU \| InternKon: 942 729 40 / 5
?	056 292 40	Cable strap	8	InternBDB: TY 23 M \| InternKon: 942 729 40 / 6
?	907 697 40	Temperature sensor with cable	1	InternBDB: Mastervolt M15 mit AnschluЯkabel \| InternKon: 926 511 40 / 2
